Preparing For Commissioning; Inserting The Sim Card; Attaching Lte And Wi-Fi Antennas; Connect The Power Plug - schell SMART.SWS Kurzanleitung Zur Inbetriebnahme

Preparing for commissioning

Inserting the SIM card

4

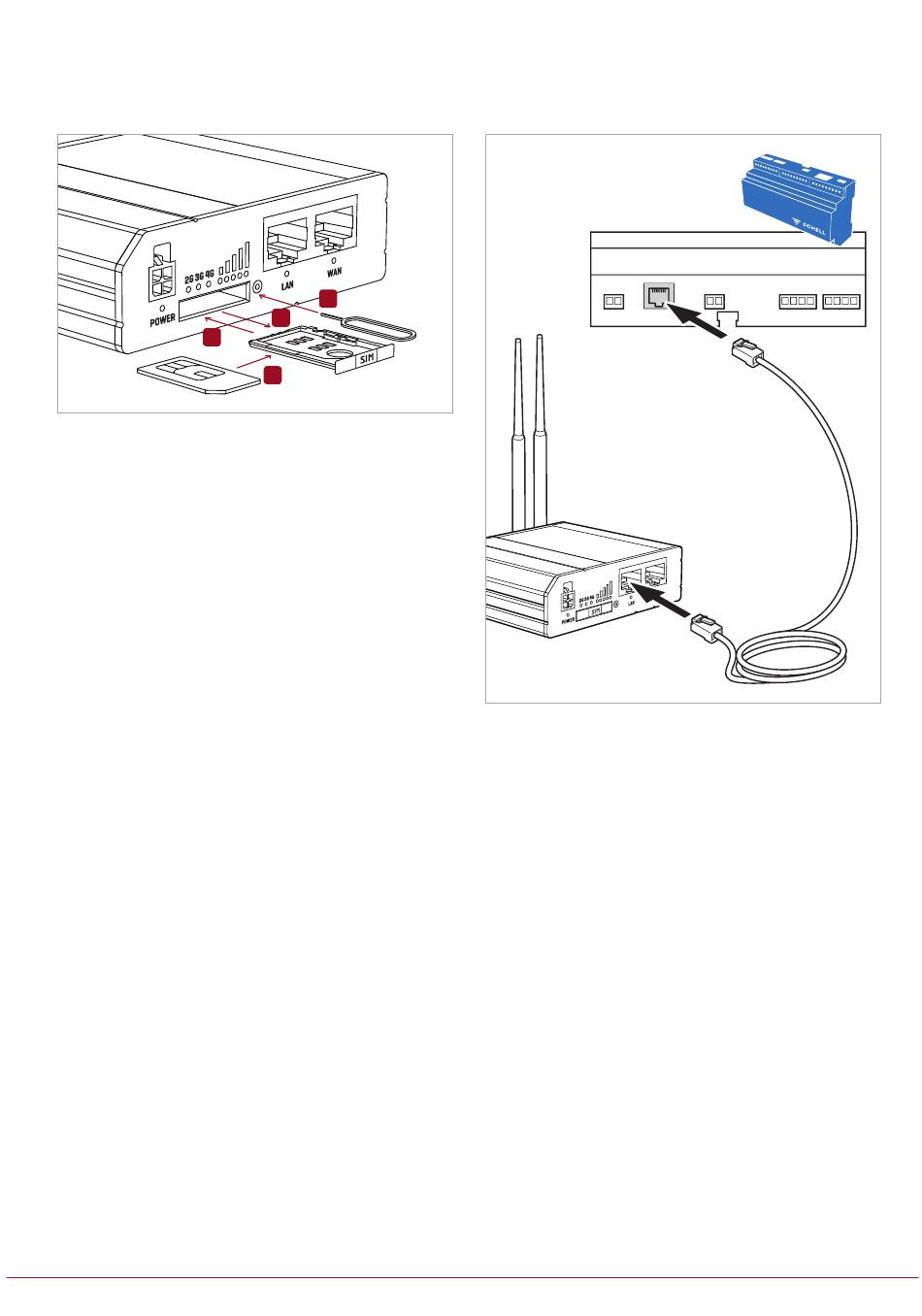

1. Use the pin to eject the SIM card holder.
2. Pull out the SIM card holder.
3. Insert your SIM card into the SIM card holder.
4. Push the SIM card holder back into the router.

Attaching LTE and Wi-Fi antennas

» Screw the three antennas supplied to the corre-
sponding ports (1), (3) and (4) (for details, see the
"Rear" figure on page 5).
Please note
Two antennas are for the mobile network (mobile),
one antenna is for the Wi-Fi network (Wi-Fi). The
antennas are marked accordingly.
Please note
The signal strength and status can be checked by
looking at the LED display on the front of the SWS
router.
If network coverage is not adequate, optional exter-
nal antennas can be ordered (# 00 558 00 99).

Connect the power plug

» Plug the power adapter connector into the socket
(1) on the router (for details, see the "Front" figure
on page 5).
» Then plug the adapter into a mains power socket.
1
2
3
- 36 -

Connecting to the SWS Server

» Plug the network cable into the LAN port (RJ45) on
the underside of the SWS Server.
» Plug the network cable into the LAN port on the
SMART.SWS Router.
