Function; Requirements; Connections; Front - schell SMART.SWS Kurzanleitung Zur Inbetriebnahme

Function

The SCHELL SMART.SWS Router is a compact industrial
LTE router for use in professional applications.
The router is equipped with a SIM card holder and sta-
tus LEDs for signal strength, and offers a simple way to
manage the network.
Antenna ports offer the option of attaching external
antennas and an easy way to find the best place for a
strong signal.

Requirements

• SCHELL SWS Water Management System
• Wireless reception for the mobile network at the
installation site
• 230 V network connection at the installation site
• SCHELL has activated the SWS Server so that it can
set up connections

Connections

Front

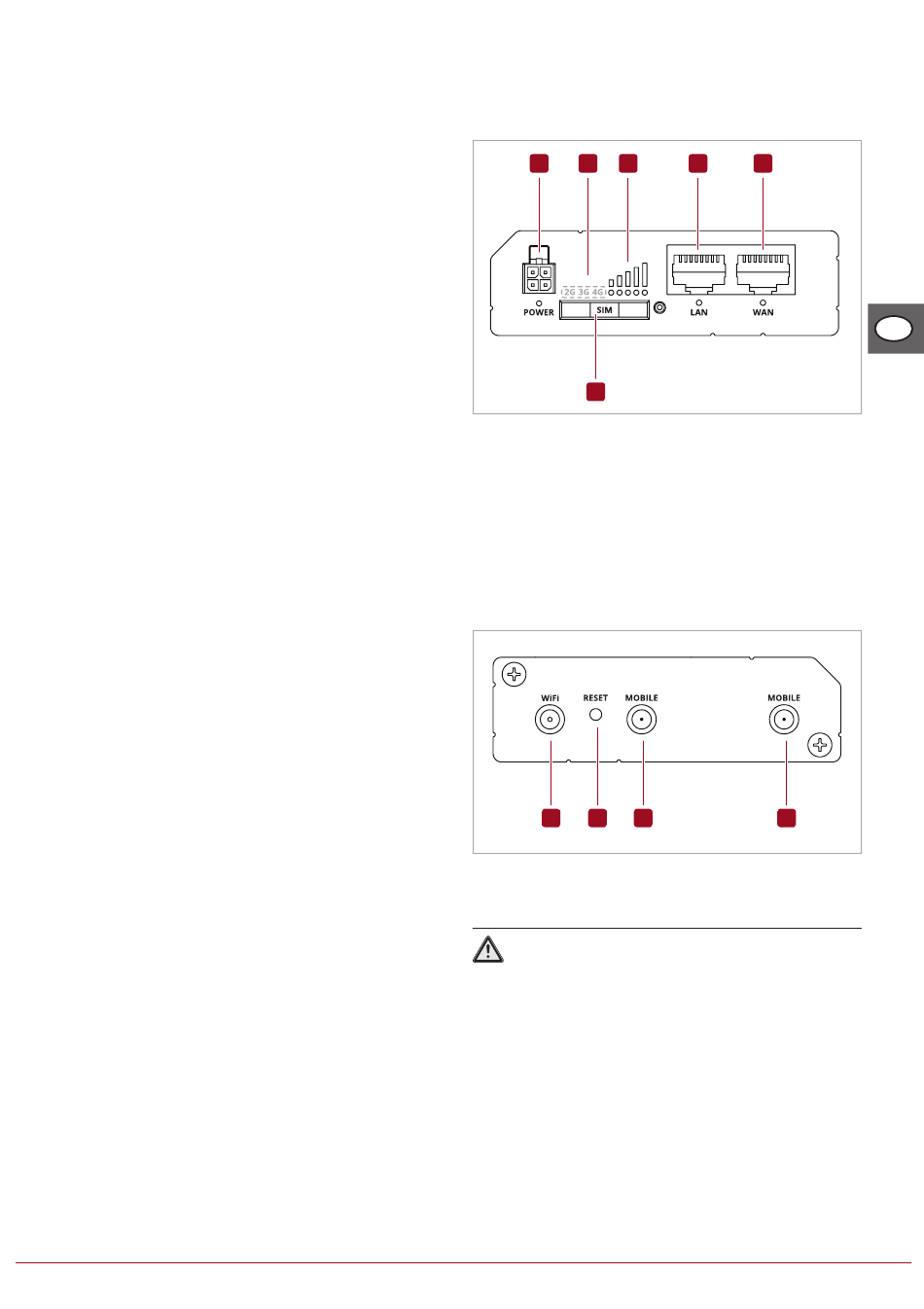

1 2
6
1. Power socket with LED indicator
2. Mobile network display
3. LEDs indicating mobile network signal strength
4. LAN port with LED indicator
5. WAN port with LED indicator
6. SIM card holder

Back

1 2
1. Wi-Fi antenna socket
2. Reset button
Important!
Do not press the reset button for longer than
5 s!
3. Mobile network antenna socket (main)
4. Mobile network antenna socket (aux)
