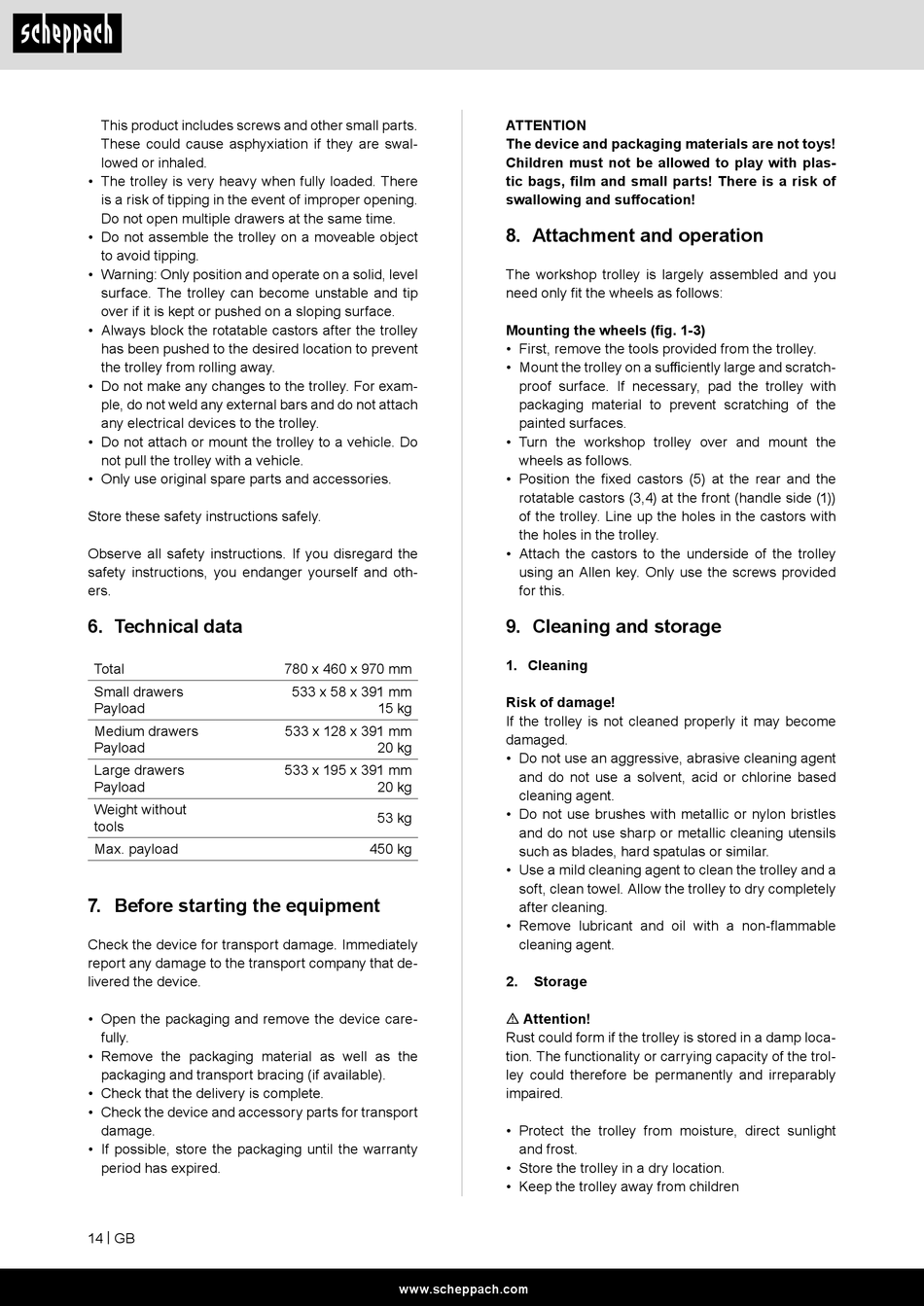

Scheppach TW1000BT Originalbetriebsanleitung Seite 14

This product includes screws and other small parts.
These could cause asphyxiation if they are swal-
lowed or inhaled.
• The trolley is very heavy when fully loaded. There
is a risk of tipping in the event of improper opening.
Do not open multiple drawers at the same time.
• Do not assemble the trolley on a moveable object
to avoid tipping.
• Warning: Only position and operate on a solid, level
surface. The trolley can become unstable and tip
over if it is kept or pushed on a sloping surface.
• Always block the rotatable castors after the trolley
has been pushed to the desired location to prevent
the trolley from rolling away.
• Do not make any changes to the trolley. For exam-
ple, do not weld any external bars and do not attach
any electrical devices to the trolley.
• Do not attach or mount the trolley to a vehicle. Do
not pull the trolley with a vehicle.
• Only use original spare parts and accessories.
Store these safety instructions safely.
Observe all safety instructions. If you disregard the
safety instructions, you endanger yourself and oth-
ers.
6. Technical data
Total
Small drawers
Payload
Medium drawers
Payload
Large drawers
Payload
Weight without
tools
Max. payload
7. Before starting the equipment
Check the device for transport damage. Immediately
report any damage to the transport company that de-
livered the device.
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
14 | GB
780 x 460 x 970 mm
533 x 58 x 391 mm
15 kg
533 x 128 x 391 mm
20 kg
533 x 195 x 391 mm
20 kg
53 kg
450 kg
www.scheppach.com
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
8. Attachment and operation
The workshop trolley is largely assembled and you
need only fit the wheels as follows:
Mounting the wheels (fig. 1-3)
• First, remove the tools provided from the trolley.
• Mount the trolley on a sufficiently large and scratch-
proof surface. If necessary, pad the trolley with
packaging material to prevent scratching of the
painted surfaces.
• Turn the workshop trolley over and mount the
wheels as follows.
• Position the fixed castors (5) at the rear and the
rotatable castors (3,4) at the front (handle side (1))
of the trolley. Line up the holes in the castors with
the holes in the trolley.
• Attach the castors to the underside of the trolley
using an Allen key. Only use the screws provided
for this.
9. Cleaning and storage
1. Cleaning
Risk of damage!
If the trolley is not cleaned properly it may become
damaged.
• Do not use an aggressive, abrasive cleaning agent
and do not use a solvent, acid or chlorine based
cleaning agent.
• Do not use brushes with metallic or nylon bristles
and do not use sharp or metallic cleaning utensils
such as blades, hard spatulas or similar.
• Use a mild cleaning agent to clean the trolley and a
soft, clean towel. Allow the trolley to dry completely
after cleaning.
• Remove lubricant and oil with a non-flammable
cleaning agent.
2. Storage
m Attention!
Rust could form if the trolley is stored in a damp loca-
tion. The functionality or carrying capacity of the trol-
ley could therefore be permanently and irreparably
impaired.
• Protect the trolley from moisture, direct sunlight
and frost.
• Store the trolley in a dry location.
• Keep the trolley away from children
