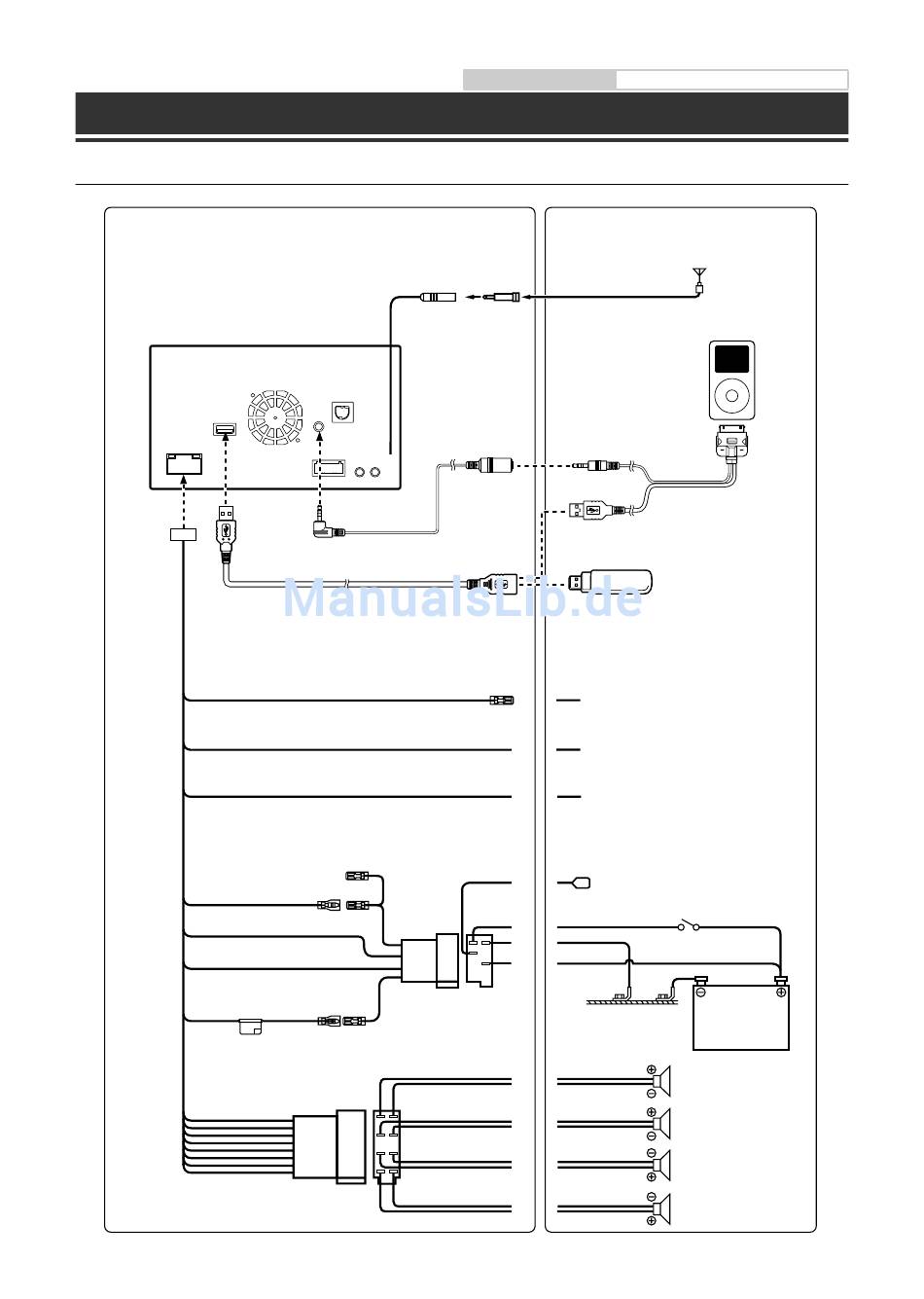

Connections

Connections 1/2
12
-EN
iPod VIDEO AV extension cable
(Sold separately) (KCU-461iV)
USB extension cable
(Included)
REMOTE TURN-ON
(Blue/White)
REVERSE
(Orange/White)
PARKING BRAKE
(Yellow/Blue)
IGNITION
(Red)
GND
(Black)
POWER ANT
(Blue)
BATTERY
(Yellow)
15A
Owner's manual
Connection kit KCU-461iV
(Sold separately)
USB Memory
(Sold separately)
To amplifier or equalizer
To plus side of the back lamp signal lead of the car
To the parking brake signal lead
To power antenna
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
Connections
Antenna
ISO Antenna Plug
iPod/iPhone
(Sold separately)
Ignition key
Battery
Rear left
Front left
Speakers
Front right
Rear right
