Inhaltszusammenfassung für DeLOCK 42022
Seite 1

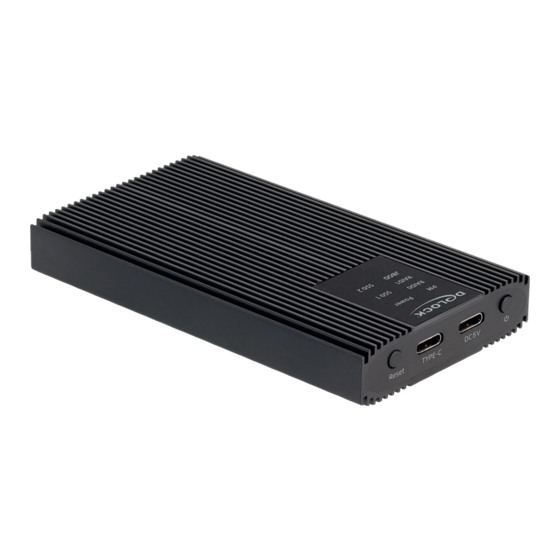

Manuale utente Bruksanvisning Manual de utilizare Használati utasítás Korisnički priručnik Εγχειρίδιο χρήστη USB 20 Gbps External Enclosure for 2 x M.2 NVMe SSD - tool free RAID mode table JBOD RAID 0 RAID 1 Product-No: 42022 User manual no: 42022-a www.delock.com...
Seite 2
English Power supply specification • Wall power supply • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A • Output: 5.0 V / 3.0 A / 15.0 W System requirements • Android 11.0 or above •...
Seite 3
English Hardware Installation Open the housing. To do this, press the button on the bottom. Now you plug your M.2 SSD into the slot. Fix the module with the help of the rubber nipple. RAID setting Note: If you use a new hard drive, please make sure that it is already formatted.
Seite 4
English Support Delock If you have further questions, please contact our customer support support@delock.de You can find current product information on our homepage: www.delock.com Final clause Information and data contained in this manual are subject to change without notice in advance. Errors and misprints excepted.
Seite 5
Deutsch Sicherheitshinweise • Produkt vor Feuchtigkeit schützen • Vermeiden Sie antistatische Aufladung beim Benutzen der Festplatte • Achten Sie darauf, dass die Festplatte am Gerät sehr heiß sein könnte. Hardwareinstallation Öffnen Sie das Gehäuse. Drücken Sie dazu den Knopf auf der Unterseite. Stecken Sie nun Ihre M.2 SSD in den Slot.
Seite 6
Français Instructions de sécurité • Protéger le produit contre l’humidité • Eviter l'électricité statique lorsque vous utilisez le DD. • Faites attention car le disque dur devient brûlant lorsqu’il est connecté à l’appareil. Installation matérielle Ouvrez le boîtier. Pour cela, appuyer sur le bouton en bas. Vous pouvez à...
Seite 7
Español Instrucciones de seguridad • Proteja el producto contra el polvo • Evite la electricidad estática cuando utilice el disco duro • Preste atención, ya que la unidad de disco duro puede calentarse cuando esté conectada al dispositivo. Hardware Instalación Abra la carcasa.
Seite 8
České Bezpečnostní pokyny • Chraňte produkt před vlhkostí • Při manipulaci s HDD se vyhněte antistatické elektřině • Dbejte na to, že když je HDD připojen k zařízení, může být horký. Instalace hardware Otevřte kryt PC. Provedete to stiskem tlačítka na spodní straně. Nyní...
Seite 9
Polsku Instrukcje bezpieczeństwa • Produkt należy zabezpieczyć przed wilgocią • Podczas używania dysku twardego należy unikać elektryczności statycznej • Podczas podłączania do urządzenia należy pamiętać, że dysk twardy może być gorący. Instalacja sprzętu Otwórz obudowę. Aby to zrobić docisnąć przycisk w dnie Podłącz dysk M.2 SSD do gniazda.
Seite 10
Italiano Istruzioni per la sicurezza • Proteggere il prodotto dall'umidità • Evitare l'elettricità anti-statica quando si utilizza l'HDD • Attenzione: l'HDD può essere caldo quando è collegato al dispositivo. Installazione dell'hardware Aprire l'alloggiamento. Per farlo, premere il pulsante sul fondo. Collegare l'SSD M.2 nello slot.
Seite 11
Svenska Säkerhetsinstruktioner • Skydda produkten mot fukt • Undvik antistatisk elektricitet när du använder hårddisken. • Tänk på att hårddisken kan bli het när den är ansluten till enheten. Hårdvaruinstallation Öppna höljet. För att göra detta, tryck in knappen på undersidan. Koppla in din M.2 SSD i facket.
Seite 12
Română Instrucţiuni de siguranţă • Protejaţi produsul împotriva umidităţii • Evitați electricitatea antistatică atunci când utilizați HDD-ul • Atenţie: hard diskul se poate încălzi atunci când este conectat la dispozitiv. Instalarea componentelor hardware Deschideţi carcasa. Pentru a face acest lucru, apăsați butonul din partea de jos. Acum puteţi conecta unitatea SSD M.2 la fantă.
Seite 13
Magyar Biztonsági óvintézkedések • Óvja a terméket a nedvességtől. • Kerülje az antisztatikus elektromosságot a HDD használatakor • Óvatosan járjon el, mivel a HDD működés közben felforrósodhat. Hardvertelepítés Nyissa ki a számítógépházat. Ehhez nyomja meg az alsó gombot. Csatlakoztassa az M.2 SSD-t a nyílásba. Rögzítse a modult a gumi menet segítségével.
Seite 14
Hrvatski Sigurnosne upute • Zaštitite proizvod od vlage • Izbjegavajte statički elektricitet kada koristite HDD pogon • Ne zaboravite da HDD može biti vruć kada je spojen na uređaj. Ugradnja hardvera Otvorite kućište. Pritom pritisnite gumb na dnu. Sada ukopčajte M.2 SSD u utor. Pričvrstite modul gumenim niplom.
Seite 15
ελληνικά Οδηγίες ασφάλειας • Προστατεύστε το προϊόν από την υγρασία • Αποφύγετε τον αντιστατικό ηλεκτρισμό κατά τη χρήση της HDD • Προσέχετε καθώς η HDD μπορεί να καίει όταν είναι συνδεδεμένη με τη συσκευή. Εγκατάσταση υλικού Ανοίξτε το περίβλημα. Για να το κάνετε αυτό, πατήστε το κουμπί στο κάτω μέρος. Τώρα...
Seite 16
ErP directive (2009/125/EC), LVD directive (2014/35/EU) and RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the EU-comission. The declaration of conformity can be downloaded here: https://www.delock.de/produkte/G_42022/merkmale.html WEEE-notice The WEEE (Waste Electrical and Electronic Equipment)-directive, which became effective as European law on February 13th 2003, resulted in an all out change in the disposal of disused electro devices.
