NV350 Instruction Manual
BHDB Single module in
series with CH1 of
a dual module
Note: Series connection of one NV350 unit to another NV350 unit is not permitted. Please contact technical sales for
further information.

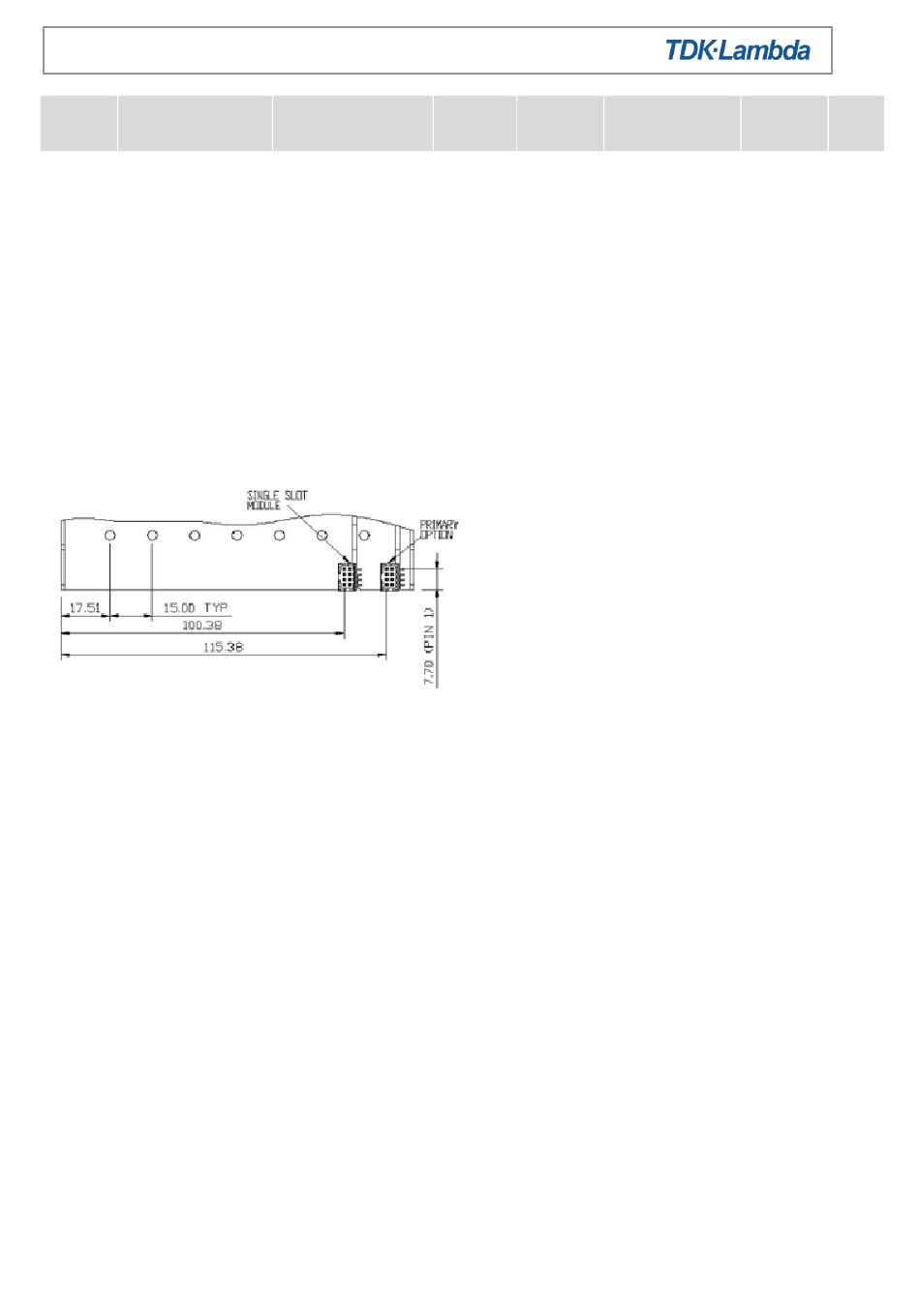

Module and primary options
Given below are some suitable connection systems – mating parts and crimp tools:
For the screw terminals
Ring Tags: Up to 50A. AMP PIDG terminals
Red: M3 36151, M4 320551, M5 130660
Blue: M3 320561, M4 320560, M5 130663
Yellow: M4 320568, M5 130167
Crimp tool: 169400 Die set 169404
Ring Tags: 50A and over AMP AMPOWER III
M5 (8 AWG) 719538-2 (6 AWG) 719551-1
Terminals with crimp tool: 708777-4
24 to 31, 48 to 56 2
Page 22 of 30
2 24 to 31 48 to 56 -
17158 issue 34, October 2022
