ASSEMBLY OF THE FRAME

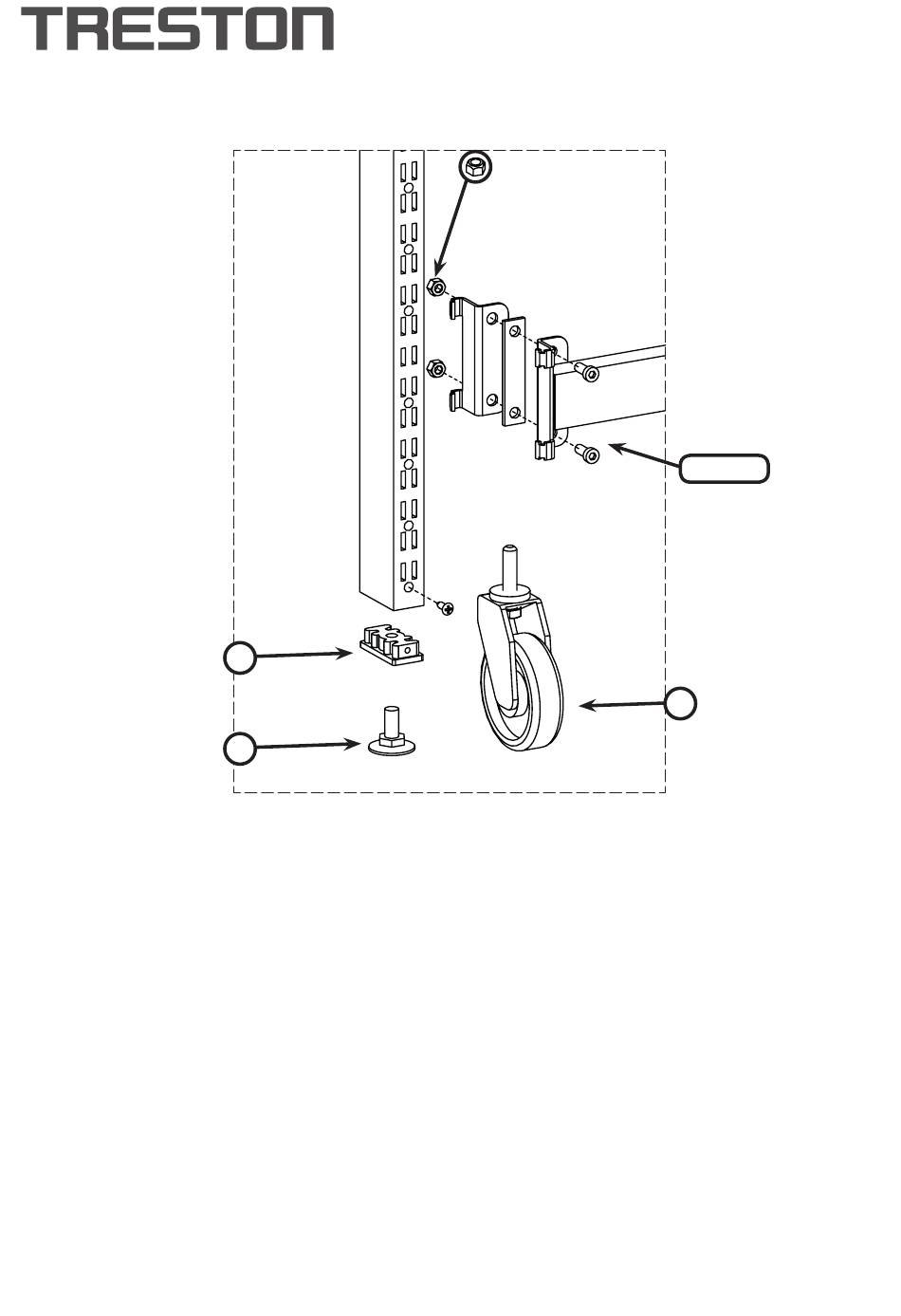

Fix the plastic inner clamp B to upper end of the adjustable frame A. Attach the aluminum inner clamp C and the ad-
justment scres D or the wheel E to lower and of the adjustable frame. Make sure that the wheel is properly fastened by
locking the inner clamp to the adjustable frame with plate screw.
Use the spacer bar F tojoin the adjustable frames A. Assemble the depth coursed spacer bars so, that they alternate side
to side the adjustable frame. The upper spacer bars can be replaced with horizontal tubes if needed. In that case we
recommend tha the joints are secured with screws.
MONTAGE DES RAHMENS
Die Kunstoffklemme B am oberen Ende des Rasterrohrs A befestigen. Die Aluminiumklemme C und die Stellschraube D
oder die Rolle E am unteren Ende des Rasterrohrs befestigen. Durch festes Anziehen der Scheibenschraube wird die
Innenklemme im Rasterrohr arretiert und der feste Sitz der Rolle gewährleistet.
Die Rasterrohre A mittels der Abstandhalter F verbinden. Die Tiefenabstandhalter abwechselnd an beiden Seiten des
Rasterrohrs montieren. Die oberen Abstandhalter können bei Bedarf durch horizontale Rohre ersetzt werden. In diesem
Fall empiehlt es sich, die Verbindungen mit Schrauben zu sichern.
C
D
ASSEMBLY INSTRUCTION
M8 x 30
E
900265
2017-03-03
15 (36)
