9

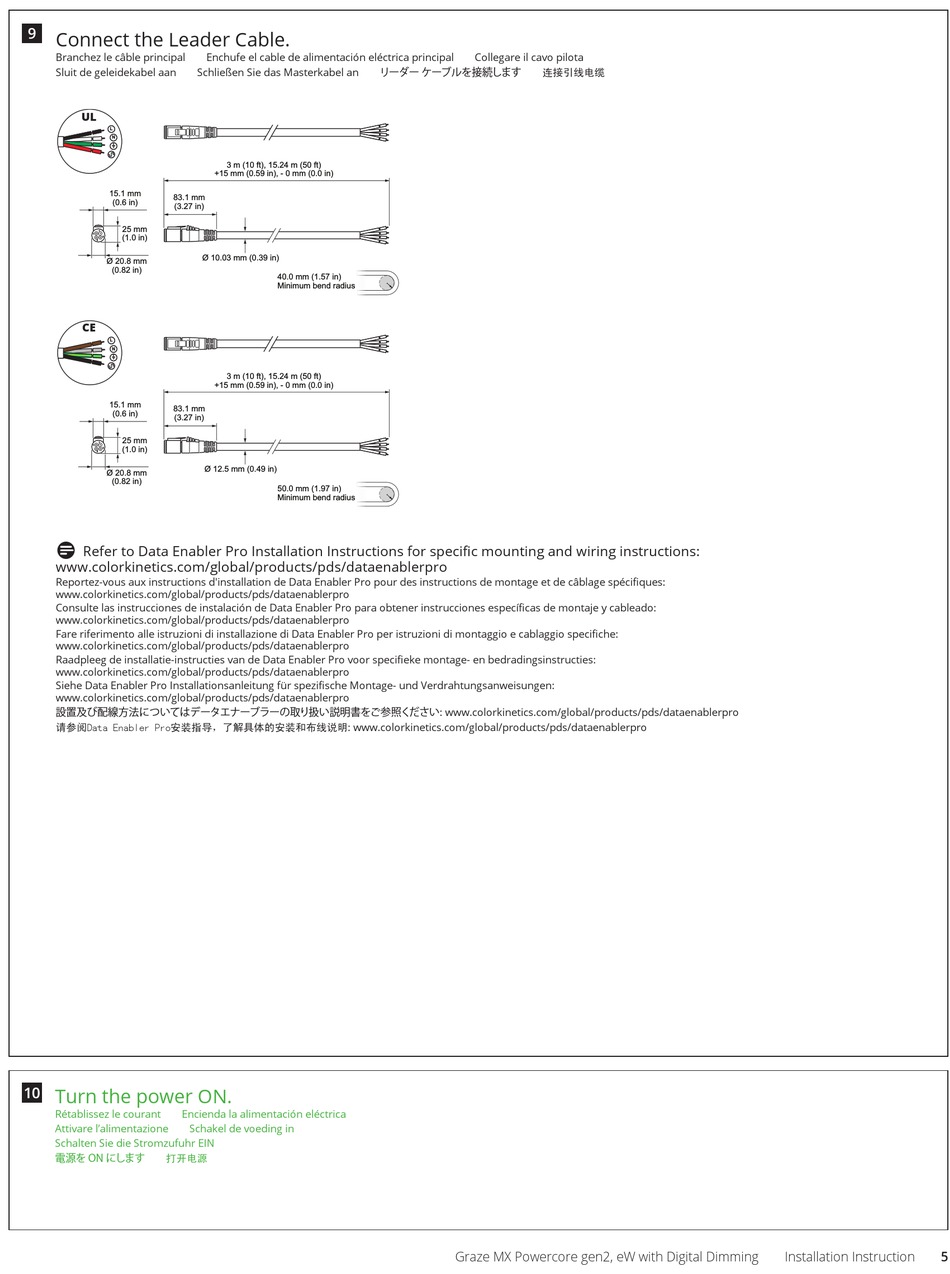

Connect the Leader Cable.
Branchez le câble principal Enchufe el cable de alimentación eléctrica principal Collegare il cavo pilota
Sluit de geleidekabel aan Schließen Sie das Masterkabel an リーダー ケーブルを接続します 连接引线电缆
UL
L
N
15.1 mm
83.1 mm
(0.6 in)
(3.27 in)
25 mm
1
(1.0 in)
3
2
Ø 10.03 mm (0.39 in)
Ø 20.8 mm
(0.82 in)
CE
L
N
15.1 mm
83.1 mm
(0.6 in)
(3.27 in)
25 mm
1
(1.0 in)
3
2
Ø 12.5 mm (0.49 in)
Ø 20.8 mm
(0.82 in)
D
Refer to Data Enabler Pro Installation Instructions for specific mounting and wiring instructions:
www.colorkinetics.com/global/products/pds/dataenablerpro
Reportez-vous aux instructions d'installation de Data Enabler Pro pour des instructions de montage et de câblage spécifiques:
www.colorkinetics.com/global/products/pds/dataenablerpro
Consulte las instrucciones de instalación de Data Enabler Pro para obtener instrucciones específicas de montaje y cableado:
www.colorkinetics.com/global/products/pds/dataenablerpro
Fare riferimento alle istruzioni di installazione di Data Enabler Pro per istruzioni di montaggio e cablaggio specifiche:
www.colorkinetics.com/global/products/pds/dataenablerpro
Raadpleeg de installatie-instructies van de Data Enabler Pro voor specifieke montage- en bedradingsinstructies:
www.colorkinetics.com/global/products/pds/dataenablerpro
Siehe Data Enabler Pro Installationsanleitung für spezifische Montage- und Verdrahtungsanweisungen:
www.colorkinetics.com/global/products/pds/dataenablerpro
設置及び配線方法についてはデータエナーブラーの取り扱い説明書をご参照ください: www.colorkinetics.com/global/products/pds/dataenablerpro
请参阅Data Enabler Pro安装指导，了解具体的安装和布线说明: www.colorkinetics.com/global/products/pds/dataenablerpro
10
Turn the power ON.
Rétablissez le courant Encienda la alimentación eléctrica
Attivare l'alimentazione Schakel de voeding in
Schalten Sie die Stromzufuhr EIN
電源を ON にします 打开电源
3 m (10 ft), 15.24 m (50 ft)
+15 mm (0.59 in), - 0 mm (0.0 in)
40.0 mm (1.57 in)
Minimum bend radius
3 m (10 ft), 15.24 m (50 ft)
+15 mm (0.59 in), - 0 mm (0.0 in)
50.0 mm (1.97 in)
Minimum bend radius
Graze MX Powercore gen2, eW with Digital Dimming Installation Instruction 5
