STEP 11: Install Aluminum Platforms

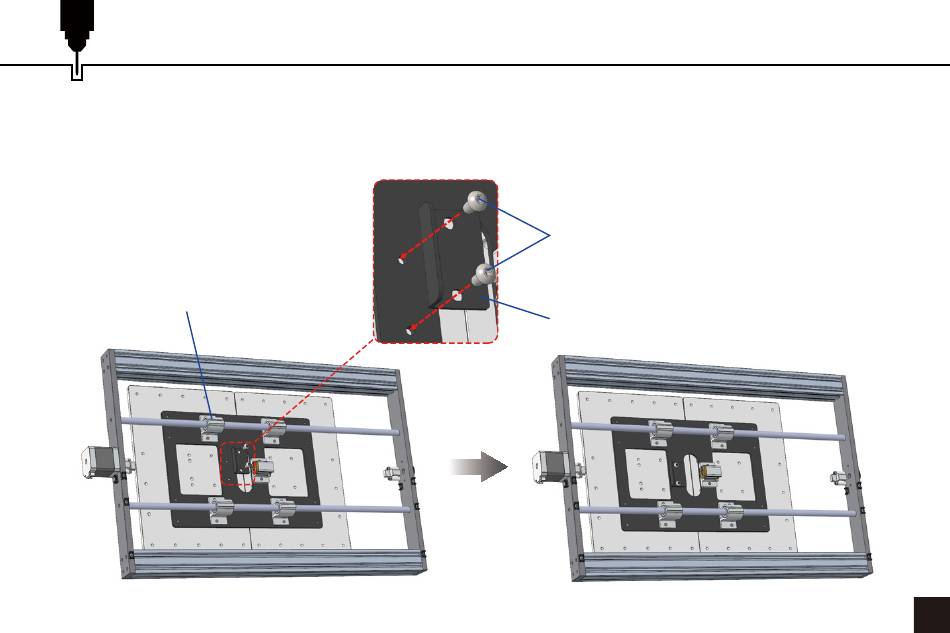

6. Insert (2) M5×5 screws through the holes in the limit switch trigger sheet metal parts. Line them up
with the corresponding threaded holes in the sheet metal connectors. Screw them into the threaded
holes and tighten them securely.
Sheet Metal Connector
(2) M5×5 Round Head Screw
Y-axis Limit Switch
Triggered Sheet Metal
41
