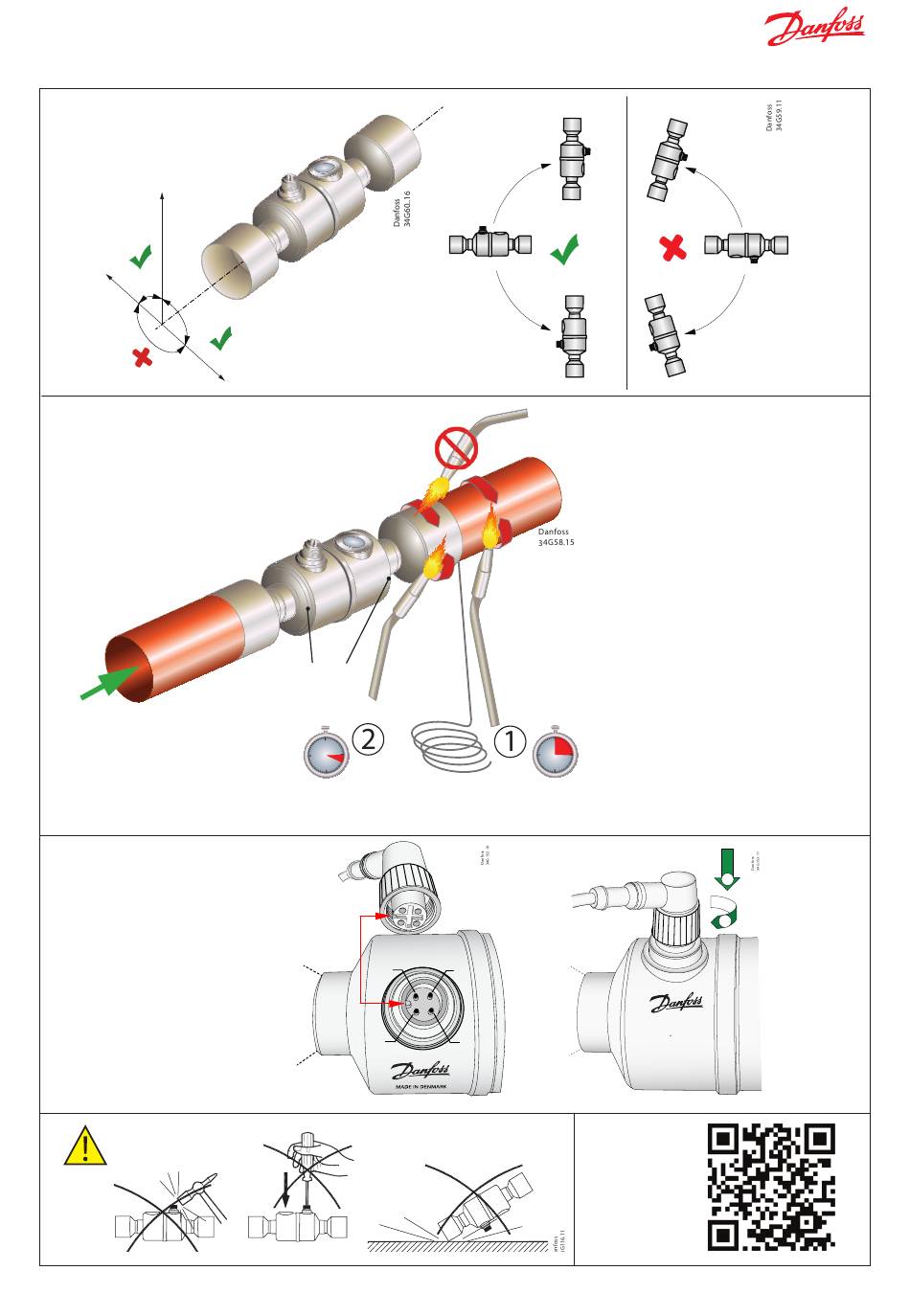

Mounting
-90°
+90°
Brazing
N
2
N
gas from opposite
2
site of soldering point.
M12 Connection
Motor coil resistance check.
Coil A = Coil B = 10 Ω (20 °C
© Danfoss | DCS (sw) | 2017.09
Max. 150 °C
Min.
Max.
5 % Ag
15 sec.
B1
B2
/ 68 °F)
Max.
30 sec.
A2
A1
Installation
video
Recommendation
ETS 12C - ETS 24C
Solder nozzle 2 - 4 mm
1
/
1
(
in. -
15
ETS 25C - ETS 50C - ETS 100C
Solder nozzle 6 - 9 mm
1
/
3
/
(
in. -
4
1
2
MADE IN DENMARK
Colibri® Electric
Expansion valve
ETS XXXC
N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig
-40/+70°C / -40/+158°F
034GXXXX
DKRCC.PI.VD1.F5.ML | 2
/
