8.

Tapping attachment order no. 35805

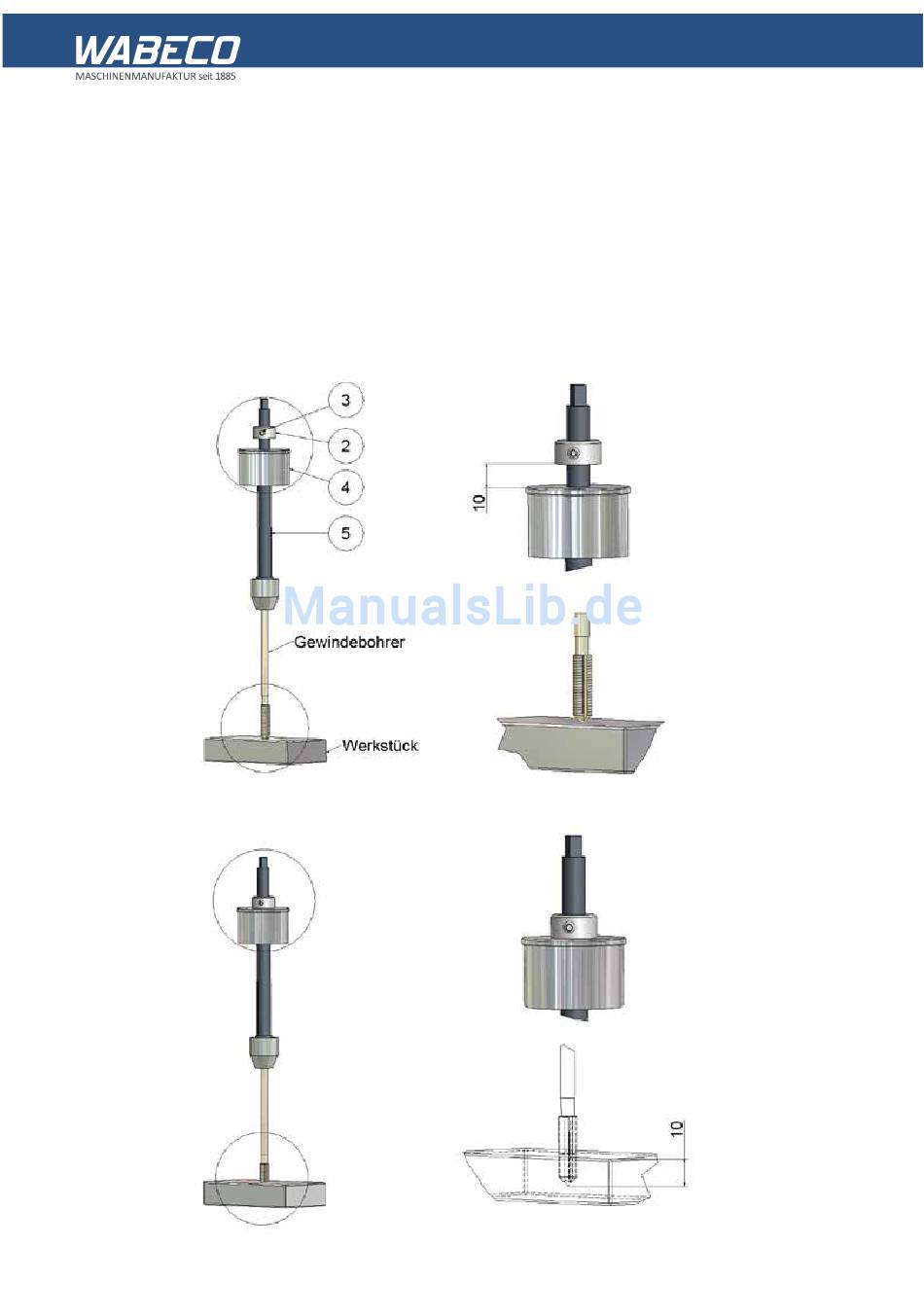

8.1 Handling
Lower the machine support (9) of the drill stand respectively drill/milling stand with clamped tapping attachment (2 - 5)
until the workpiece to be drilled. The thread depth can be adjusted exactly by means of the adjusting ring (2) (Picture 1).
Cut the thread with the help of the adjustable tap wrench. If the ring (2) arrives on the receptacle (4) (Picture 2), the
desired thread depth is reached.
Picture 1
In this picture the collar is prepared for a thread length of 10 mm.
Picture 2
