Drilling stands/Milling stands BF1240 | BF1242 | BF1243 | BF1244

4.1

Version

Solid steel column
500
mm, hexagonal steel bracket
No. 24400
without rotary table
No. 24404
with rotary table Ø 180 mm
Solid steel column
500
mm, hexagonal steel bracket
No. 24401
without rotary table
No. 24408
with rotary table Ø 180 mm
Solid steel column
750
mm, hexagonal steel bracket
No. 24500
without rotary table
No. 24504
with rotary table Ø 180 mm
Solid steel column
1000
mm, hexagonal steel bracket
No. 24454
without rotary table
No. 24457
with rotary table Ø 180 mm
4.2

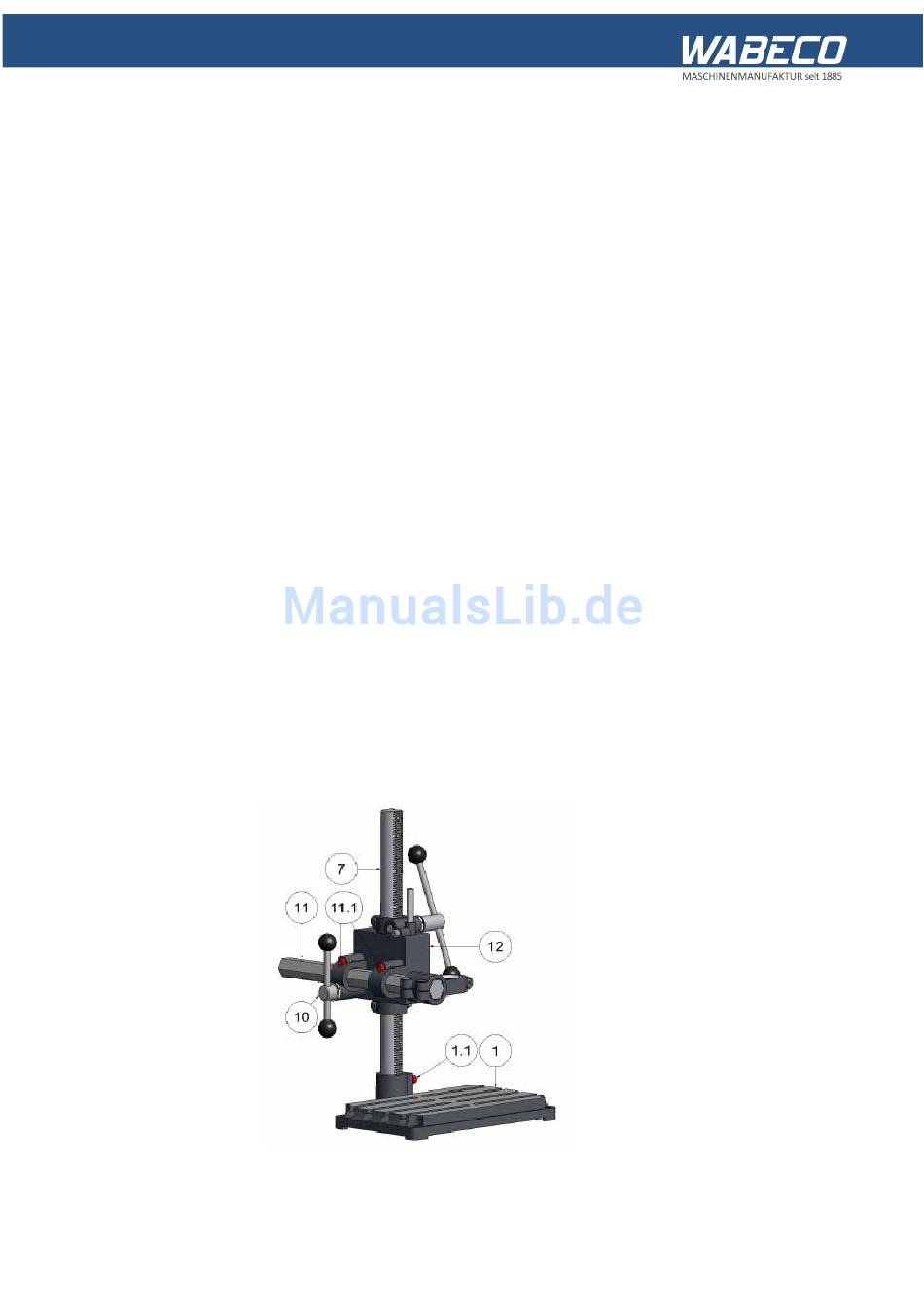

Assembly

1.
Please put the column (7) into the hole of the base plate (1).
2.
Tighten the clamping screw (1.1).
3.
Insert the extension rail (11) into the hexagonal bore of the housing (12), so that the toothing of the
extension rail (11) and the feed shaft (10) fit together.
4.
By means of the clamping screws (11.1) the guide is play-free adjustable.
5.
Not the drilling and milling stand is complete and ready to work.
6.
Fix the drilling and milling stand to a strong support featuring absolute plainness and use 4 screws M8.
4.3

Lubrication

Prior to every use, some commercially available lubricating oil should be applied to the guide column and to
the rotating points of the feed shaft. The housing and the hexagonal steel bracket of the drilling and milling
stand must be moved up and down in this process.
350 mm
500 mm
500 mm
500 mm
35
