Volts Select Button
Quick guide:
Quick press = back light on.
Short hold = switch between
voltages you want to select
long press switch buzzer on/off
(temporary).
(more detailed information
below)

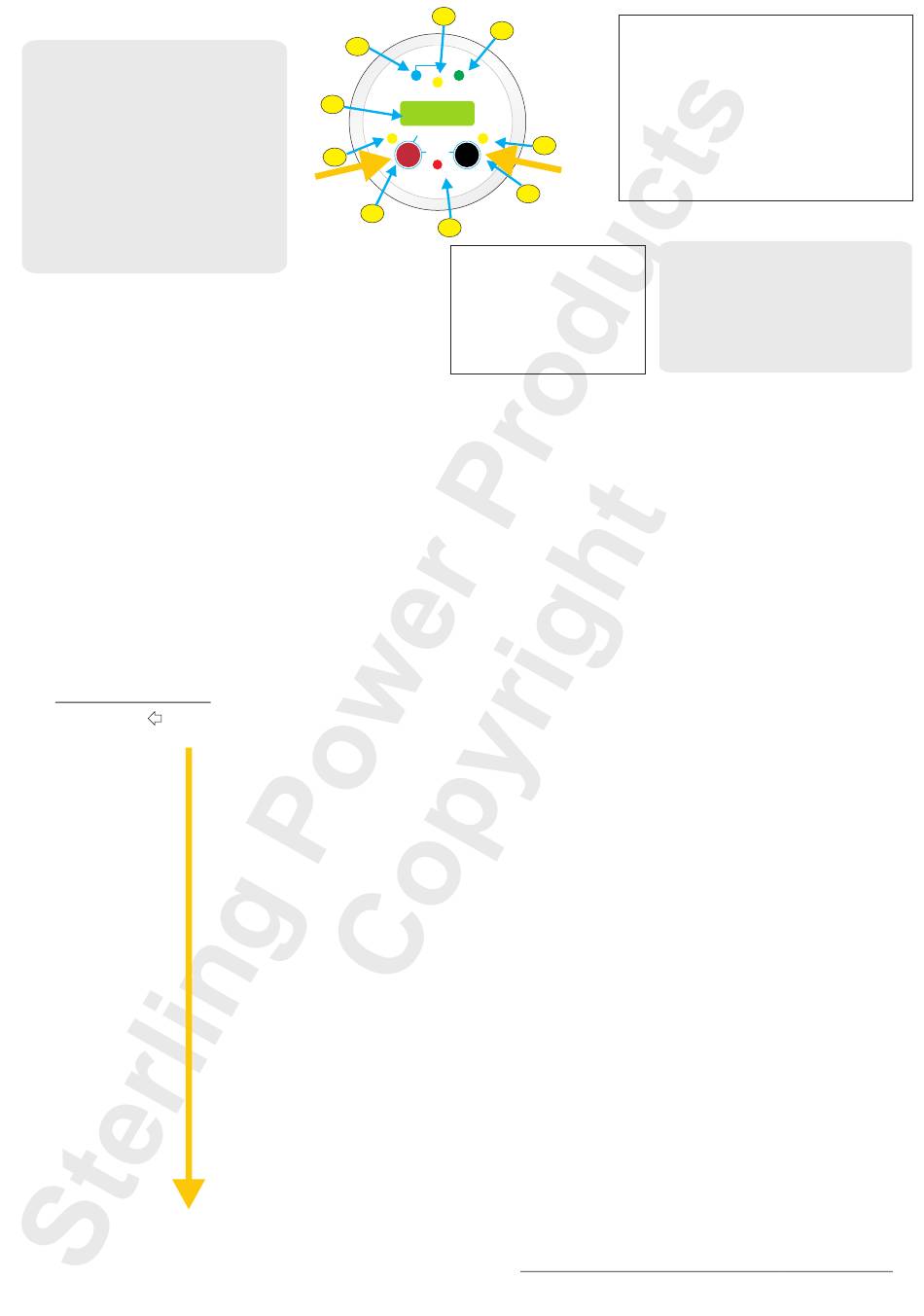

Remote Control
The home screen displays the output voltage from the unit.
If 'crc' is displayed at any point, simply ignore, continue as you
were, all this mean is that the remote has received a corrupt
readout signal from the charger (merely momentary).
note, for 24V only operations you setup as 12V. I.e. if you want
to set a voltage, for example, 26V you set in the parameters
for 13V.
Remote Buttons: Left Button (Volts Select). Press button for
output voltage. Press button again for remote sense voltage. If
remote sense voltage cable is not connected then the display is
0.0V (with a red backlight). Press button again to revert back to
home screen input voltage. Hold button for 4 seconds to set
alarm to 'off', repeat procedure to turn alarm to 'on'.
Right Button (Temp Menu Setup). Press button for unit
temperature. Press button again for battery temperature (via batt
Setup - Menu:
SEL
"bPc"
"btY"
„Cbt"
"coU"
"IoU"
"C/F"
"boS"
"CL"
"buC"
"ASc"
"con"
"bLc"
"bLt"
"br9"
"b9b"
"LEd"
"uId"
"uSW"
"rSW"
"Loc"
"rSt"
* =
only possible
if not locked
4
Sterling Power Products
3
In / Unit
2
1
Remote control:
cut hole diameter
54mm
Please
To eject from menu simply do nothing for 10 sec it will jump out
"bPc"
display boost current in percent.
"btY"
displays battery profile type (0-9). This number denotes which charging profile the
charger is set to. (Ref: table labelled 'Battery Chemistry Selection' on).
"Cbt"
Custom battery type profile. Check special instructions how to set up.
"CoU"
displays cut off voltage (the voltage at which the unit stops boosting) (13.4V)
"IoU"
display input / output base voltage (12/24V).
"C/F"
change from celcius to fahrenheit or back (default = celcius). Press right button to
change between Fahrenheit (FAH) and Celsius (cEL).
"boS"
Boost voltage half / full toggle. "HI" means full, toggle to "Low" means half.
"CL"
Current limit level adjust. 100 = 100% (default max) 90 = 90%, 80 = 80% ....-> 30 = 30%.
"buC"
turn Buzzer on / off (default = on). Left button for off and right button for on.
"Asc"
Autoscroll on / off (default = off). Left button for off and right button for on.
"con"
change contrast value from 0 to 7 (default = 3). Left button down and right button up.
"bLc"
change backlight colour . off <- auto -> green -> red -> blue (default = auto). To change
right button goes from off ---> blue and left button goes blue ---> off.
"bLt"
change backlight time . 1 - 600 seconds, 0 = always on, (default = 60). Right button
goes up the values, left button goes down the values. Hold button to accelerate.
"br9"
change voltage from red to green backlight 8.0V - 13.3V (default 12.4V). Press right
button to increase value, press left button to decrease value. Hold to accelerate.
"b9b"
change voltage from green to blue backlight 12.4V - 16.0V (default 13.4V). Press right
button to increase value, press left button to decrease value. Hold to accelerate.
"LEd"
change LED on time 1 - 600 seconds, 0 = always on, (default = 60). Press right button
to increase in value, press left to decrease in value. Hold button to accelerate.
"uId"
display Unit ID.
"uSW"
display unit software version.
"rSW"
display remote software version.
"Loc"
Lock unit lock code = 1 to 999 (default = unlocked). WARNING This mode shall lock
the unit by virtue of a pass code, be careful. Press right button to increase value, press left
button to decrease value. Please release button when on the number you require, the software
shall store this number, then the display shall read: loc -> on -> #. # = number you have
stored. To remove loc, return to loc and re-enter the number, release buttons and the display
should read: loc -> off (green backlight). Please make a note of this loc code here:_______.
"rSt"
Reset to default values*. Left button NO, right button YES. Let go when on YES to reset.
* =
only possible if not locked.
5
6
Absorption
Cond.
H Charge
Float
V
12.2
Out / Rem
Audible alarm on/off
Batt.
hold > 3 sec
7
Temp
On / Off
Volts
Menu
hold>3 sec
Select
Change
Fault
8
9
Remote Error Codes
E00 = high input voltage
E01 = high output voltage
E02 = high unit temp
E03 = high batt. temp
E04 = no output voltage
temp sensor). If sensor is not attached then the reading shall be nc
(non compliant). Press again to view unit temperature.
To access the menu and adjust parameters:
To access the menu and adjust the parameters press and hold the
right button (Temp Menu Setup) until SEL appears (approximately
5 seconds), then let go. bPc shall appear and you can now scroll
through all of the 18 parameters unidirectional using the right
button only. You can enter whichever parameter you wish by
pressing the left button (Volts Select). Certain parameters are
adjustable, the majority are, however, just a read out. Refer to the
chart below.
To exit from the menu, holding down both left and right buttons
simultaneously will result in END appearing on the screen. This
shall ultimately revert back to the home screen.
*
*
*
*
Page 11
Provided the remote is connected,
all modifications made to the
battery charger (not the remote)
from the remote control shall be
stored and saved, even if power is
cut to the charger. However, when
the remote is disconnected these
modifications shall be reset to
default.
Temp Menu Change button
Quick press = back light on.
Short hold = switch between
temperatures.
Long press = Menu + setup +
sel display
*
*
*
