ALFRA VKS 125 Bedienungsanleitung

Verdrahtungskanalschneider
Vorschau ausblenden Andere Handbücher für VKS 125:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Bedienungsanleitung / Operation Manual
Verdrahtungskanalschneider VKS 125
Wiring Duct Cutter VKS 125
Artikel-Nr. / Prod.-No.: 031920
All manuals and user guides at all-guides.com
1

Werbung

loading

Inhaltszusammenfassung für ALFRA VKS 125

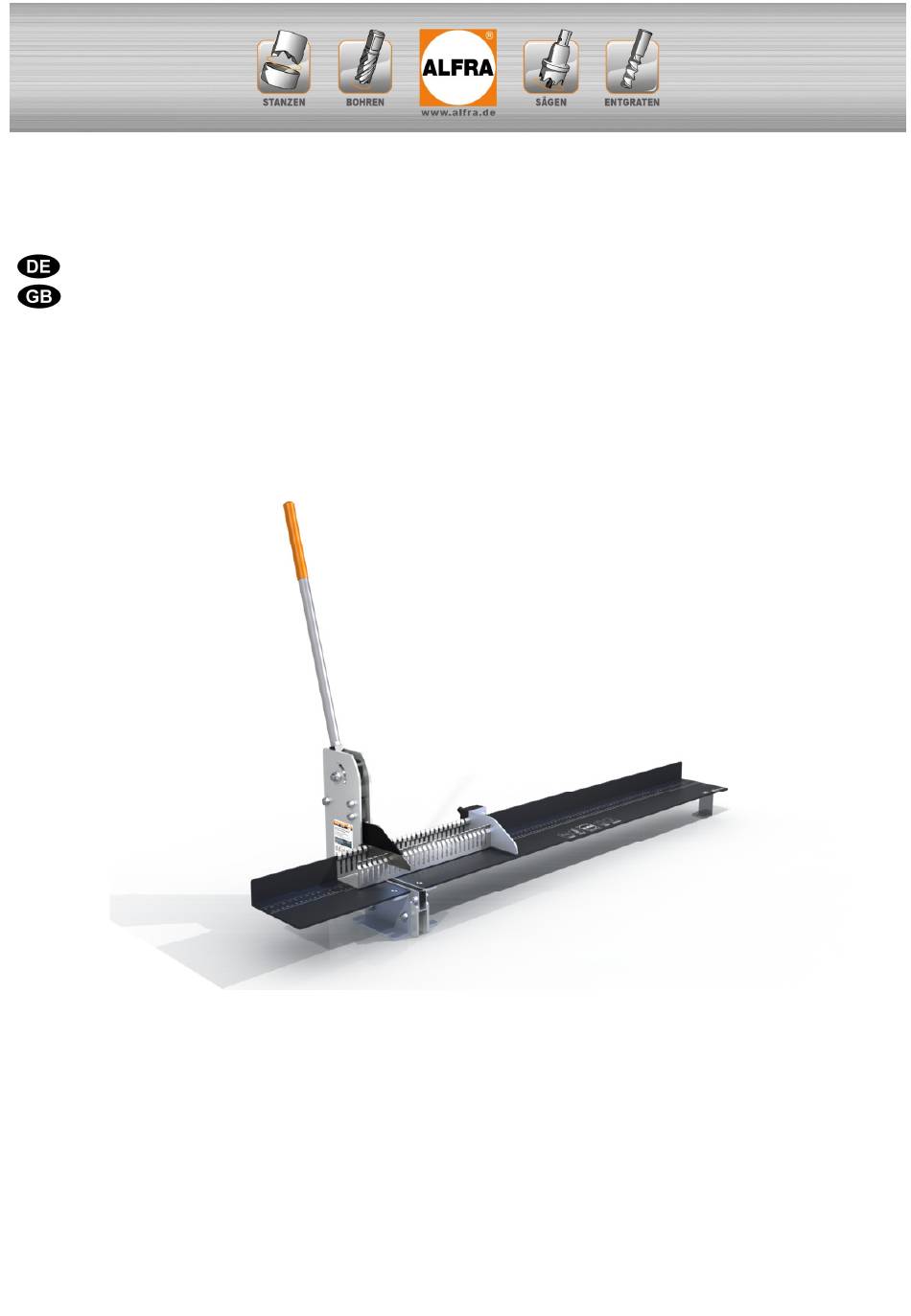

  • Seite 1 All manuals and user guides at all-guides.com Bedienungsanleitung / Operation Manual Verdrahtungskanalschneider VKS 125 Wiring Duct Cutter VKS 125 Artikel-Nr. / Prod.-No.: 031920...
  • Seite 2 All manuals and user guides at all-guides.com Inhaltsverzeichnis / Contents Vor Inbetriebnahme Sicherheitshinweise, Bestimmungsgemäße Verwendung, lesen und Seite 3 Inbetriebnahme, Bedienung, Wartung, Ersatzteilliste. aufbewahren! Please read and save Safety instructions, Specified Conditions of Use, Page 11 these instructions! Commissioning, Operation, Maintenance, Spare Parts List...
  • Seite 3 Bestimmungsgemäße Verwendung Mit dem VKS 125 können Verdrahtungskanäle und entsprechende Deckel aus Kunststoff bis zu einer Breite von 125 mm und einer Wandstärke bis 2,5 mm geschnitten werden. Geeignet für weiche Kunststoffe. Für Verdrahtungskanäle aus Hart-PVC und halogenfreie nur bedingt geeignet.
  • Seite 4 All manuals and user guides at all-guides.com Inbetriebnahme Die Montage Handhebel einschrauben. Anschlag auf das Lineal aufschieben. Montage Gegenhalter (seitliche Auflage) und Längenanschlag mittels mitgeliefertem Befestigungsmaterial. Das Lineal muß beim Montieren mit Hilfe eines Zollstocks oder Maßbandes auf das genaue Maß (Abstand zwischen Messer und Außenkante des Anschlags) eingestellt werden.
  • Seite 5 All manuals and user guides at all-guides.com 2. Die Befestigung auf einem stabilen und kippsicheren Untergrund (z.B. Werkbank). Position und Lage des Gerätes festlegen und Befestigungspunkte vom Gerät übernehmen. Dem Untergrund geeignetes Befestigungsmaterial verwenden. -Nicht im Lieferumfang enthalten- Bedienung 1. Die gewünschte Länge des Verdrahtungskanals am Längenanschlag einstellen und mittels Flügelschraube die Position fixieren.
  • Seite 6 All manuals and user guides at all-guides.com 2. Den Verdrahtungskanal nur vorne außerhalb des Schneidbereichs und Messerlage halten. Nicht hinter den Kanal fassen. Für das gewählte Schnittmaß den Verdrahtungskanal an Längenanschlag anlegen und dann komplett bis zum Gegenhalter in das Gerät einschieben. Das Messer ist zwischen den Stegen einzufädeln, gegebenenfalls ist der Kanal bis zum letzten Schlitz zurückzunehmen.
  • Seite 7 All manuals and user guides at all-guides.com 4. Zum Schneiden des Deckels die Schritte 1 - 3 wiederholen. Die Abkantungen des Deckels müssen beim Schneiden nach oben zeigen. Wartung Auswechseln des Messers 1.1. Zum Ausbauen des Messers die Schraube entfernen und das Messer gerade heraus ziehen. 1.2.
  • Seite 8 All manuals and user guides at all-guides.com Das Messer nicht ohne geeigneten Schneideschutz außerhalb des Gerätes lagern oder transportieren. Reinigen oder Wechseln des Messerschutzes Um den Messerschutz zu reinigen oder zu wechseln muß zuerst das Messer ausgebaut werden. Siehe hierzu Beschreibung 1.1 Auswechseln des Messers. Zum Ausbauen des Messerschutzes die Schraube entfernen und den Messerschutz schräg nach oben heraus ziehen.
  • Seite 9 All manuals and user guides at all-guides.com...
  • Seite 10 All manuals and user guides at all-guides.com Stck. Pos. Artikel-Nr. / Prod. No. Beschreibung Qty. 03192-001A Seitenblende R/L 03192-002 Exzenter 03192-003 Messerhalter 03192-004 Messerführung -vorn- 03192-005 Messerführung -hinten- Tisch links 250 mm 03192-0065 Tisch rechts 1060 mm 03192-008 Messerschutzprofil 03192-009 Messerschutzstütze 03192-010 Seitenwinkel h80...
  • Seite 11 Specified Conditions of Use The VKS 125 is only to be used to cut plastic wiring ducts and covers up to a width of 125 mm and a wall thickness up to 2,5 mm. It’s only suitable for soft, non-reinforced plastics.
  • Seite 12 All manuals and user guides at all-guides.com Commissioning 1. Assembly Screw the lever. Attach the length stopper to the ruler. Mount the counter support and the ruler by using the included mounting parts. The ruler has to be adjusted to the exact gauge (distance between knife and the outer edge of the length stopper) by using a tape-measure or a folding ruler.
  • Seite 13 All manuals and user guides at all-guides.com 2. Attachment on a firm and tilt-proof basis e.g. workbench. Set position and location of the device and transfer attachment points to basis. Use suitable mounting parts (not included). Operation 1. Adjust the desired length of the wiring duct by using the length stopper and lock position by screwing down the thumbscrew.
  • Seite 14 All manuals and user guides at all-guides.com 2. Hold the wiring duct only at the front and outside of the cutting area and the blade position. Do not reach behind the wiring duct. For the desired cutting dimension connect the wiring duct to the length stopper then slide it completely back against the counter support.
  • Seite 15 All manuals and user guides at all-guides.com 4. To cut covers please repeat steps 1 - 3. The rims of the cover must be on top when cutting. Maintenance Replacement of the blade To remove the blade, remove the screw and pull the blade straight out. Grease the slide faces of the blade with the included multi-purpose grease.
  • Seite 16 All manuals and user guides at all-guides.com Do not transport or store the blade without suitable cut protection. Cleaning or replacement of the blade guard. To clean or to replace the blade guard the blade must first be removed. See description 1.1 Replacement of the blade. To remove the blade guard, firstly remove the screw.
  • Seite 17 All manuals and user guides at all-guides.com...
  • Seite 18 All manuals and user guides at all-guides.com Stck. Pos. Artikel-Nr. / Prod. No. Description Qty. 03192-001A Lateral plate R/L 03192-002 Eccentric 03192-003 Blade holder 03192-004 Blade guide –front- 03192-005 Blade guide –back- Table left 250 mm 03192-0065 Table right 1060 mm 03192-008 Blade guard 03192-009...
  • Seite 19 All manuals and user guides at all-guides.com DIN7991-M4X10-8.8 Countersink screw –galvanized- DIN912-M6X30-8.8 Cylinder screw –galvanized-...
  • Seite 20 All manuals and user guides at all-guides.com Alfred Raith GmbH Tel. 06205-3051-0 2. Industriestr. 10 Fax 06205-3051-150 D-68766 Hockenheim Internet: www.alfra.de E-mail: info@alfra.de...
