BMC timemachine tm01 Bedienungsanleitung Seite 31

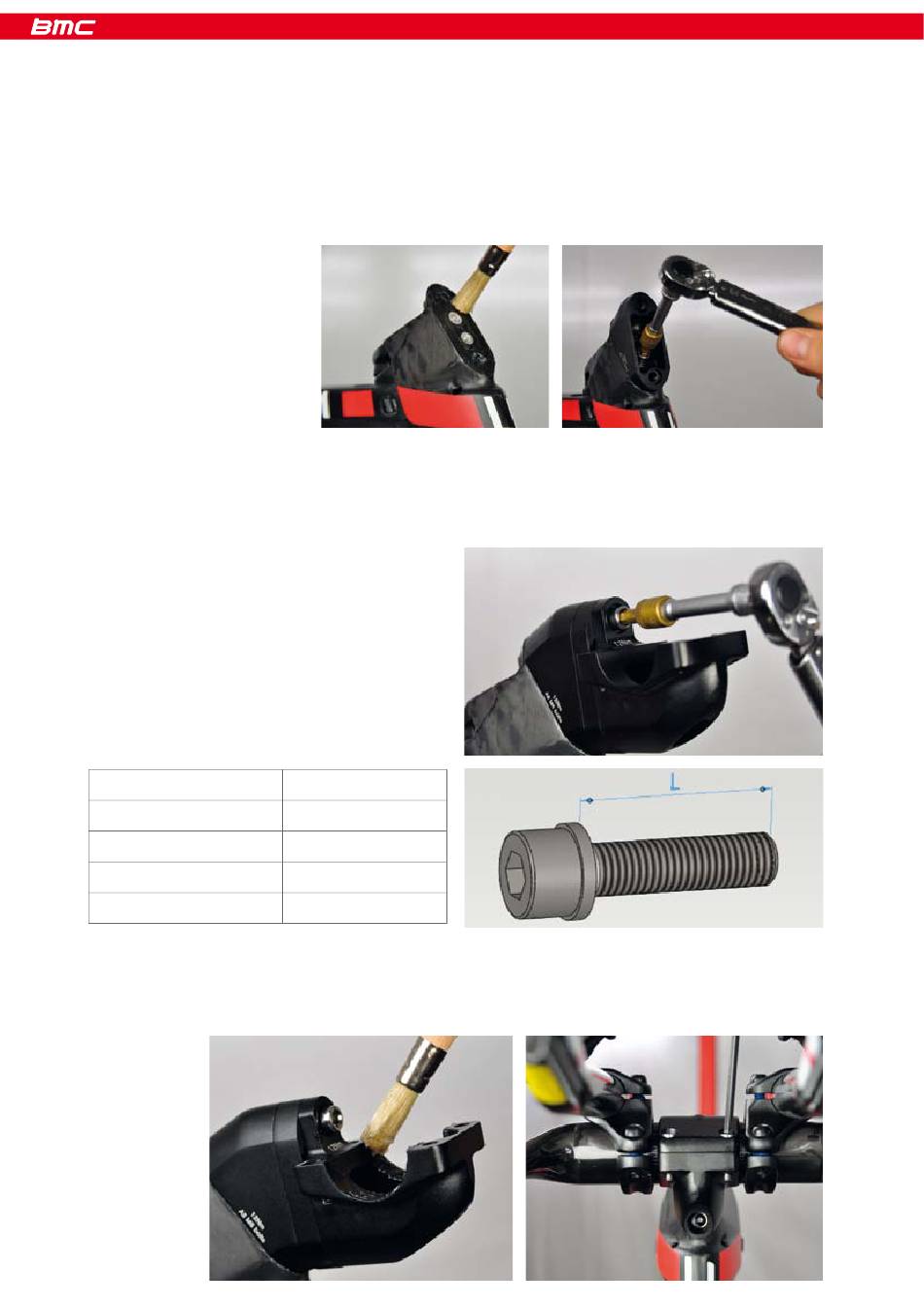

Assembly procedure
- Apply friction paste on the contact surface of the fork (1).
- Install first the angled spacer, using 16mm M6 bolts. Torque 12 Nm (2).
- Install stem body with the desired length spacing (3).
Important: Each length spacing has a corresponding specific bolt length. Incorrect bolt length may result in damaged stem
and fork!
Spacer combination
No spacers
10mm spacer
20mm spacer
10 + 20 spacers
- Apply friction paste between stem and handlebars. Install handlebars and faceplate. The frontal bolts of the face plate should be
tightened until the face plate touches the stem body.
All manuals and user guides at all-guides.com
Length L
16mm
26mm
36mm
46mm
Building a timemachine
1
4 5
2
3
