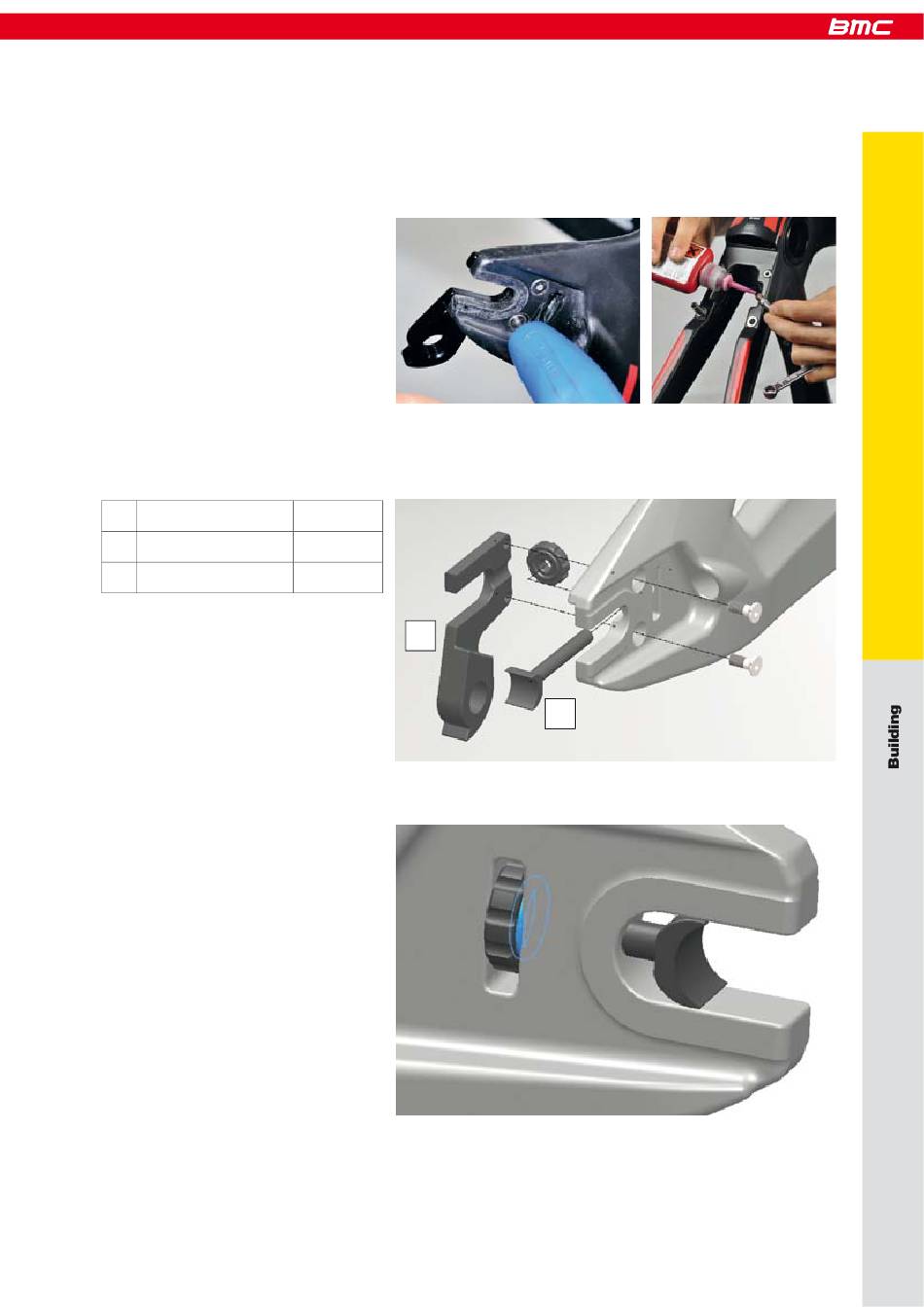

Building a timemachine
Before assembling the frame, it is important to check
- RD hanger bolts should be well tightened with 2mm Allen key.
- Brake bosses should be mounted and tightened with red Loctite (when new, the parts are prepared at the factory).
- Timemachine frames are equiped with wheel adjusters at the rear dropout. Use the nuts to properly align the rear wheel into the frame.
Description
1 Derailleur hanger & bolts
2 Axle adjuster
- The nut should be placed so that the O-ring seal is facing towards the hub.
All manuals and user guides at all-guides.com
Part N°
210544
210545
1
2
