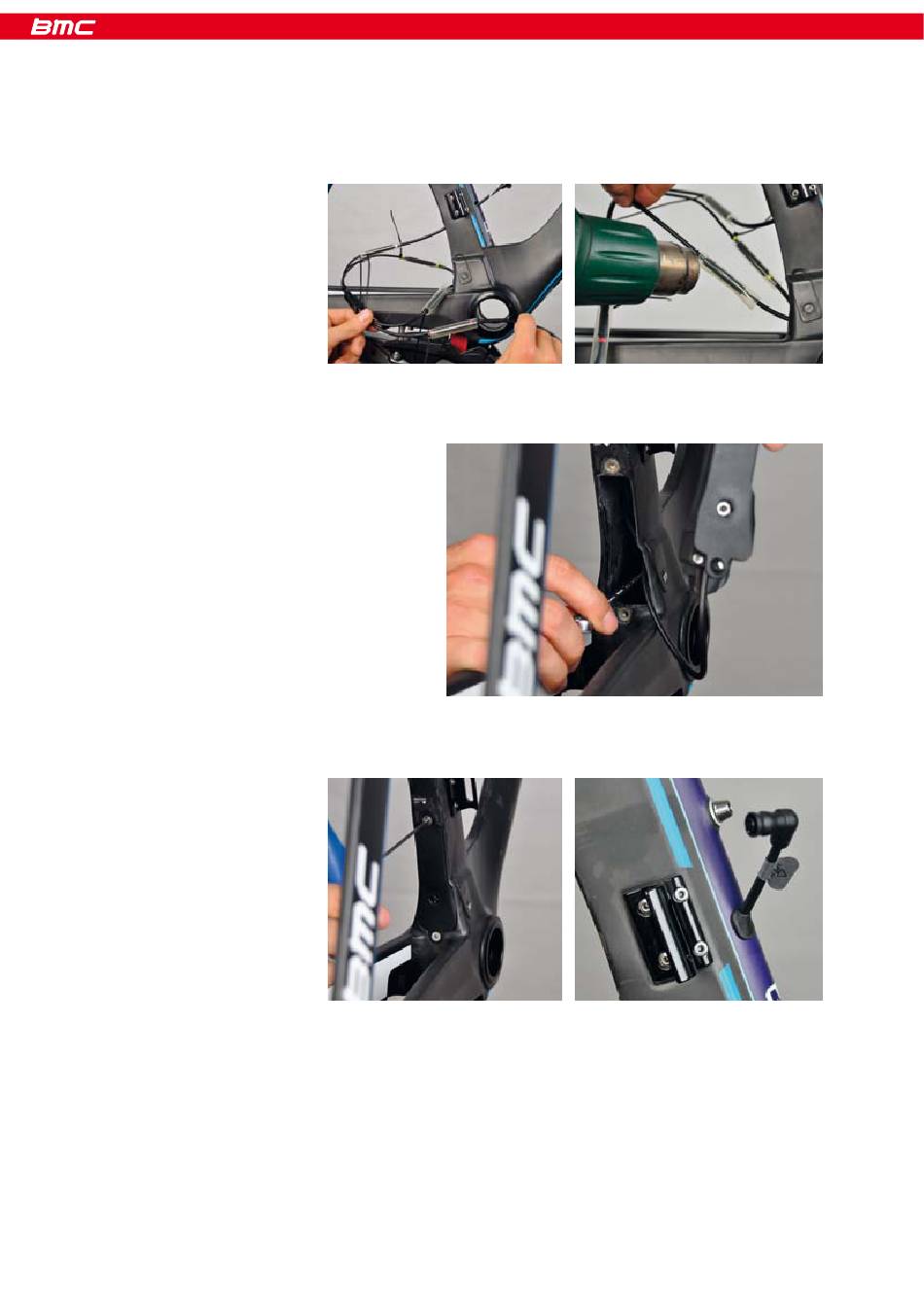

- Connect all wires to the junctions (10), use the heat gun to seal the connections (11).
- Push the junction and the wires inside the downtube of the frame, using the 9mm wrench (12).
- Bolt the battery cover onto the frame (13), install rubber grommet (14).
All manuals and user guides at all-guides.com
Building a timemachine
10
13
11
12
14
