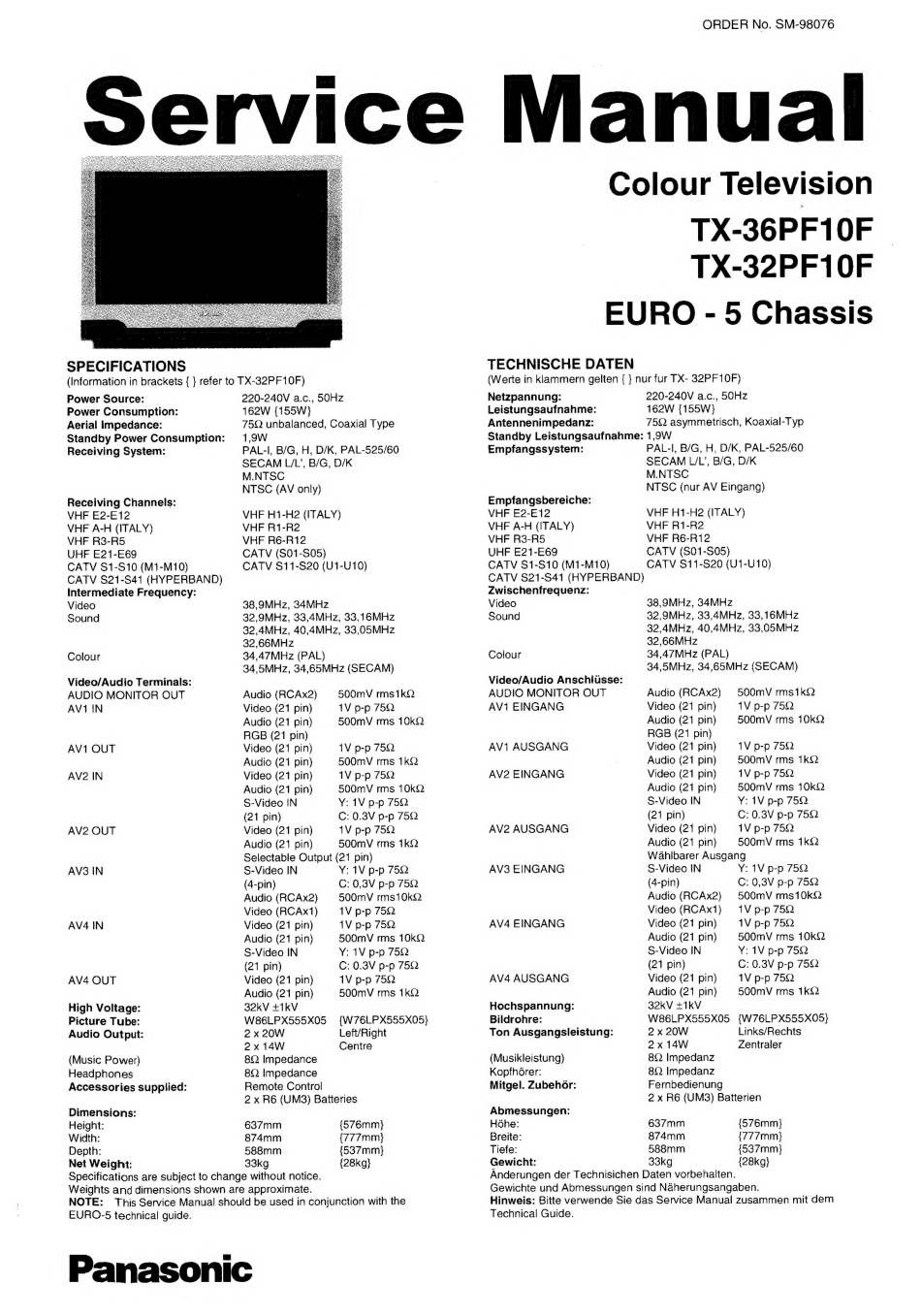

ORDER No. SM-98076
Colour Television
TX-36PF10F
TX-32PF10F
EURO - 5 Chassis
SPECIFICATIONS
(Information in brackets { } refer to TX-32PF10F)
Power Source:
Power Consumption:
Aerial Impedance:
Standby Power Consumption:
Receiving System:
Receiving Channels:
VHF E2-E12
VHF A-H (ITALY)
VHF R3-R5
UHF E21-E69
CATV $1-S10 (M1-M10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video
Sound
Colour
Video/Audio Terminals:
AUDIO MONITOR OUT
AV1 IN
AV1 OUT
AV2 IN
AV2 OUT
AV3 IN
AV4 IN
AV4 OUT
High Voltage:
Picture Tube:
Audio Output:
(Music Power)
Headphones
Accessories supplied:
Dimensions:
Height:
Width:
Depth:
Net Weight:
220-240V a.c., 50Hz
162W {155W}
75Q unbalanced, Coaxial Type
1,9W
PAL-I, B/G, H, D/K, PAL-525/60
SECAM L/L', B/G, D/K
M.NTSC
NTSC (AV only)
VHF H1-H2 (ITALY)
VHF R1-R2
VHF R6-R12
CATV (S01-S05)
CATV $11-S20 (U1-U10)
38,9MHz, 34MHz
32,9MHz, 33,4MHz, 33,16MHz
32,4MHz, 40,4MHz, 33,05MHz
32,66MHz
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Audio (RCAx2)
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
500mV rms1kQ
1V p-p 752
500mV rms 10kQ
Video (21 pin)
1V p-p 752
Audio (21 pin)
500mV rms 1kQ
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mvV rms 10kQ
S-Video IN
Y: 1V p-p 75
(21 pin)
C: 0.3V p-p 75Q
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mV rms 1kQ
Selectable Output (21 pin)
S-Video IN
Y¥:1V p-p 75Q
(4-pin)
C: 0,3V p-p 752
Audio (RCAx2)
500mvV rms10kQ
Video (RCAx1)
1V p-p 75Q
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mV rms 10kQ
S-Video IN
Y: 1V p-p 75Q
(21 pin)
C: 0.3V p-p 75Q
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mV rms 1kQ
32kV +1kV
W86LPX555X05
{W76LPX555X05}
2 x 20W
Left/Right
2x 14W
Centre
8Q Impedance
8Q Impedance
Remote Control
2 x R6 (UM3) Batteries
637mm
{576mm}
874mm
{777mm}
588mm
{537mm}
33kg
{28kg}
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE:
This Service Manual should be used in conjunction with the
EURO-5 technical guide.
Panasonic
TECHNISCHE DATEN
(Werte in kiammern gelten { } nur fur TX- 32PF10F)
Netzpannung:
Leistungsaufnahme:
Antennenimpedanz:
Standby Leistungsaufnahme:
Empfangssystem:
Empfangsbereiche:
VHF E2-E12
VHF A-H (ITALY)
VHF R3-R5
UHF E21-E69
CATV $1-S10 (M1-M10)
CATV S21-S41 (HYPERBAND)
Zwischenfrequenz:
Video
Sound
Colour
Video/Audio Anschtusse:
AUDIO MONITOR OUT
AV1 EINGANG
AV1 AUSGANG
AV2 EINGANG
AV2 AUSGANG
AV3 EINGANG
AV4 EINGANG
AV4 AUSGANG
Hochspannung:
Bildrohre:
Ton Ausgangsleistung:
(Musikleistung)
Kopfhorer:
Mitgel. Zubehor:
Abmessungen:
Hohe:
Breite:
Tiefe:
Gewicht:
220-240V a.c., 50Hz
162W {155W}
75Q asymmetrisch, Koaxial-Typ
1,9W
PAL-I, B/G, H, D/K, PAL-525/60
SECAM L/L', B/G, D/K
M.NTSC
NTSC (nur AV Eingang)
VHF H1-H2 (ITALY)
VHF R1-R2
VHF R6-R12
CATV (S01-S05)
CATV $11-S20 (U1-U10)
38,9MHz, 34MHz
32,9MHz, 33,4MHz, 33,16MHz
32,4MHz, 40,4MHz, 33,05MHz
32,66MHz
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Audio (RCAx2)
Video (21 pin)
Audio (21 pin)
500mV rms1k@Q2
1V p-p 752
500mV rms 10k
RGB (21 pin)
Video (21 pin)
1V p-p 752
Audio (21 pin)
500mV rms 1kQ
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mvV rms 10kQ
S-Video IN
Y: 1V p-p 75Q
(21 pin)
C: 0.3V p-p 752
Video (21 pin)
1V p-p 750
Audio (21 pin)
500mV rms 1kQ
Wahlbarer Ausgang
S-Video IN
Y¥:1V p-p 75Q
(4-pin)
C: 0,3V p-p 752
Audio (RCAx2)
500mV rms10k22
Video (RCAx1)
1V p-p 75Q
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mV rms 10kQ
S-Video IN
Y:1V p-p 75Q
(21 pin)
C: 0.3V p-p 7522
Video (21 pin)
1V p-p 75Q
Audio (21 pin)
500mV rms 1k&2
32kV +1kV
W86LPX555X05
{W76LPX555X05}
2 x 20W
Links/Rechts
2x 14W
Zentraler
8Q Impedanz
8Q Impedanz
Fernbedienung
2 x R6 (UMS) Batterien
637mm
{576mm}
874mm
{777mm}
588mm
{537mm}
33kg
{28kg}
Anderungen der Technisichen Daten vorbehalten.
Gewichte und Abmessungen sind Naherungsangaben.
Hinweis: Bitte verwende Sie das Service Manual zusammen mit dem
Technical Guide.
