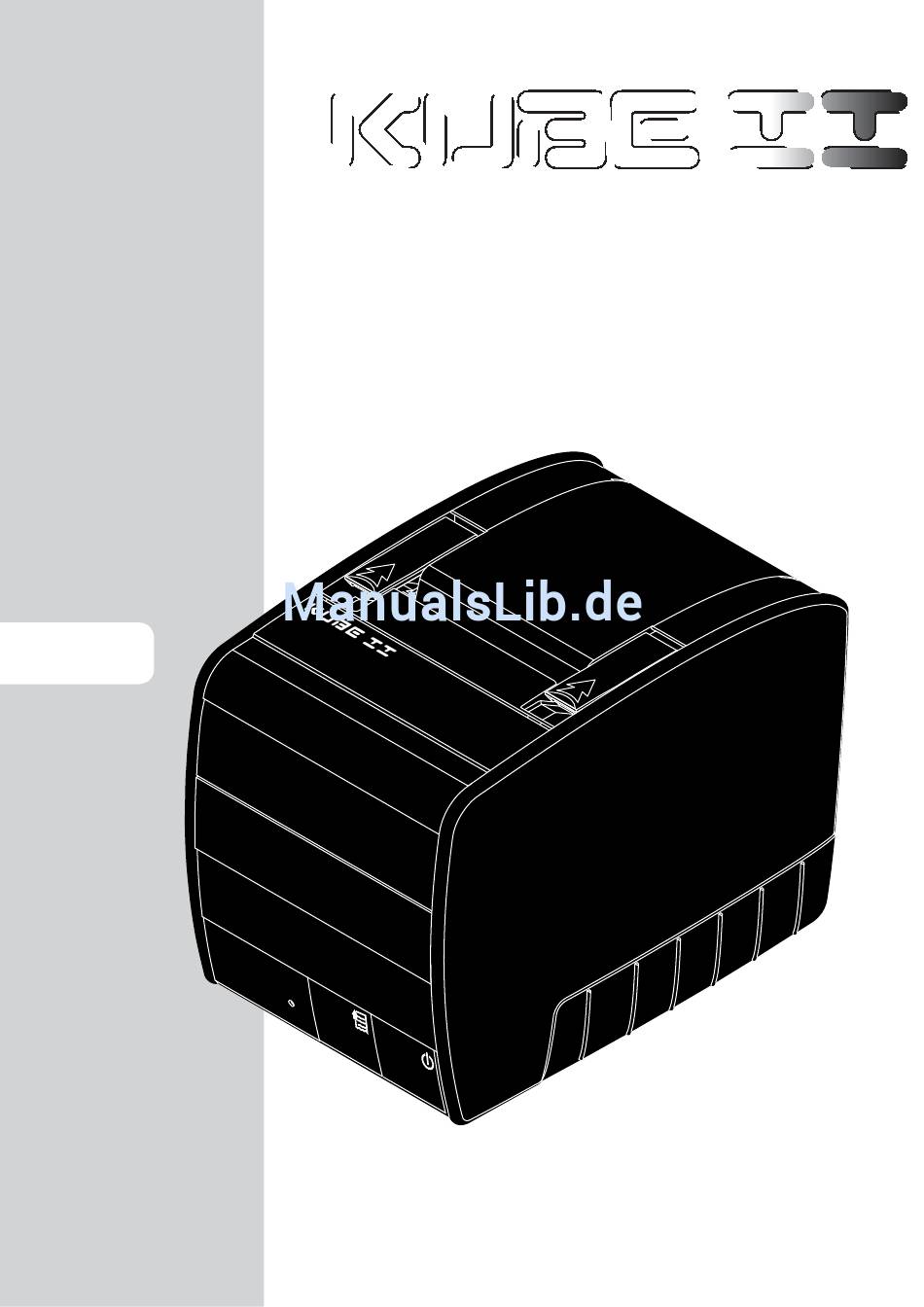

- Seite 1 USER’S GUIDE GUIDA OPERATIVA GUIDE D’UTILISATION BEDIENUNGSANLEITUNG GUIA OPERATIVA...
- Seite 3 The CE mark affi xed to the product certify that the product satisfi es the basic safety requirements. Il marchio CE applicato al prodotto certifi ca che il prodotto stesso soddisfa i requisi- ti base di sicurezza. Le label CE appliqué sur le produit certifi e que le produit même satisfait les qualités requises de securité...
- Seite 5 KUBE II KUBE II Table of contents Indice Table des matières Inhaltsverzeichnics Indice PRINTER SETTINGS PRINTER TYPE ......Kube PRINTING HEAD TYPE ....T80 SETUP SETUP INTERFACE ........RS232 PROGRAM MEMORY TEST..OK DYNAMIC DYNAMIC RAM TE TEST ST....EEPROM TEST......OK CUTTER CUTTER TEST TEST.......OK HEAD VO HEAD...
- Seite 6 KUBE II KUBE II BLANK PAGE <2>...
-
Seite 7: Unpacking The Printer
KUBE II CUSTOM UNPACKING THE PRINTER Manual and CD-Rom Guarantee sheet Upper foam packing shell Additional feet for vertical use Power supply RS232 data cable Power supply cable Printer Lower foam packing shell Labels to stick on for vertical use Paper roll DISIMBALLO DELLA STAMPANTE Manuale utente e CD-Rom... - Seite 8 KUBE II KUBE II • Switch printer ON/OFF • Accendere/Spegnere la stampante • Brancher/Éteindre l’imprimante • Den Drucker einwieden/ausschlaten • Encender/Apagar la impresora CUSTOM CUSTOM • Switch printer On pressing key On/Off. The status led turn on. • Accendere la stampante premendo il tasto On/Off. Il led di stato si accende. •...
- Seite 9 KUBE II KUBE II STATUS LED COLOUR DESCRIPTION NONE Printer OFF GREEN Printer ON: no error COMMUNICATION STATUS Nr flashing Descripton Data receive GREEN Reception errors (parity, frame error, overrun error) Misinterpret command Command reception time out Near paper end RECOVERING ERROR Nr flashing Descripton...
- Seite 10 KUBE II KUBE II N O T E: If serial and USB connectors are inserted, communication port is USB. N O T A: Se i connettori seriale e USB sono inseriti, la porta di comuni- cazione è la USB. • Insert drawer connector •...
- Seite 11 KUBE II KUBE II • Connector. • Connettore. • Connecteur. • Schnittstellen. • Conectador. USB 1.1 port USB 2.0 compatible J14 - USB Connector SIGNAL DESCRIPTION VBUS (in) VBUS (in) Data - Data + Ground signal J13 - RS232 Serial Connector SIGNAL DESCRIPTION Data terminal ready...
- Seite 12 KUBE II KUBE II BLANK PAGE <8>...
- Seite 13 KUBE II KUBE II • Paper roll insertion • Inserimento del rotolo carta • Introduire le rouleau de papier • Einsetzen der Papierrolle • Introducir el rollo de papel STATUS LED YELLOW PAPER END GIALLO FINE CARTA CUSTOM N O T E: Inspect inside the printer every paper change, and verify that there aren’t paper off-cuts on the cutter compartment;...
- Seite 14 KUBE II KUBE II <10>...
-
Seite 15: Status-Led
KUBE II KUBE II • Cutter jam • Inceppamento taglierina • Bourrage massicot • Papierstau • Atasco del cortador STATUS LED YELLOW PAPER JAM GIALLO INCEPPAMENTO CARTA B E W A R E: In case of paper jam do not operate over the printer with any kind of instruments, like scissors, screwdriver, cutter, etc. - Seite 16 KUBE II KUBE II In case of cutter jam, press slightly the cover side, so that it opens, lift the cover and remove it. In caso di inceppamento della taglierina, premere leggermente il lato dello spor- tellino superiore, in modo da sganciarlo; sollevarlo e toglierlo.
- Seite 17 KUBE II KUBE II To unlock: • operate on the mechanism, as shown in the label, and rotate it up in the di- rection that oppose less resistence; • press feed key. STATUS LED COLOUR If the cutter is unlocked, the led turns gre- en.
-
Seite 18: Right Side
KUBE II KUBE II • Sides replacement • Sostituzione fi ancate • Remplacement des côtés • Seiten wandenersatz • Reemplazo de los costados RIGHT SIDE LEFT SIDE <14>... - Seite 19 KUBE II KUBE II • Vertical use • Utilizo in verticale • Enploi vertical • Senkrechtge brauch • Modo de empleo en vertical To use the printer in vertical position, fol- lows the instructions: remove the left side as shown in picture. Per utilizzare la stampante in modo ver- ticale, eseguire le seguenti indicazioni: smontare la fi...
- Seite 20 KUBE II KUBE II Remove the paper end sensor unscrewing the attachment screw, and then put the sensor in the new position, as shown in the picture. Put the previously disassembled side back. Smontare il sensore di fi ne carta svitando la vite di fi...
- Seite 21 KUBE II KUBE II Attach the feet, supplied with the printer on the back side as shown in picture. Apply the sticky labels (CUSTOM and KUBE) supplied with the printer, on their signs, so the signs are more readable as shown in picture..
- Seite 22 KUBE II KUBE II BLANK PAGE <18>...
- Seite 23 KUBE II KUBE II STATUS LED CUSTOM ROSSO Customer Service Department: Customer Service Department: Monday-Friday at 9-12 and 14-17 e-mail: support@custom.it Contact Customer Service if the LED with the printer on, still blinking on red light. Chiamate l’Assistenza tecnica se il led (a stampante accesa) lampeggia prolunga- tamente sul colore rosso.
- Seite 24 KUBE II KUBE II BLANK PAGE <20>...
-
Seite 25: Printer Settings
KUBE II KUBE II SETUP: SETUP: 1 Go into SETUP mode by pressing the FEED key before switch on the printer and going on to press it for a few seconds after the printer power up. 2 The printer should print all list of the parameters: •... - Seite 26 KUBE II KUBE II 1 Entrare nel SETUP tenendo premuto il tasto FEED SETUP: SETUP: prima dell’accensione della stampante e mante- nendo la pressione per qualche secondo dopo l’accensione stessa. 2 La stampante stamperà la lista di tutti i parametri: •...
- Seite 27 KUBE II KUBE II AUTOTEST: AUTOTEST: Go into AUTOTEST mode by pressing On/Off key at turn power on of the printer. The printer should print all list of the fonts. Entrare in modalità AUTOTEST tenendo premuto il tasto On/Off all’accensione della stampante.
- Seite 28 KUBE II KUBE II BLANK PAGE <24>...
- Seite 29 KUBE II KUBE II Download the SW from the “www.custom.biz” web Installation for Installation for site. Use the following procedure to install the printer drivers drivers software: a. WINDOWS 98/ME/NT/2000/XP: From the START menu, press Enter and key-in the path where the SW was saved on your PC, then click OK.
- Seite 30 KUBE II KUBE II BLANK PAGE <26>...
-
Seite 31: Technical Specifications
KUBE II KUBE II Appendix Appendix A.1 TECHNICAL SPECIFICATIONS A.1.1 Technical specifi cations for the printer STANDARD INTERFACES RS232 BAUD RATE from 1200 to 115200 bps SENSORS Paper out, head open, head temperature, near paper end RECEIVE BUFFER 20 bytes FLASH MEMORY 512 Kbytes PRINTER SPECIFICATION... -
Seite 32: Mechanical Specifications
KUBE II KUBE II Appendix Appendix EMULATION ESC/POS Character density 11 cpi 15 cpi 20 cpi Number of cloumns Printing speed Characters / sec 1815 2310 3080 Lines / sec Character (L x H mm) Normal 2.25 x 3 1.75 x 3 1.25 x 3 Character set NOTE... -
Seite 33: Accessories And Spare Parts
KUBE II KUBE II Appendix Appendix A.2 ACCESSORIES AND SPARE PARTS A.2.1 POWER SUPPLY AC INLET +24V DC OUTPUT WIRE PDPS-060-24-01 Power supply 24V 60W Input specifi cations Input voltage 90Vac ÷ 264Vac Input frequency 47Hz ÷ 63Hz Output specifi cations Output voltage Power specifi... - Seite 34 KUBE II KUBE II Appendix Appendix A.2.2 SPARE PARTS Paper roll PAPER ROLL RCT80x48-25MM Thermal paper roll for size 80mm RCT80x48-25MM-RS Thermal paper roll for size 80mm RCT80x80 Thermal paper roll for size 80mm RCT80x90 Thermal paper roll for size 80mm RCT80x90-90GR Thermal paper roll for size 80mm N O T E:...
- Seite 35 KUBE II KUBE II Appendix Appendix B.2 CLEANING B.2.1 OUTSIDE CLEANING To clean the machine, use a pneumatics air or soft cloth. First remove the mains plug from the wall socket. Do not use alcohol, solvents, or hard brushes. Do not let water or other liquids get inside the machine.
- Seite 36 CUSTOM ENGINEERING SPA World Headquarters Via Berettine, 2 - 43100 Fontevivo Tel. +39 0521 680111 - Fax +39 0521 610701 info@custom.biz - www.custom.biz All rigths reserved www.custom.biz...
