Installation; Adhesive Strip Mounting; Screw Mounting - eQ-3 homematic IP HmIP-ESI-IEC Installations- Und Bedienungsanleitung

Start-up
• Pull the insulating strip out of the
battery compartment (F).
• The pairing mode is active for 3
minutes.
You can start the pairing mode for
a further 3 minutes by pressing
the system button (A) briefly.
Your device will automatically appear
in the Homematic IP app.
• To confirm, enter the last four dig-
its of the device number (SGTIN) in
your app, or scan the QR code. The
device number can be found on
the sticker supplied or attached to
the device.
• Wait until pairing is completed.
• If pairing was successful, the LED
(A) lights up green. The device is
now ready for use.
• If the LED lights up red, please try
again.
• In the app, give the device a name
and allocate it to a room.

6.2 Installation

You can use either
• the supplied double-sided adhesive
strips or
• a screw (not included in the delivery)
to affix the HmIP-ESI in the chosen
position.
Make sure that the mounting lo-
cation does not affect the wireless
communication between the
HmIP-ESI and the access point.

6.2.1 Adhesive strip mounting

Make sure that the mounting sur-
face is smooth, solid, non-dis-
turbed, free of dust, grease and
solvents and not too cold to en-
sure long-term adherence.

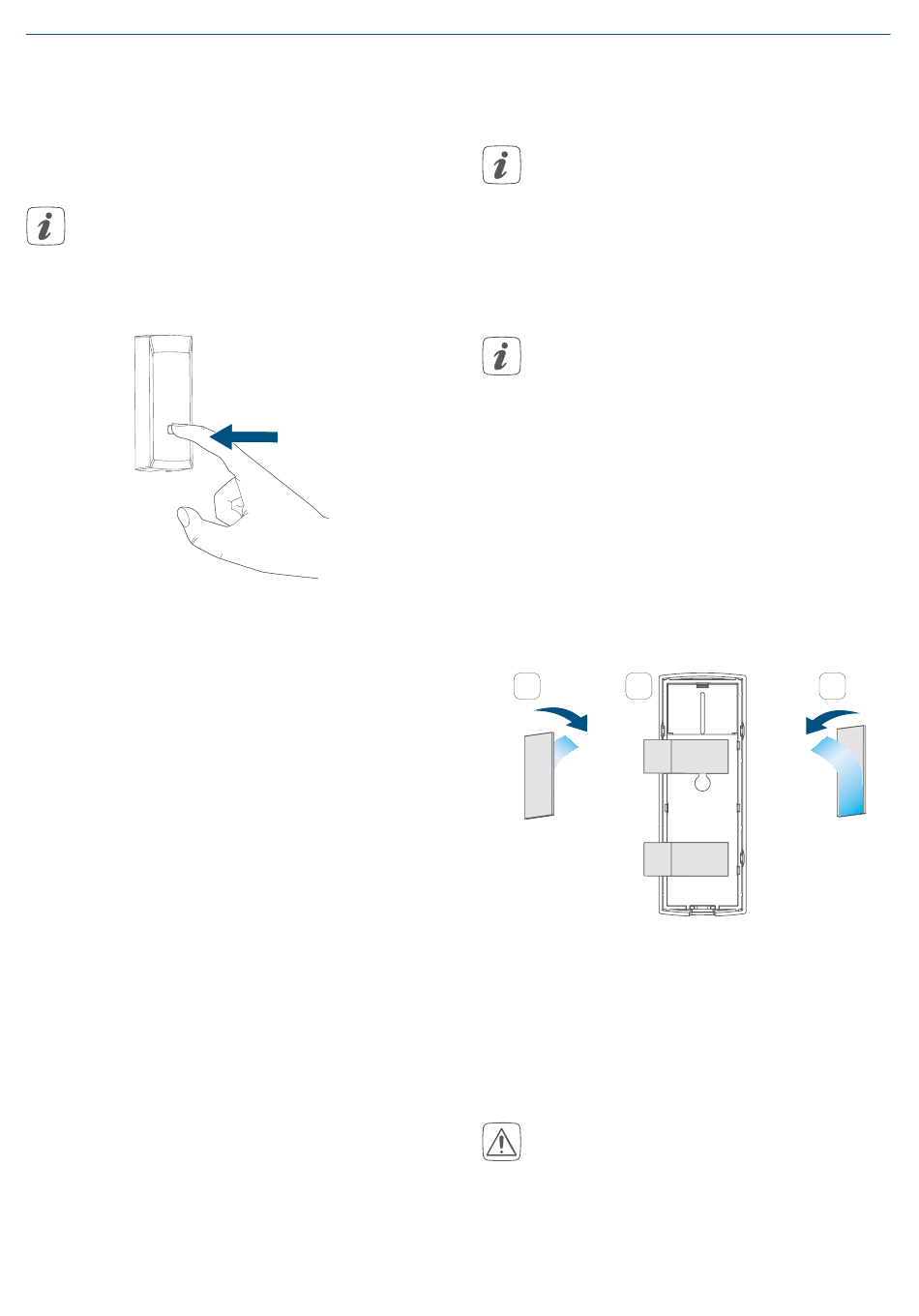

To mount the HmIP-ESI using the ad-
hesive strips, proceed as follows:
• Affix the double-sided adhesive
strips to the rear side of the elec-
tronics unit (D).
1 2
Press the device rear side first onto the
chosen position.
• Put the cover (B) on, ensuring that
it latches fully into place.

6.2.2 Screw mounting

When selecting the installation
location, check for electrical wires
and power supply cables.
3
18
