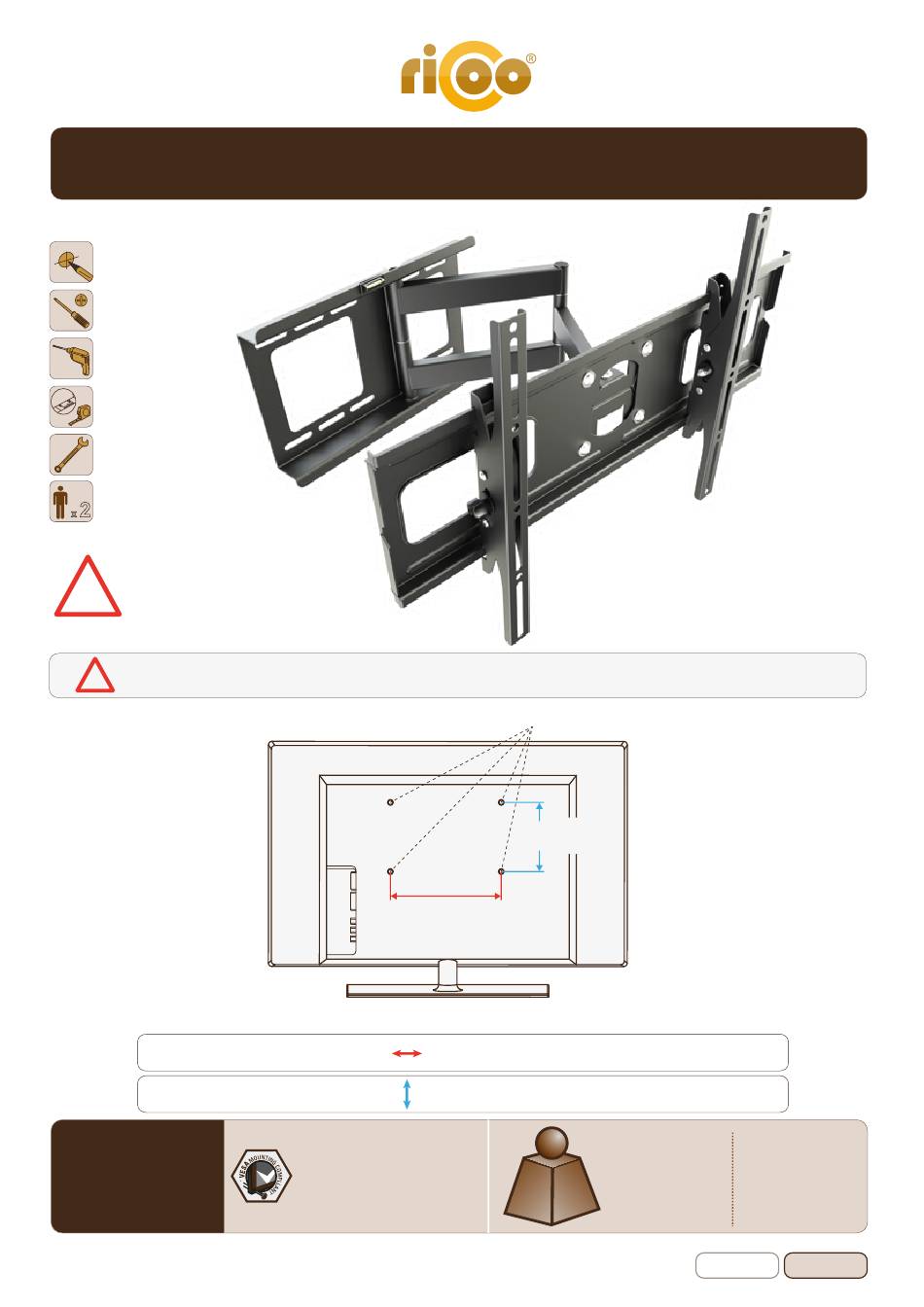

Full Motion LED, LCD TV Wall Mount
2
x
CAUTION: DO NOT EXCEED
!
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
! Please check BEFORE installation distance between VESA mounting holes on your display!
This wall mount supports the following distance between holes:
Horizontally
Vertical / Perpendicularly
RW R05
RW R15
All manuals and user guides at all-guidesbox.com
VESA - Mounting holes
Horizintally
100x100 400x100 500x400
100x200 400x200 500x500
200x100 400x300 600x100
200x200 400x400 600x200
300x100 500x100 600x300
300x200 500x200 600x400
300x300 500x300
Vertical /
Perpendicularly
Display back
min. 70mm - max. 600mm
min. 70mm - max. 400mm
VESA 400x400
55kg
(121lbs)
MAX
ASSEMBLY MANUAL
v.17.03
VESA 600x400
95kg
(209lbs)
MAX
