Parts and Accessories - Installation Instruction

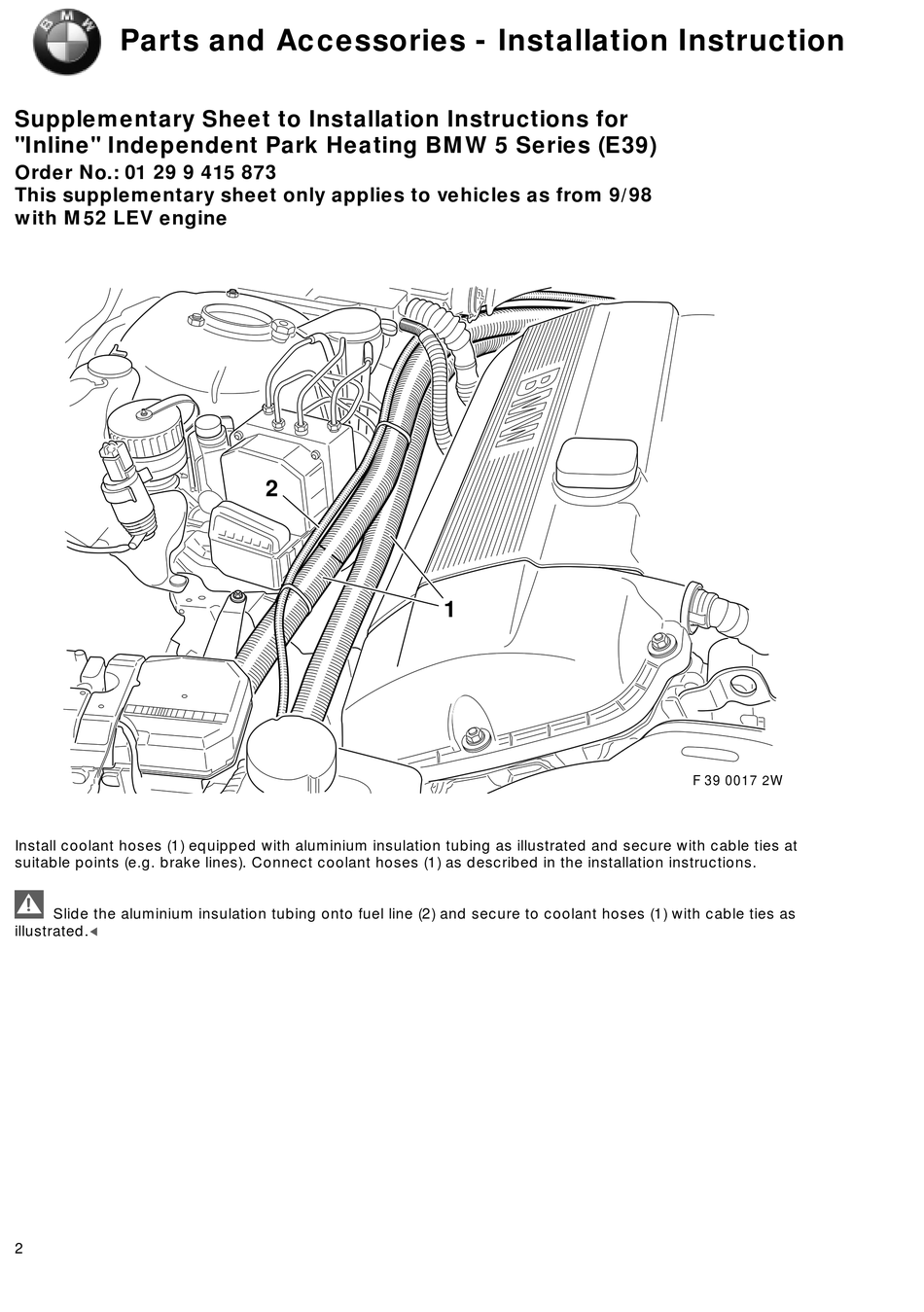

Supplementary Sheet to Installation Instructions for
"Inline" Independent Park Heating BMW 5 Series (E39)
Order No.: 01 29 9 415 873
This supplementary sheet only applies to vehicles as from 9/98
with M52 LEV engine
2
1
F 39 0017 2W
Install coolant hoses (1) equipped with aluminium insulation tubing as illustrated and secure with cable ties at
suitable points (e.g. brake lines). Connect coolant hoses (1) as described in the installation instructions.
a
Slide the aluminium insulation tubing onto fuel line (2) and secure to coolant hoses (1) with cable ties as
illustrated.
