VC-A57SMIGY)
VC-A57YMI(GY)
Ae
eshte?
Bebe.
aS

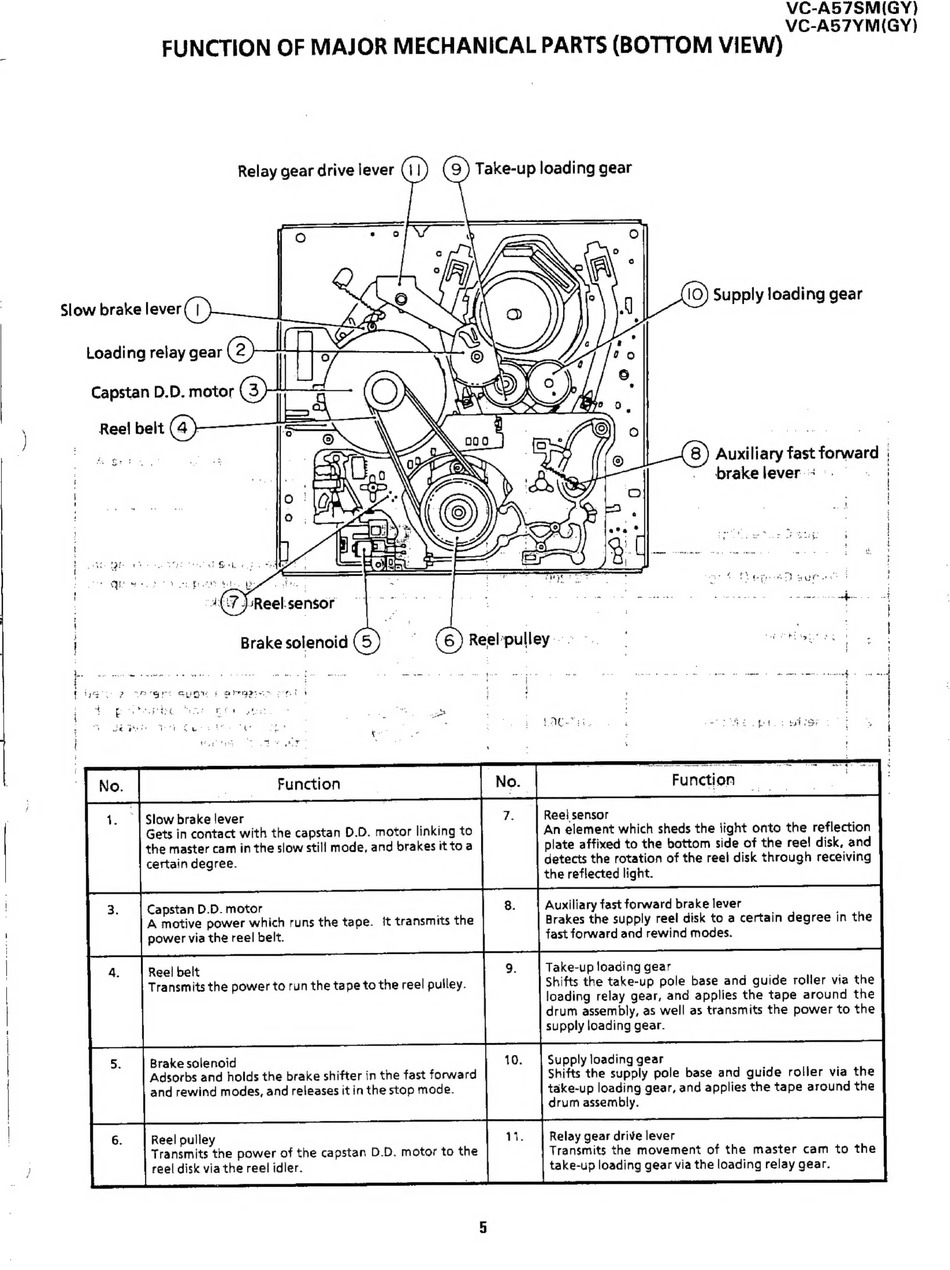

(10) Supply loading gear
(8) Auxiliary fast forward
-
brake lever =
Slow brake lever
Capstan D.D. motor
A motive power which runs the tape.
It transmits the
power via the reel belt.
Reel belt
Brake solenoid
Adsorbs and holds the brake shifter in the fast forward
and rewind modes, and releases it in the stop mode.
Reel pulley
Transmits the power of the capstan D.D. motor to the
reel disk via the reel idler.
Function
=
Reei sensor
Auxiliary fast forward brake lever
Brakes the supply reel disk to a certain degree in the
fast forward and rewind modes.
Take-up loading gear
Shifts the take-up pole base and guide roller via the
loading relay gear, and applies the tape around the
drum assembly, as well as transmits the power to the
supply loading gear.
Supply loading gear
Shifts the supply pole base and guide roller via the
take-up loading gear, and applies the tape around the
drum assembly.
Relay gear drive lever
Transmits the movement of the master cam to the
take-up loading gear via the loading relay gear.
:
