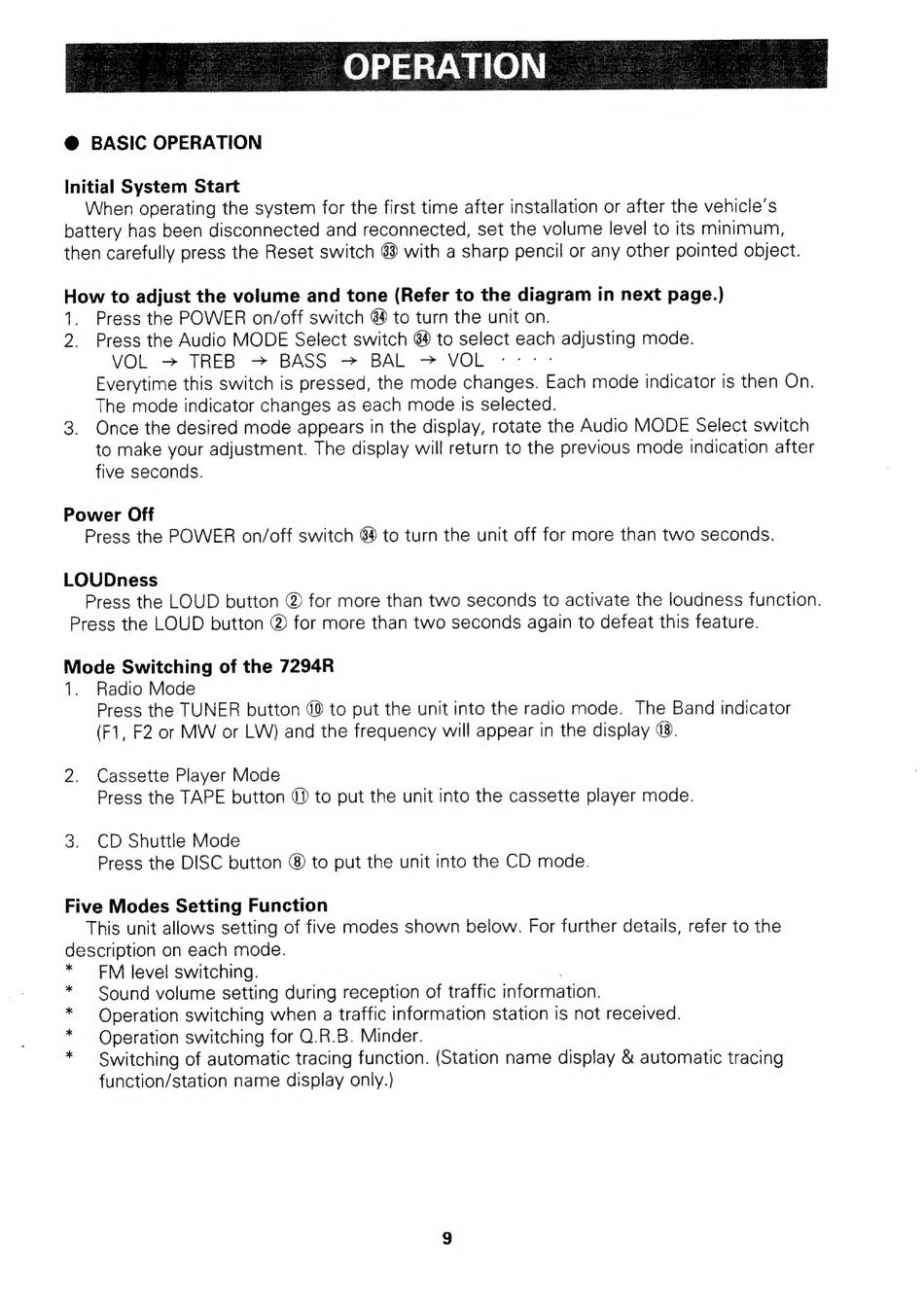

@ BASIC OPERATION
Initial System Start
When operating the system for the first time after installation or after the vehicle's
battery has been disconnected and reconnected, set the volume level to its minimum,
then carefully press the Reset switch $3 with a sharp pencil or any other pointed object.
1. Press the POWER on/off switch 8 to turn the unit on.
2. Press the Audio MODE Select switch 64 to select each adjusting mode.
VOL > TREB ~ BASS ~ BAL > VOL ::--:
Power Off
Press the POWER on/off switch @4 to turn the unit off for more than two seconds.
LOUDness
Press the LOUD button @ for more than two seconds to activate the loudness function.
Press the LOUD button @ for more than two seconds again to defeat this feature.
Mode Switching of the 7294R
1. Radio Mode
Press the TUNER button 40 to put the unit into the radio mode. The Band indicator
(F1, F2 or MW or LW) and the frequency will appear in the display 48.
2. Cassette Player Mode
Press the TAPE button @ to put the unit into the cassette player mode.
3. CD Shuttle Mode
Press the DISC button ® to put the unit into the CD mode.
Five Modes Setting Function
This unit allows setting of five modes shown below. For further details, refer to the
Gescription on each mode.
FM level switching.
Sound volume setting during reception of traffic information.
Operation switching when a traffic information station is not received.
Operation switching for Q.R.B. Minder.
Switching of automatic tracing function. (Station name display & automatic tracing
function/station name display only.)
* * + *
