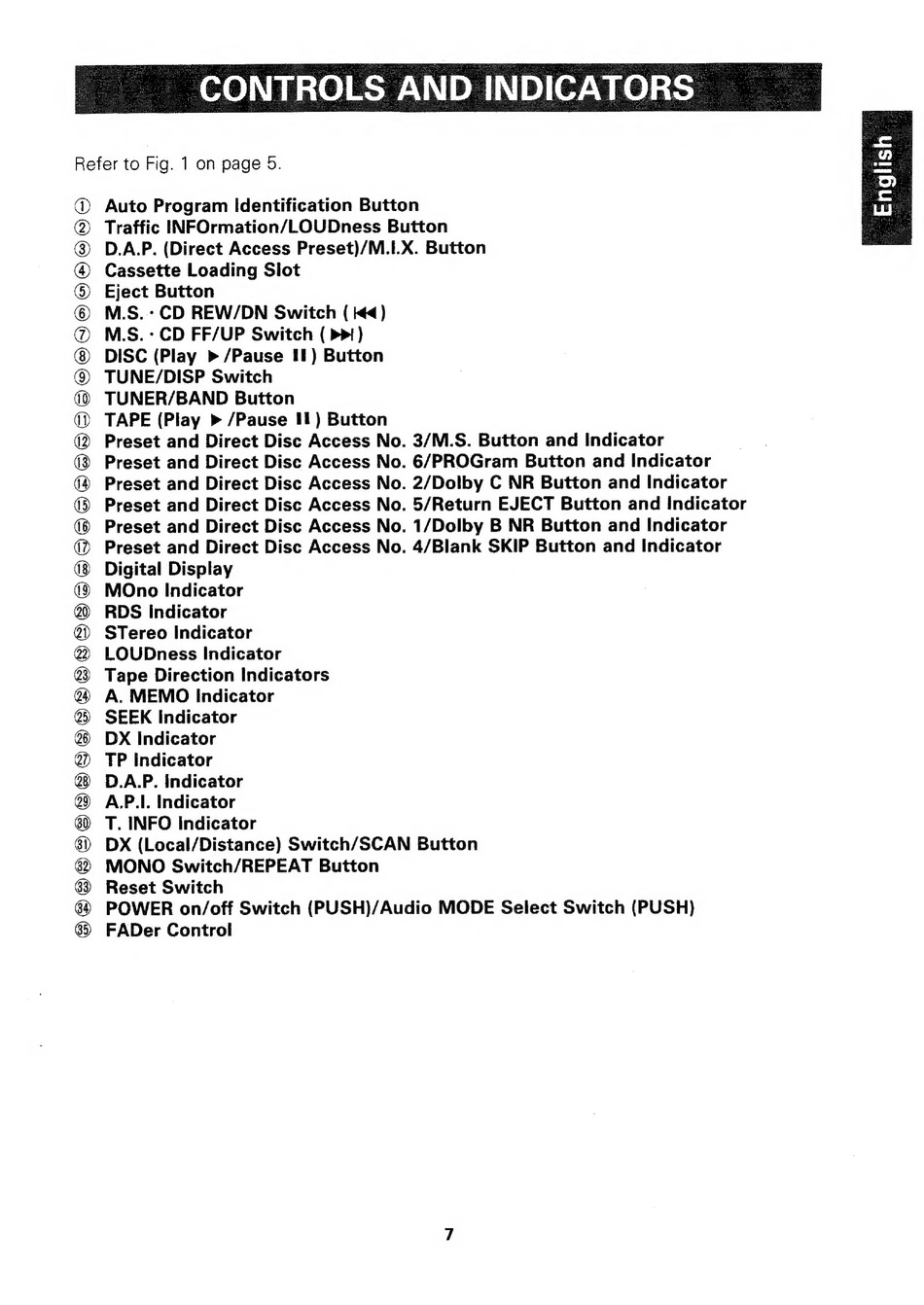

Alpine 7294R Bedienungsanleitung Seite 7

Refer to Fig. 1 on page 5.
@®DO8S OS OH PS OPSOP SH OQVSO@ QOS QO@OQQQo@oOooo
Auto Program Identification Button
Traffic INFOrmation/LOUDness Button
D.A.P. (Direct Access Preset)/M.I.X. Button
Cassette Loading Slot
Eject Button
M.S.- CD REW/DN Switch ( <)
M.S. - CD FF/UP Switch ( >>!)
DISC (Play >» /Pause II) Button
TUNE/DISP Switch
TUNER/BAND Button
TAPE (Play > /Pause II) Button
Preset and Direct Disc Access No. 3/M.S. Button and Indicator
Preset and Direct Disc Access No. 6/PROGram Button and Indicator
Preset and Direct Disc Access No. 2/Dolby C NR Button and Indicator
Preset and Direct Disc Access No. 5/Return EJECT Button and Indicator
Preset and Direct Disc Access No. 1/Dolby B NR Button and Indicator
Preset and Direct Disc Access No. 4/Blank SKIP Button and Indicator
Digital Display
MOno Indicator
RDS Indicator
STereo Indicator
LOUDness Indicator
Tape Direction Indicators
A. MEMO Indicator
SEEK Indicator
DX Indicator
TP Indicator
D.A.P. Indicator
A.P.1. Indicator
T. INFO Indicator
DX (Local/Distance) Switch/SCAN Button
MONO Switch/REPEAT Button
Reset Switch
POWER on/off Switch (PUSH)/Audio MODE Select Switch (PUSH)
FADer Control
