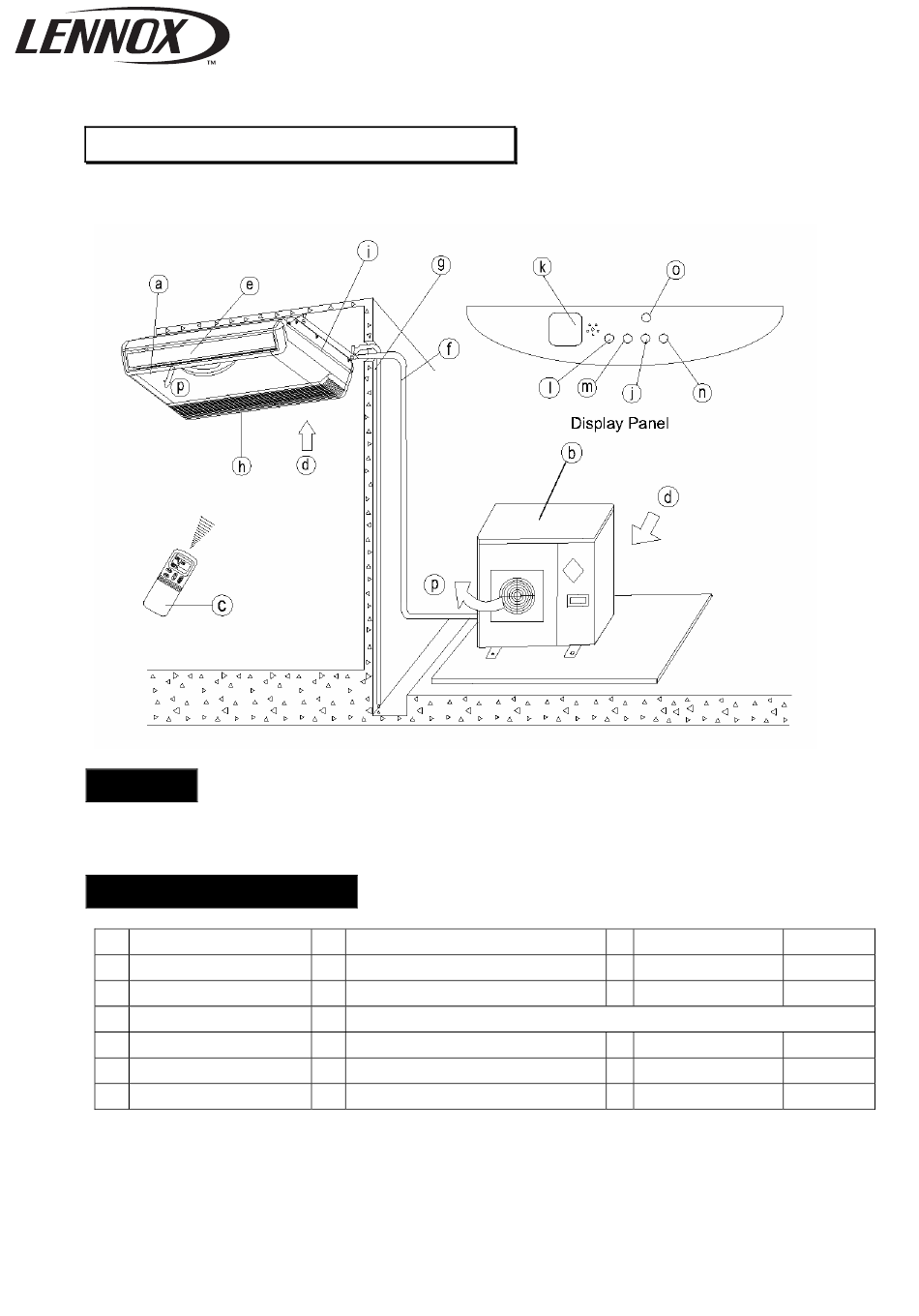

PARTS NAMES

The air conditioner consists of the indoor unit, the outdoor unit, the connecting pipe and the
remote controller.
NOTICE!
The chart is based on modell 24 type. So, a little differences may exist on the outlook and
functions from yours.
NAMES AND FUNCTIONS
a indoor unit
d air-in
g drain hose
i installation part
k infrared signal receiver
m timer indicator
o temporary button
b outdoor unit
e air flow louver (at air outlet)
h air inlet (with air filter in it)
j FAN/DEF indicator
l operation lamp
n alarm indicator
P air-out
2
c remote controller
f connecting pipe
(For cooling and heating type, it's DEF.,for cooling only type, it's FAN)
