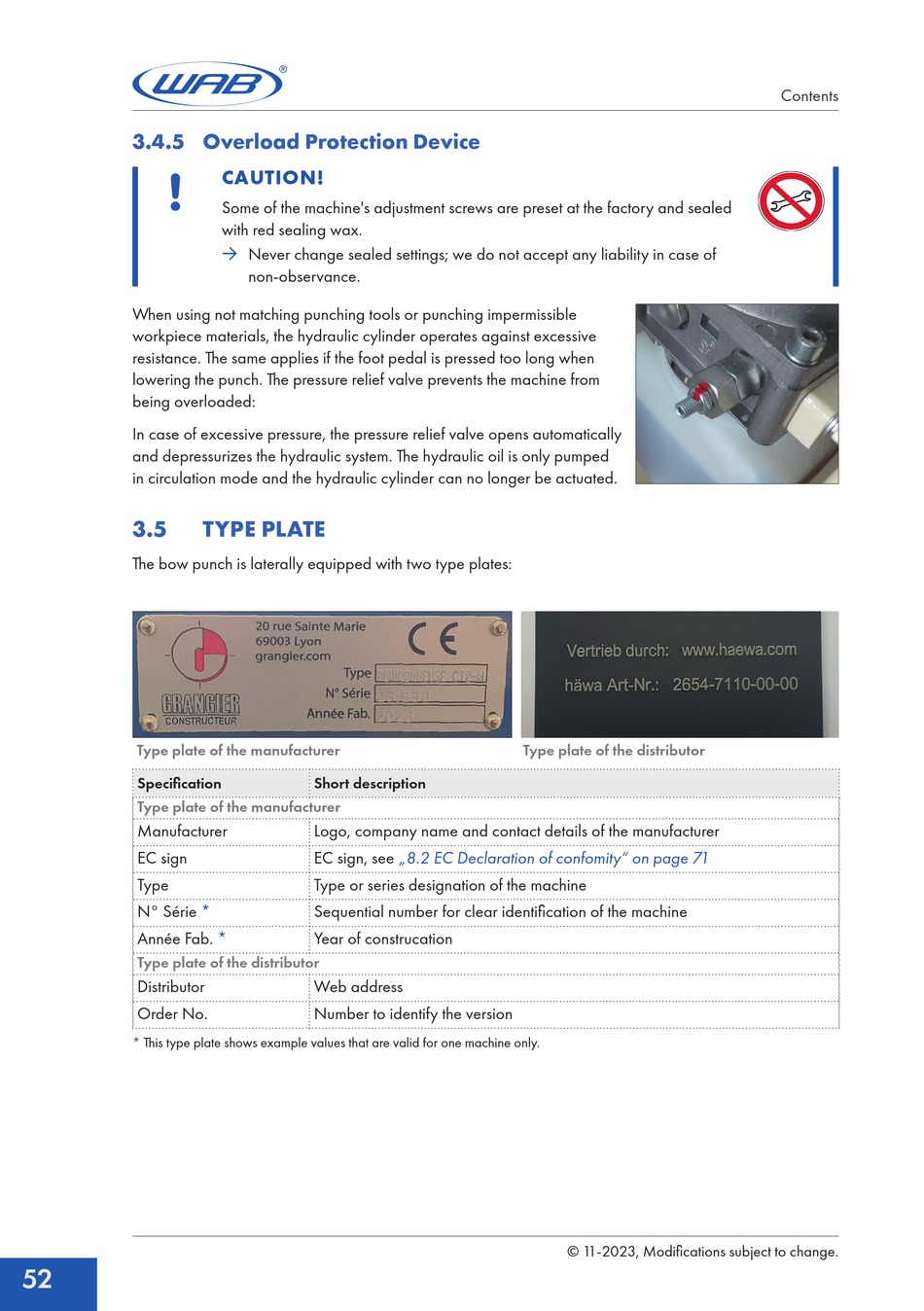

3.4.5 Overload Protection Device
When using not matching punching tools or punching impermissible
workpiece materials, the hydraulic cylinder operates against excessive
resistance. The same applies if the foot pedal is pressed too long when
lowering the punch. The pressure relief valve prevents the machine from
being overloaded:
In case of excessive pressure, the pressure relief valve opens automatically
and depressurizes the hydraulic system. The hydraulic oil is only pumped
in circulation mode and the hydraulic cylinder can no longer be actuated.
3.5
The bow punch is laterally equipped with two type plates:
Type plate of the manufacturer
Specification
Type plate of the manufacturer
Manufacturer
EC sign
Type
N° Série *
Année
Fab. *
Type plate of the distributor
Distributor
Order No.
* This type plate shows example values that are valid for one machine only.
52
CAUTION!
Some of the machine's adjustment screws are preset at the factory and sealed
with red sealing wax.
Æ
Never change sealed settings; we do not accept any liability in case of
non-observance.
TYPE PLATE
Short description
Logo, company name and contact details of the manufacturer
EC sign, see
Type or series designation of the machine
Sequential number for clear identification of the machine
Year of construcation
Web address
Number to identify the version
Type plate of the distributor
„8.2 EC Declaration of confomity" on page 71
