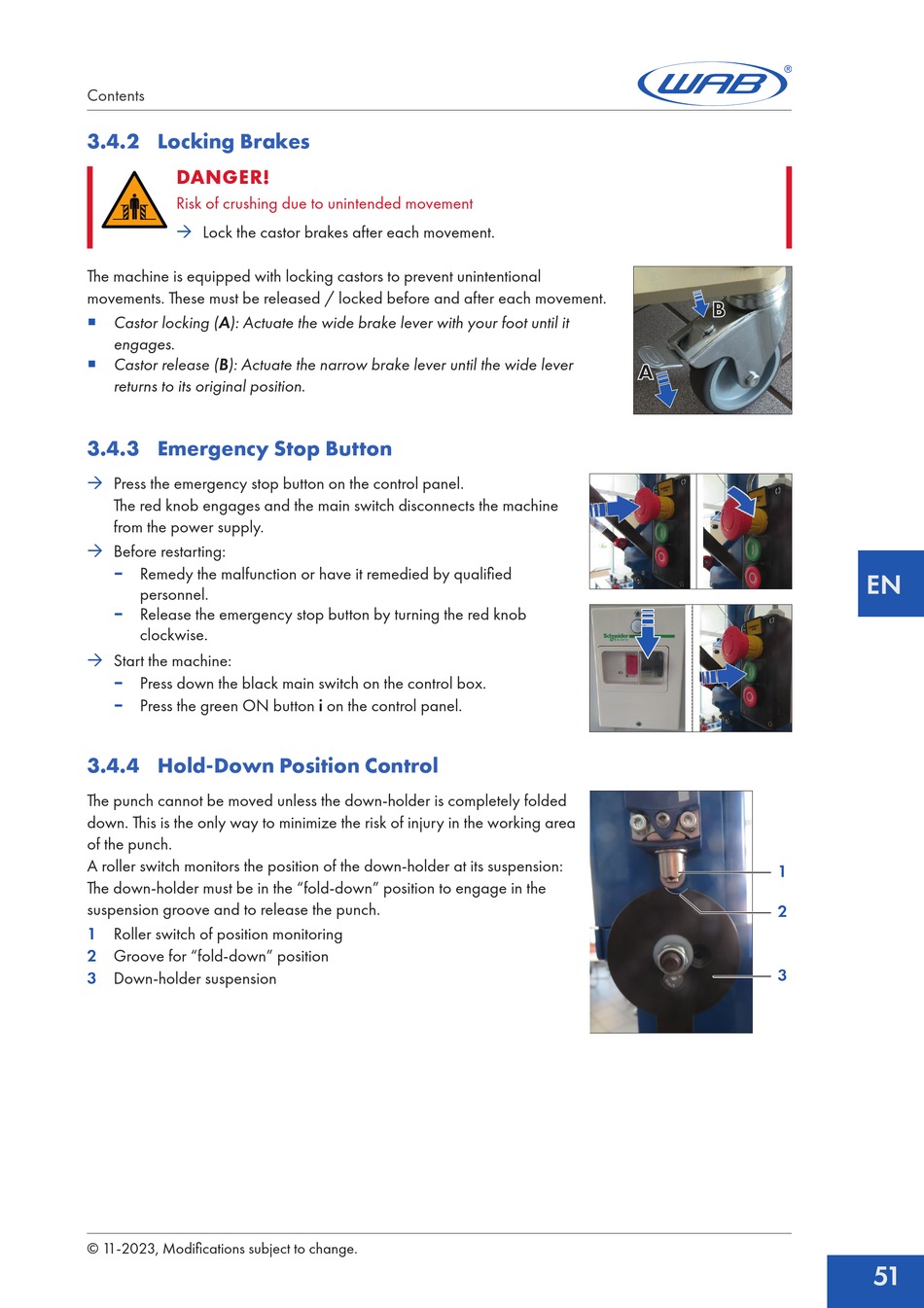

3.4.2 Locking Brakes

DANGER!
Risk of crushing due to unintended movement
Æ Lock the castor brakes after each movement.
The machine is equipped with locking castors to prevent unintentional
movements. These must be released / locked before and after each movement.
Castor locking (A): Actuate the wide brake lever with your foot until it
ƒ
engages.
Castor release (B): Actuate the narrow brake lever until the wide lever
ƒ
returns to its original position.

3.4.3 Emergency Stop Button

Æ Press the emergency stop button on the control panel.
The red knob engages and the main switch disconnects the machine
from the power supply.
Æ Before restarting:
ɚ
Remedy the malfunction or have it remedied by qualified
personnel.
ɚ
Release the emergency stop button by turning the red knob
clockwise.
Æ Start the machine:
ɚ
Press down the black main switch on the control box.
ɚ Press the green ON button i on the control panel.

3.4.4 Hold-Down Position Control

The punch cannot be moved unless the down-holder is completely folded
down. This is the only way to minimize the risk of injury in the working area
of the punch.
A roller switch monitors the position of the down-holder at its suspension:
The down-holder must be in the "fold-down" position to engage in the
suspension groove and to release the punch.
1
Roller switch of position monitoring
2 Groove for "fold-down" position
3
Down-holder suspension
