TC Electronic DITTO X2 LOOPER Schnellstartanleitung

Quick Start Guide

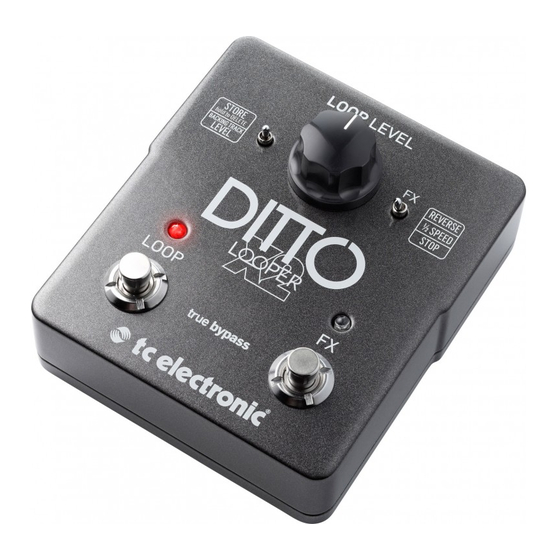

DITTO X2 LOOPER
Highly Intuitive Looper Pedal with Dedicated Stop Button and Loop Effects
(7)
(4)
(EN) Controls
(1) Power input - The power input of this pedal
is a standard 5.5 / 2.1 mm DC plug (centre =
negative). To power up your pedal, connect
a power supply to its power input socket.
Ditto X2 Looper requires a 9 V power supply
providing 100 mA or more (not supplied).
(2)
To minimize hum, use a power supply with
isolated outputs. You can also run Ditto X2
Looper using batteries.
(2) Audio inputs - This pedal has two standard
¼" jack TS inputs for stereo operation. If your
signal source is mono (e.g. a regular guitar
or a mono effect pedal), connect it to the
MONO input.
(3) Audio outputs - This pedal has two standard
¼" TS outputs for stereo operation. If the next
device in the signal chain is mono, connect it
to the MONO output.
(4) LOOP footswitch and LED - Use this
footswitch to control all loop-related
functions of the pedal (record, playback,
undo/ redo, clear).
V 2.0
A54-00002-90390
(7)
(4)
(6)
(8)
(5)
(5) FX footswitch and LED - Use this footswitch
to either control one of Ditto X2 Looper's
built-in effects or to stop loop playback. The
assignment of this footswitch is determined
by the setting of the FX selector switch.
(3) (6) Loop / backing track level control knob - (1) (9)
Use the LOOP LEVEL control knob to control
the level of your loops. Use the LOOP LEVEL
control knob while holding down the Store /
Backing track level switch to control the level
of your backing track.
(7) Store / Delete / Backing track level switch
To store the current loop as a backing track,
• •
nudge this switch up.
To delete the stored loop/backing track,
• •
hold this switch in the up position for
three seconds.
To set the level of the backing track, turn the
• •
Loop level control knob while holding this
switch in the down position.
(2) (3) (1) (9)
(8) FX selector switch - Use this switch to
determine the function of the FX footswitch.
Available settings are:
Reverse: FX footswitch toggles the Reverse
• •
effect on and off.
½ Speed: FX footswitch toggles the Half
• •
speed effect on and off.
Stop: FX footswitch acts as a dedicated
• •
stop footswitch.
(9) USB port - Connect Ditto X2 Looper to a
computer to transfer loops between your
computer and Ditto X2 Looper. If there should
be firmware updates for this device, they can
also be installed using the USB port.
(6)
(8)
(5)
