plugged on to the power pack (Pic. 9). After plugging the power pack cable into the jack "DC
IN" (Pic. 8‑g) and connecting the power pack to the power socket the QUANTOFIX
ready for operation.
To ensure safe functioning of the instrument, only use the included power supply!

8.6 How to start the instrument

You can find the On / Off switch on the back of the instrument. Turn on the instrument by
pressing the switch. Right after switching on, the instrument performs a self‑test. The touch
screen lights up and the start screen appears. If a serious error is detected during the self‑test,
no measurements can be performed. In this case, contact the MACHEREY‑NAGEL technical
service.

8.7 How to switch off the instrument

Always switch off the device after use by pressing the on / off switch. If you do not use the
device for a longer period of time, disconnect the device from the power outlet.

8.8 How to load the printer paper

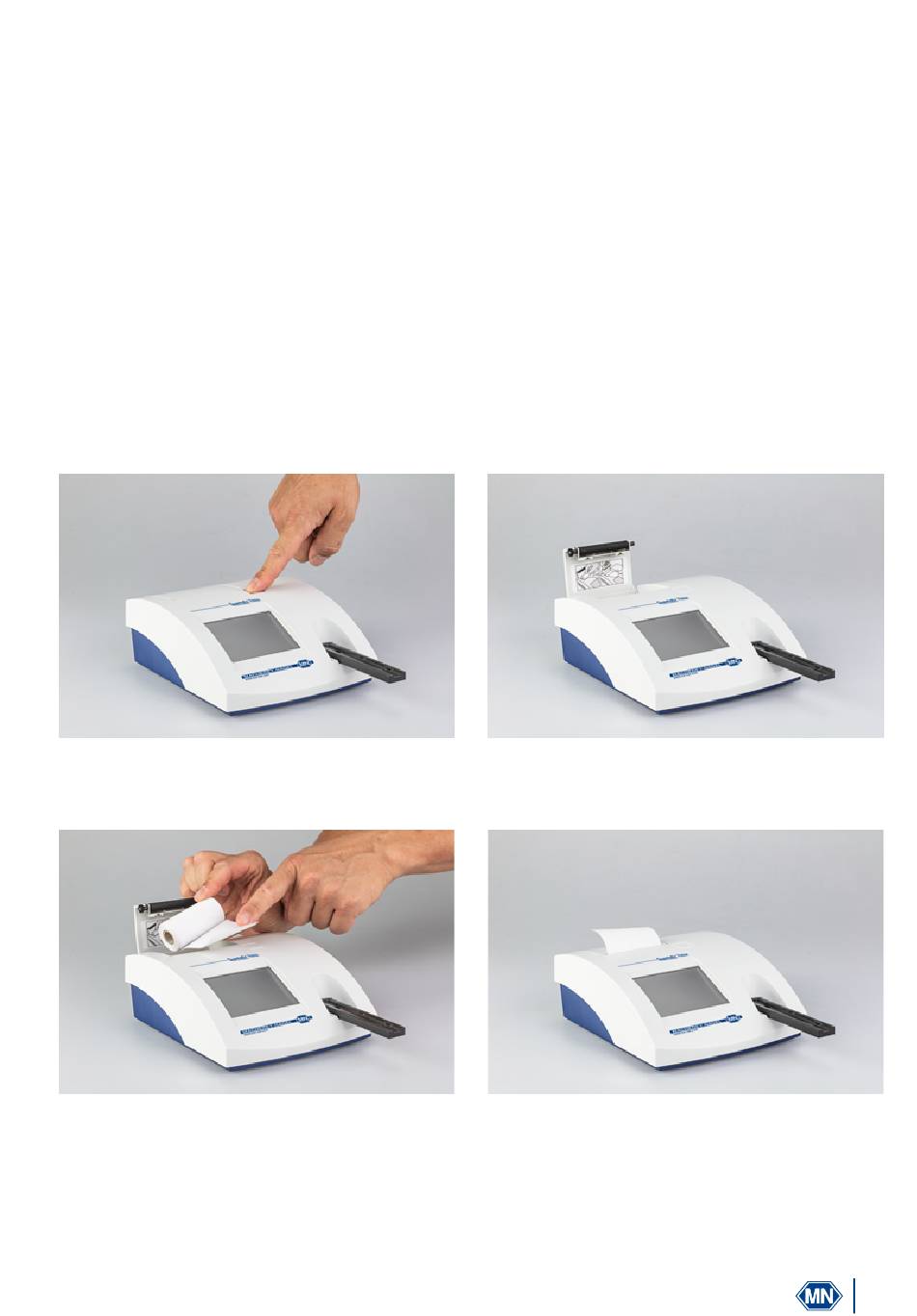

Pic. 11: Printer A
Open the printer flap by pressing the rectangular key next to the printer flap (Pic. 11).
Pic. 13: Printer C
Unroll the paper roll by 5 cm and place the roll in the paper compartment with the end on the
lower side. Fix the end of the paper to the housing with your finger while closing the flap (Pic.
13 + Pic. 14).
Manual QUANTOFIX
Pic. 12: Printer B
Pic. 14: Printer D
Relax EN, V2.00 / 02.22
®
