NV700 Instruction Manual

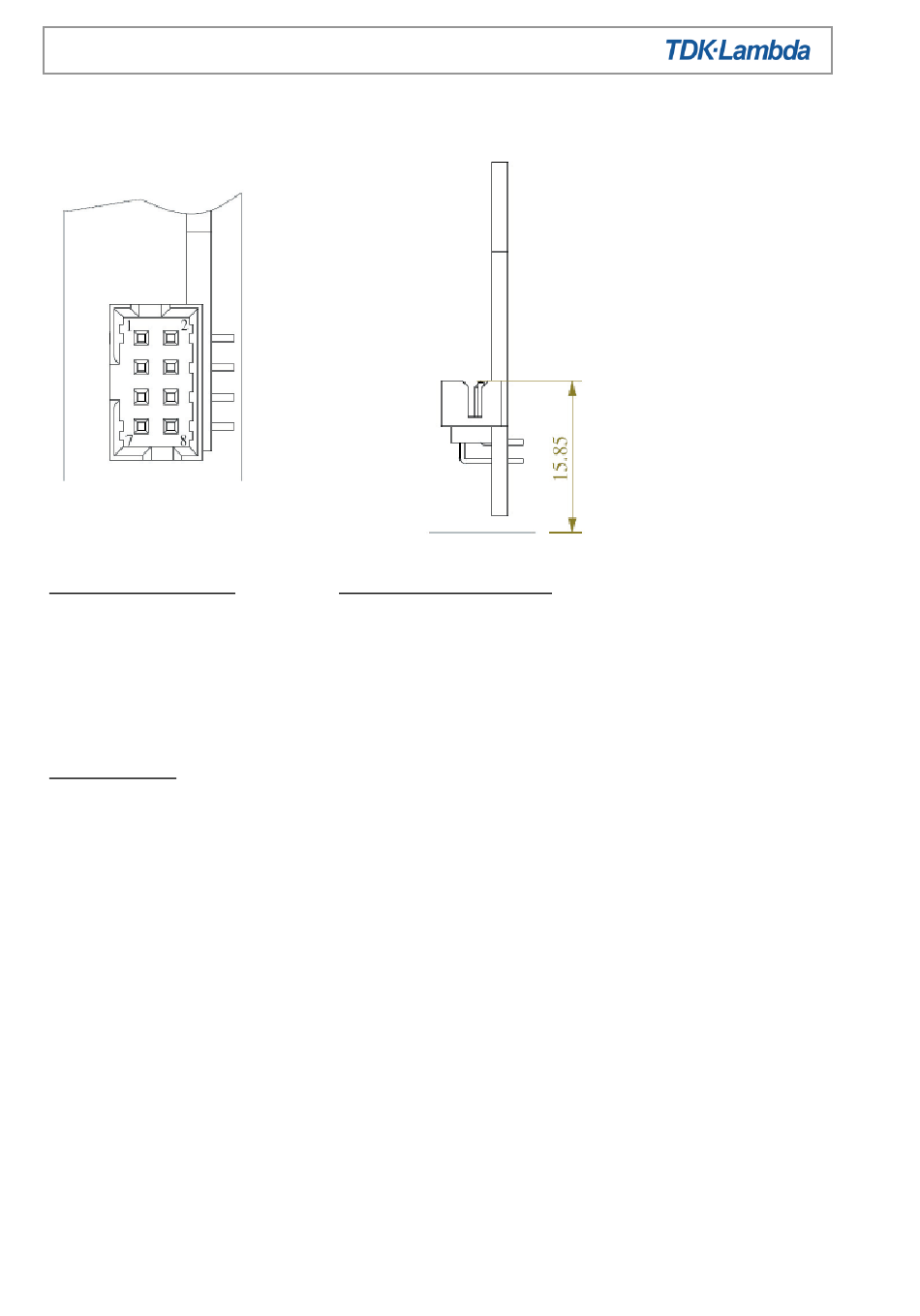

Primary option & single slot module
Primary Option Connector:
1 V Standby
2 V Standby Return
3 INH Logic 1
4 INH Logic 0
5 Power Good Collector
6 Power Good Emitter
7 AC Fail Collector
8 AC Fail Emitter
Mating Connector
Housing: Molex 51110-0860
Crimp pin: 50394
Hand crimp tool: 69008-0959
Single Slot Module Connector
1 + 12V
2 + 12V
3 + 12V
4 0V
5 0V
6 0V
7 -12V
9 -12V
