2.3 Sending Open Commands
Once the remote control has been linked
and the open button configured on the
home screen, the JMARemotesUSER app
can now be used to send commands to the
M-BT remote control connected to the BT
Multiuser Box and activate the door opening
mechanism. Make sure that the M-BT remote
control is transmitting. To do this, hold
buttons 2 and 3 until the green LED starts
to flash.
As soon as the M-BT remote control starts to
flash, release the buttons. The remote control
will now be transmitting constantly and the
app will be able to locate and activate the
corresponding buttons.
Generally speaking, the app will take between
5 and 10 seconds to detect the remote control
24
All manuals and user guides at all-guides.com
that is transmitting provided that you are
within Bluetooth range. Once detected, the
buttons are activated and you will be able
to press them from the app to send the
opening command.
When the remote control receives
the opening command and activates
the RF connection, the button will be
deactivated. Once the remote control
has finished the RF transmission to the
door receiver, the Bluetooth signal is
reactivated and the app can detect it in
order to reactivate the buttons.
Buttons from up to 4 physical M-BT
remote controls can be active on the
home screen if one button from each has
been configured.

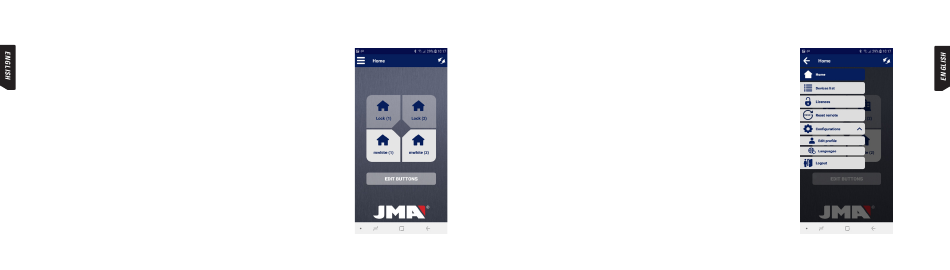

2.4 Settings Menu
The app has a settings menu with the following options:
1) List of remote controls
This option displays the remote controls linked to the app, allowing their
name and logo to be changed or items to be removed from the list.
2) Consult, add or remove licences
See Section 3 of the LICENCES Manual
3) M-BT remote control reset
If, at any time, you see that the app detects a remote control and the
buttons are active but the remote control or the door does not respond,
this option can be used to fully reset the M-BT remote control.
4) Edit profile
This can be used to change the user password.
5) Change language
This can be used to select the language in which to use the app
25
