Operating Instruction
If the circuit breaker of the short circuit pro-
tection has tripped, it will auto-rest within no
more than 60 seconds.
Activate components with positive
voltage only
When technician tests the components,
technician can use the multi functional auto
tester to provide positive voltage to the test-
ing components. To do this, pleas follow the
procedure:

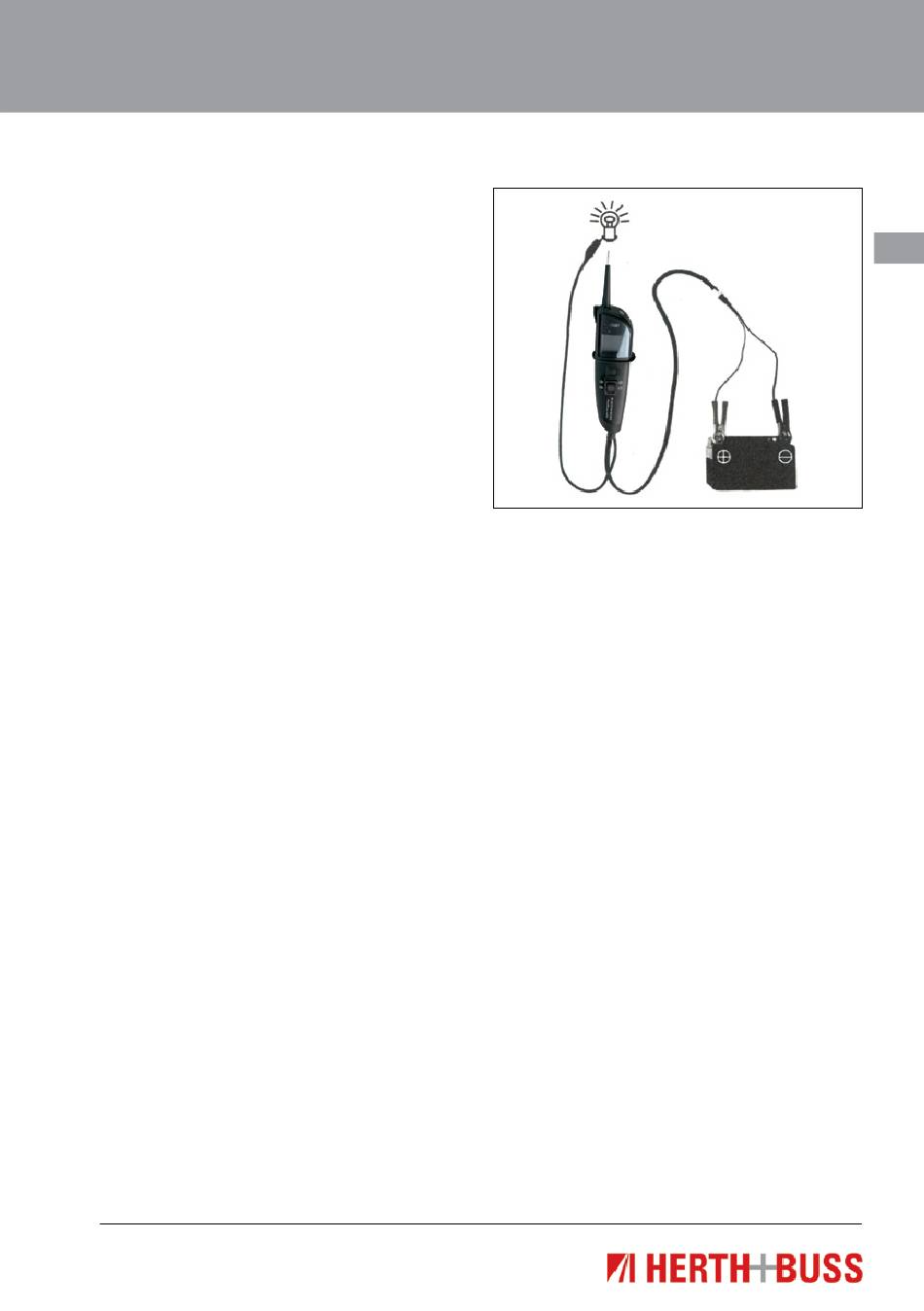

1. Contact the the multi functional auto tes-
ter tip with the positive pole of the com-
ponents. If the green LED is on ,it means
the testing component is conductible.
2. As the green LED goes on, please press
the polar switch forward and then release
it quickly.
If the LED goes from green to red, you may
proceed further testing. If the green LED
turns off and red LED doesn't turns on, or
if the circuit breaker of the short circuit pro-
tection tripped, it means the multi functional
auto tester has overloaded. This may due to
the following reasons:
9
The component is short circuit or it has
been connected to the ground/negative
pole directly.
The component is a high current
component.
If the circuit breaker of the short circuit pro-
tection has tripped, it will auto-rest within no
more than 60 seconds.
Please operate this function with schematic
and correct testing procedure because ap-
plying voltage arbitrarily may cause damage
to components.
Use tip to apply positive voltage, which can
be helpful to diagnose the components.
When applying current to the components,
please push the switch before contact the
tip with the components. In this case, the
arcing will take place between the tip and
the component instead of the switch. And so
it can increase the life time of the switch.
