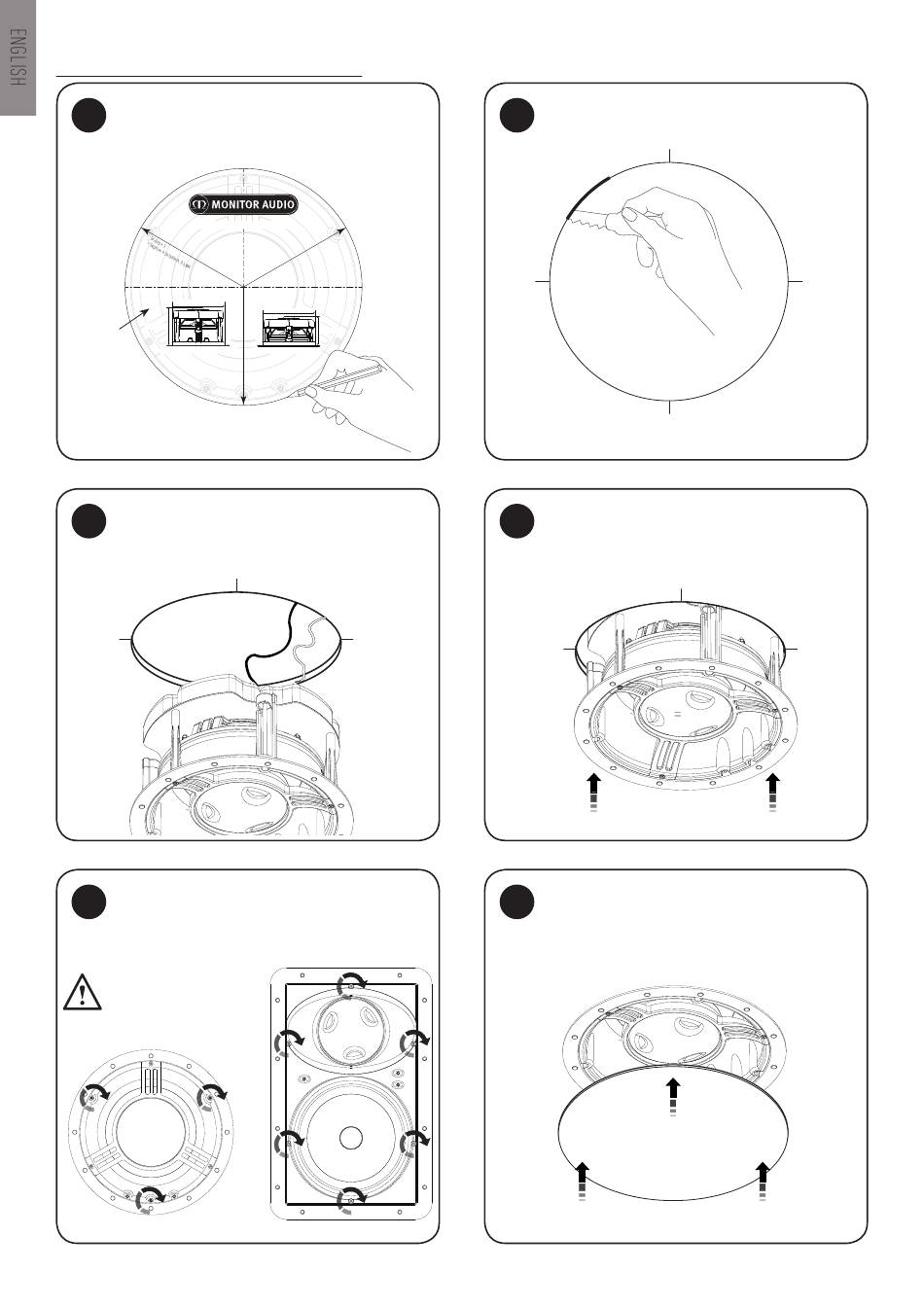

Fitting the custom install loudspeakers
draw around template and mark centre
1
lines if necessary
CUSTOM INSTALLATION SERIES
247mm (9 3/4 ")
156mm (6 1/8 ")
Template
CT280-IDC, CT380-IDC, CT380-FX
connect speaker cables by pushing
3
down on the terminals and clamping the
bare wire in the through hole.
tighten 3 tri-grip screws on the inceiling
5
models or the 6 tri-grip screws on the in
wall models.
see over tightening
warning.
247mm (9 3/4 ")
121mm (4 3/4 ")
CT180, CT180-T2, CT280
cut around marked line
2
4 guide speaker into cut out
Fit grilles. they are held in place
6
magnetically and should 'snap' into place.
