1
G
Mains and Controls separated
1-10V/DALI
1 : Mains QPD
2 : QPD 3P
1
2
1a
Mains and Controls combined
1-10V/DALI
Bi-power
1 : QPD 5P
1
No Dim
1 : QPD 4P
2
2a

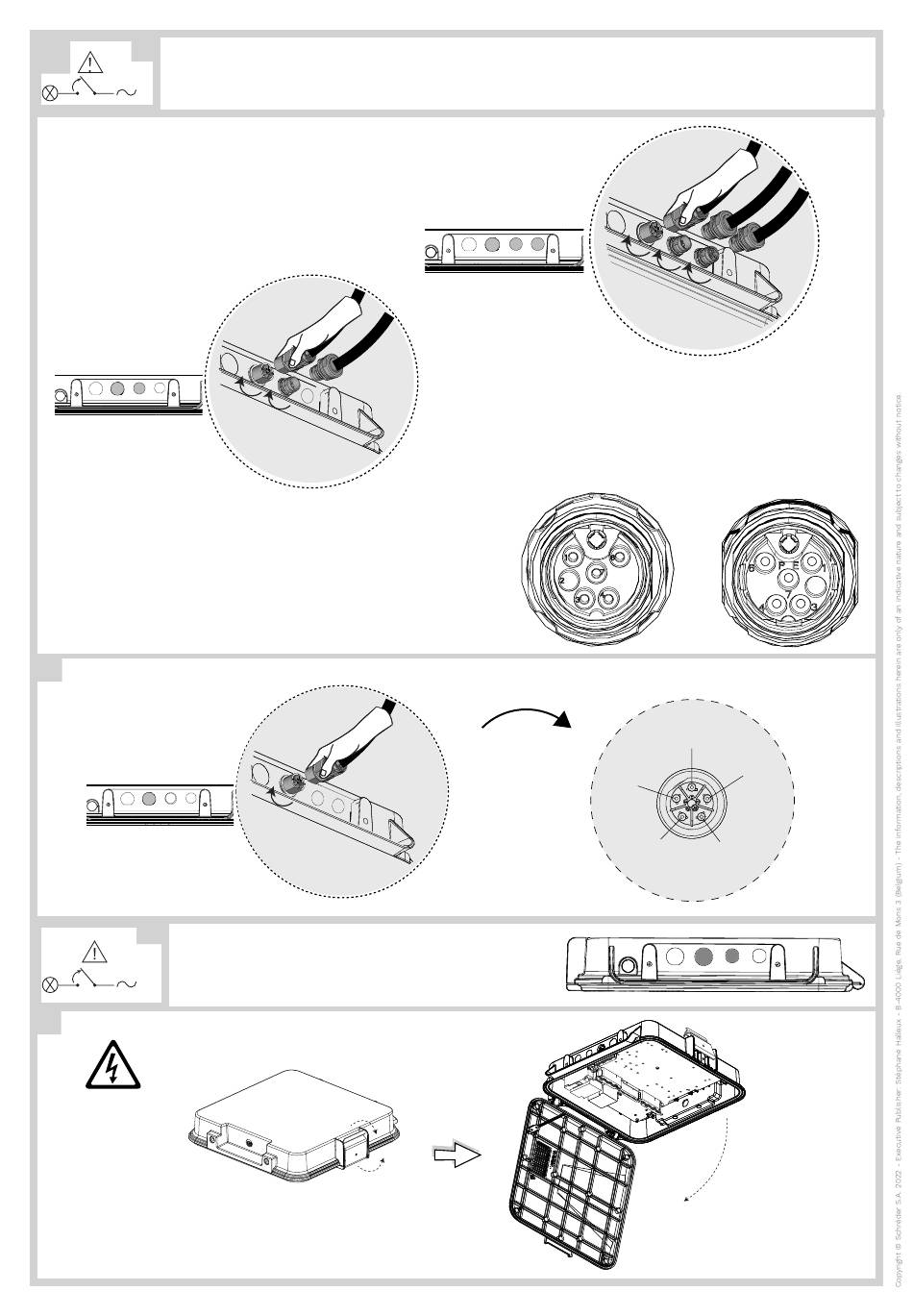

TFLEX can be equipped with QPD connectors or cable glands (delivered with or without cable).
01-55-960 | DOC-0018753 rev M | 08-2022
QPD CONNECTORS
1 : Mains QPD
2 : M17 In (Pin)
3 : M17 Out (Bus)
CABLE GLANDS
1
2
www.schreder.com
Lumgate
3
1
2
LUMGATE
Male connector
M17
(IN- Pin)
1-10V / DALI
3:
Com-
N:
Neutral
Female connector
M17
(OUT - Bus)
1:
Com+
2:
Phase
Green/Yellow:
Marked earth
M25
M20
3
8/10
