6.3

Installation

To remove an existing switch, follow the instructions of the respec-
tive switch manufacturer.
You can use the dimming actuator (see fig. 3) in a dimming circuit:
To install the dimming actuator, please proceed as follows:
• Switch off the circuit breaker for the power circuit (see figure 2).
• Place a suitable adapter on the dimming actuator and screw it
tight using the enclosed screws (see figure 4). For further details
on installation, refer to the operating instructions for the adapter.
• Connect the dimming actuator as shown in figure 3.
• Loosen the screws of the flush-mounted box and screw it slightly
outwards.
• Place the dimming actuator with the mounted adapter onto the
screws in the flush-mounted box and screw the screws back in
(see figures 5+6).

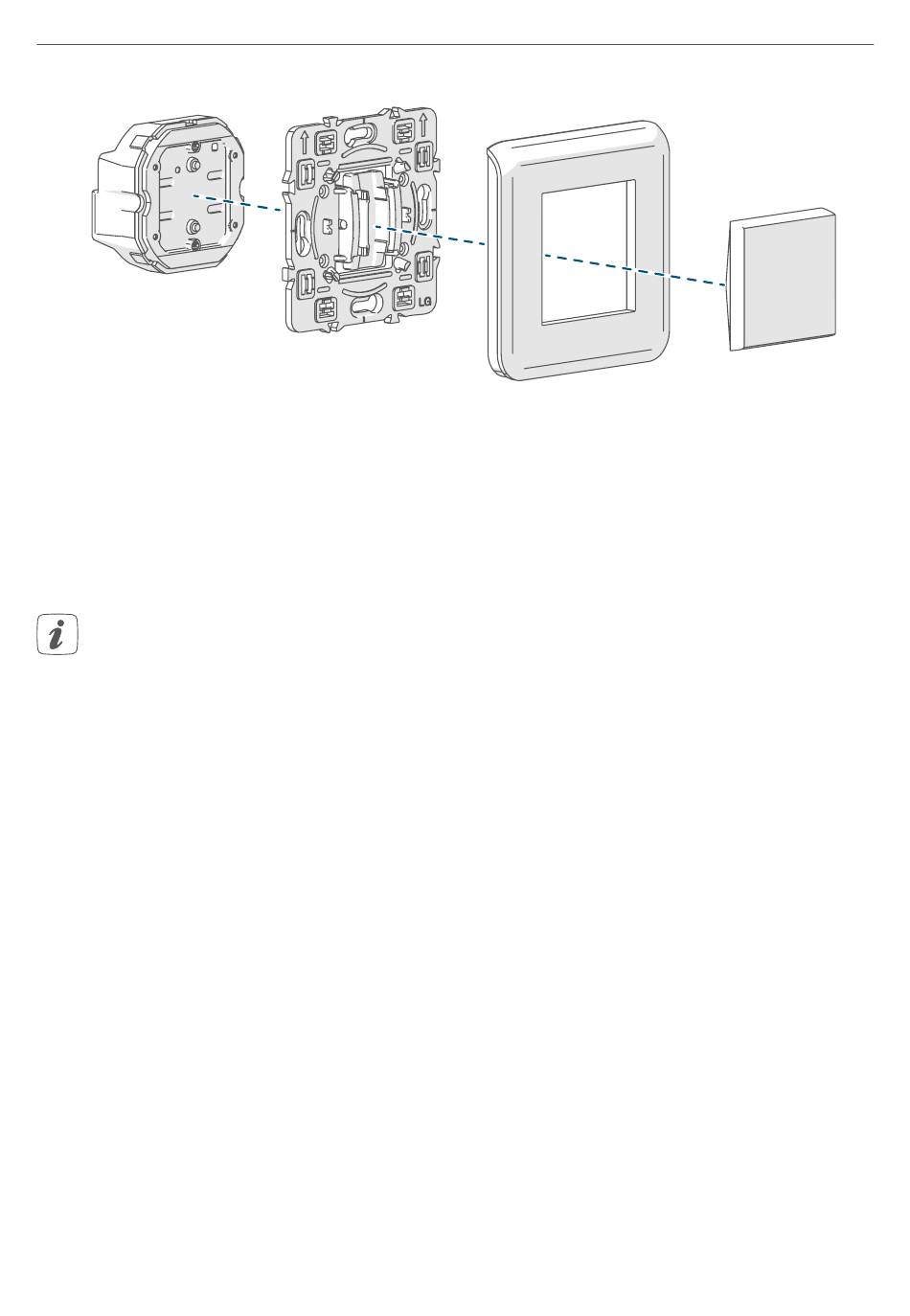

• Place the frame of your switch series on the dimming actuator
(see figure 7).
• Insert the rocker into the frame (see figure 8).
36
Suitable
Adapter
Suitable
adapter
Frame
(Example)
Frame
(example)
Rocker
(Example)
Rocker
(example)
