Technische Daten

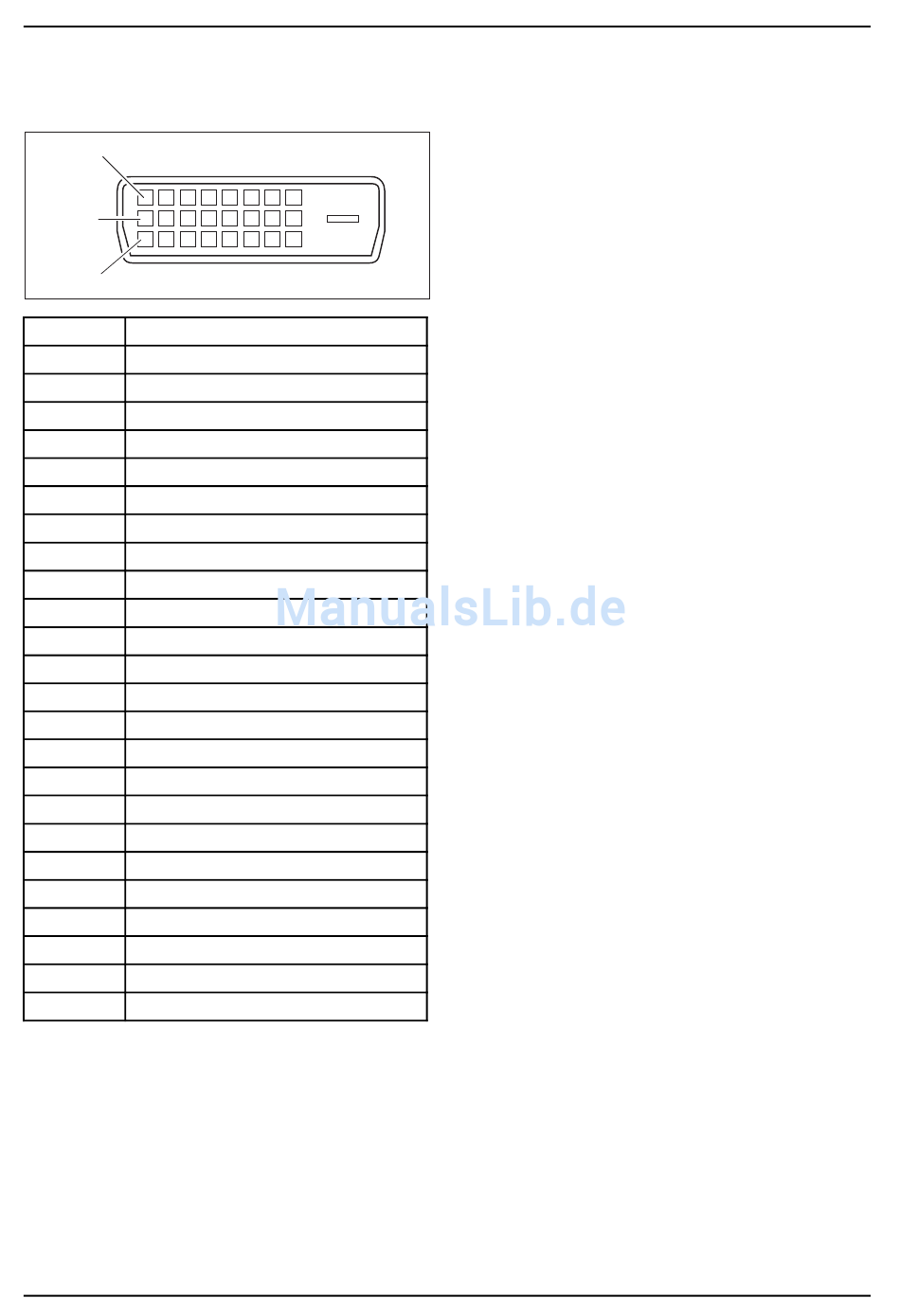

Anschluss DVI-D

1
9
17
Stift Bedeutung
1 TMDS Data2–
2 TMDS Data2+
3
TMDS Data 2/4 Shield
4 Not connected
5
Not connected
6 DDC Clock
7 DDC Data
8 Analogue Vertical Sync
9
TMDS Data1–
10 TMDS Data1+
11 TMDS Data 1/3 Shield
12 Not connected
13 Not connected
14 +5V Power
15
Ground
16 Hot Plug Detect
17 TMDS Data0–
18
TMDS Data0+
19 TMDS Data 0/5 Shield
20 Not connected
21 Not connected
22 TMDS Clock Shield
23 TMDS Clock+
24 TMDS Clock–
48 Fujitsu
