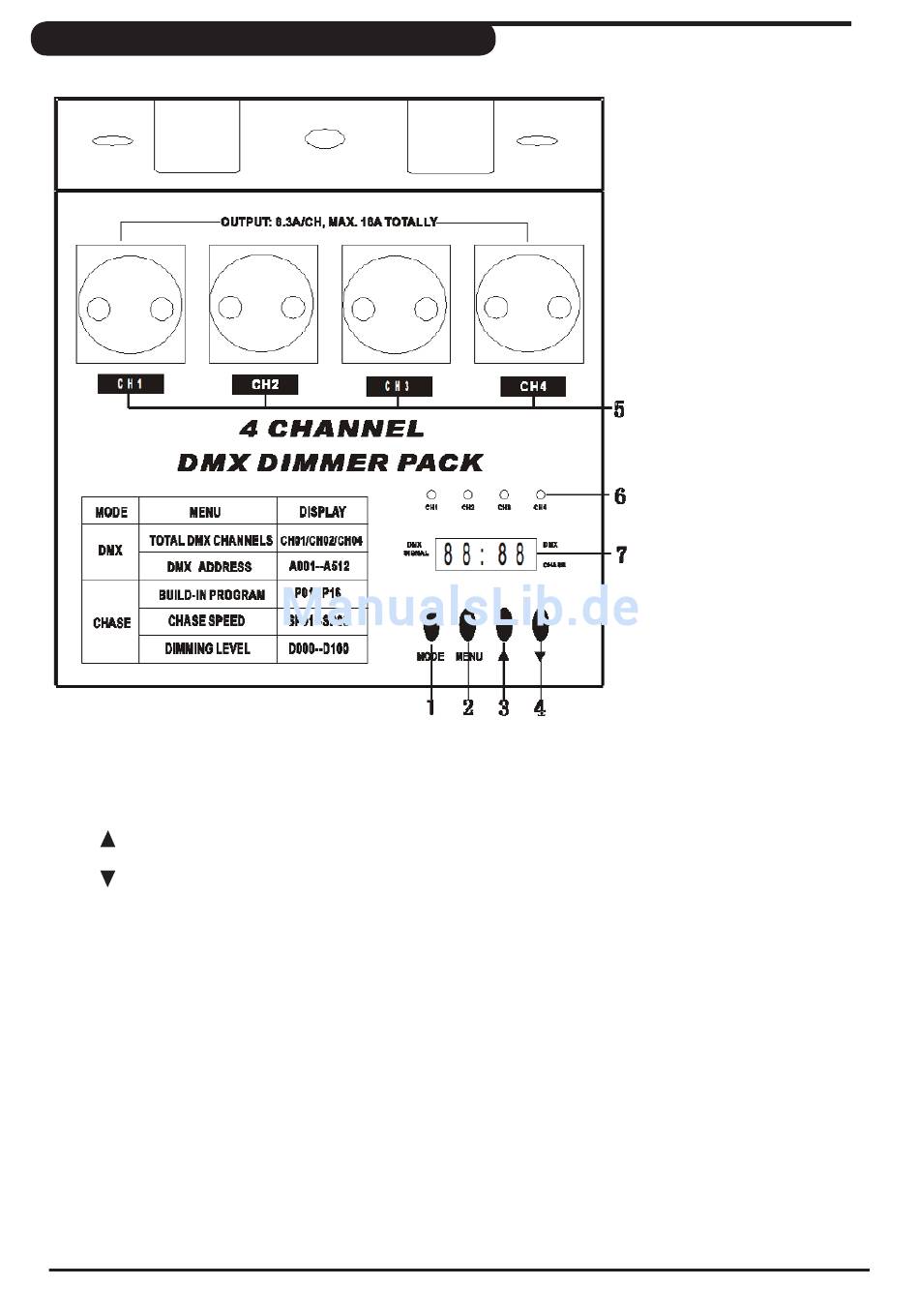

FRONT PANEL
01.
Mode Button: this button will switch the unit between dMX mode and CHase mode.
02.
MENU Button: this button will activate different functions in dMX mode or CHase mode.
03.
▲ Button: this button will increase the displayed value in the lCd display.
04.
▲ Button: this button will decrease the displayed value in the lCd display
05.
Power Output: totally four out sockets.
06.
Green LED Indicators: indicators will illuminate when corresponding channel activated.
07.
LCD Display: this multifunction display is a monitor for setting or running the unit.
08.
Channel Fuses: each of the four channels is protected by a 6.3a fuse. these fuses prevent
unit from overloading and damaging. Be sure to always replace them with the exact same type fuses.
09.
Power Switch: this switch controls the unit's main power.
10.
Power Cord: Plug this cord into a rated main power supply for your area.
11.
DMX Input: this connector allows the input of dMX control signal.
12.
DMX Output: this connector allows the output of dMX control signal to the next dMX device.
