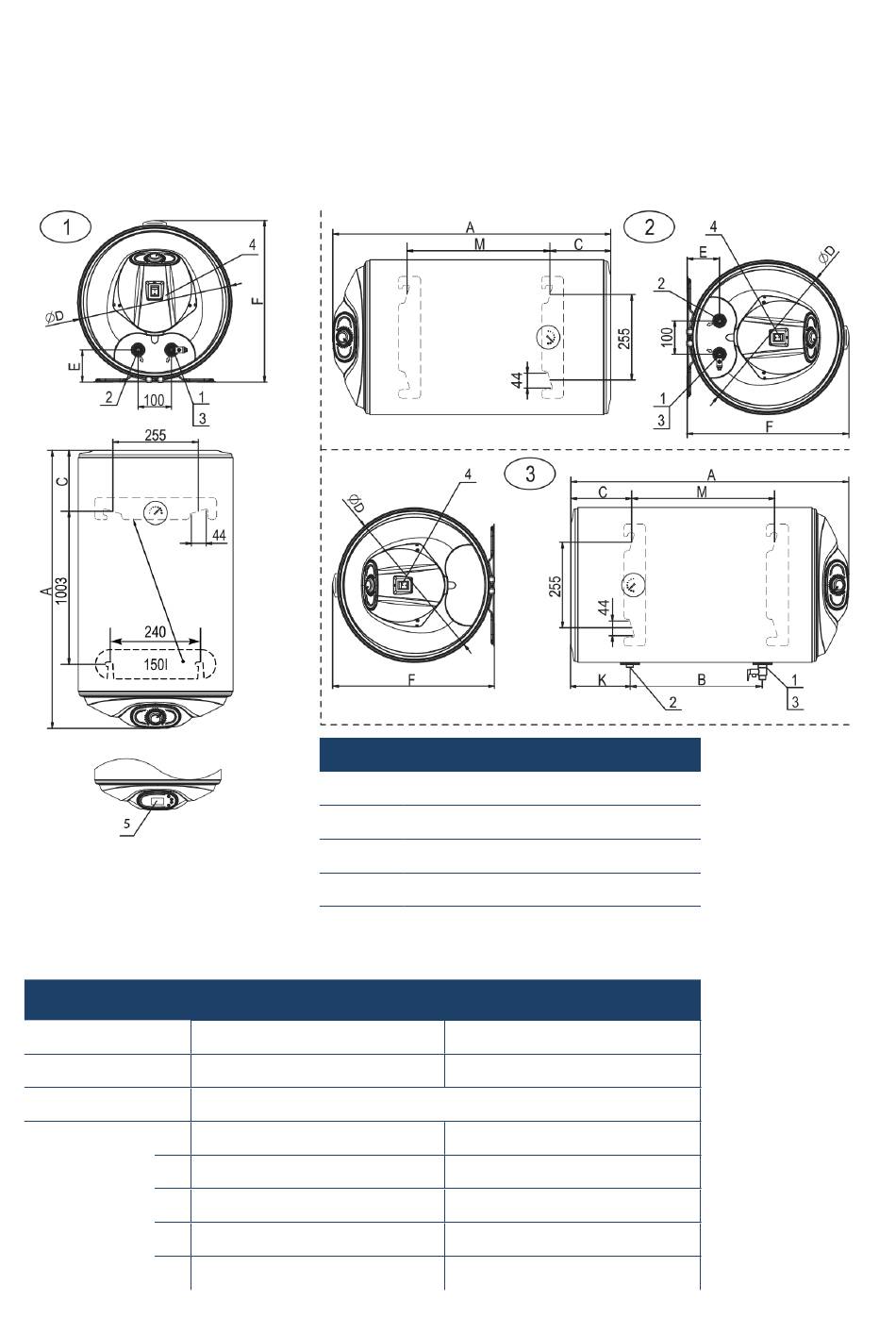

SCHEMATICS OF THE
MANUFACTURER
Model
Volume
Figure
A
C
Dimensions
(mm) D
E
F
DESCRIPTION
1
2
3
4
5
PHOTOVOLTAIC WATER HEATERS
PVB-30-AC
30
560
155
387
80
410
Water inlet
Water outlet
Combined valve
Rotary knob with thermostat
Electronic control
PVB-80-AC
80
1 | 2 |3
835
185
462
96
484
5
