ultraMEDIC ultraFLEX PRO Bedienungsanleitung Seite 18

Transportaufhängung für korbtrage / rettungsmulde, conrest, ultraroll stretcher
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

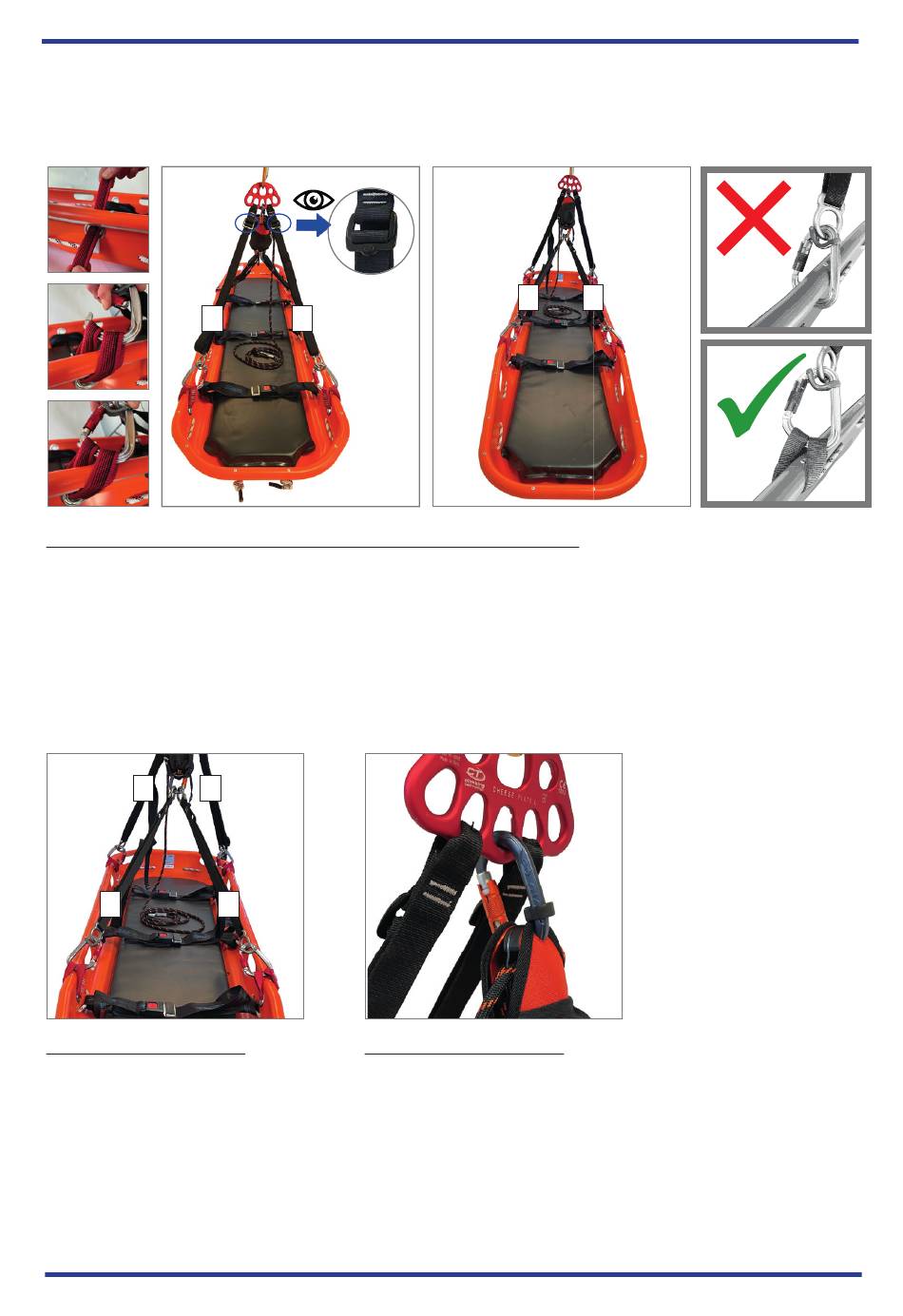

the corresponding side eyelets in the head area of the basket stertcher using the supplied
strap loops. When attaching the carabiners, make sure that the adjustment buckles on the
straps A and B are facing outwards (Fig. 3).
A
Figure 3
Attachment of the loops and the straps to the basket stretcher
3. Attach the carabiners, which originate from the C and D strands of the pulley, to the
corresponding side eyelets at the foot of the basket stretcher using the supplied loops
(Figs. 3, 4). When attaching the carabiners, make sure that the buckles on the C and D
straps are facing outwards (Fig. 3).
A
B
C
Figure 4
Attachment of the straps
on the basket stretcher
4. Bring both strands together over the basket stretcher and hook the pulley carabiner into
the central lower eyelet of the rigging plate (Fig. 5).
5. Hang the central upper eyelet of the rigging plate (anchor point) on the lifting device
(Fig. 6).
16
B
D
Figure 5
Fastening the pulley
on the rigging plate
C
D
