CHARGING THE BATTERY
The following points have to be followed when charging:

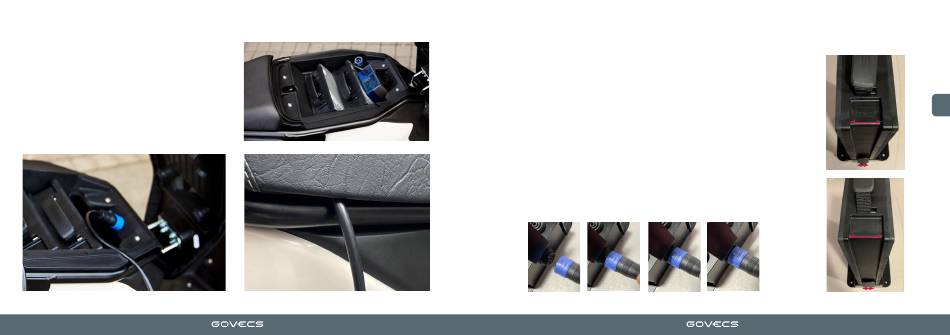

• The cable of the charger can be passed through the groove in
the top plastic (see bottom pictures)� It is a must that the seat
is closed during charging, and the charger has to be placed
outside the scooter during the whole charging process�
• The charger can be positioned in the space between the
frontal battery and the charging connector only for transpor-
tation purposes (see right picture)�
22
CHARGING THE BATTERY
OFF-BOARD CHARGING
The docking station provides the possibility of charging one battery outside the scooter�
Following are the instructions to use it:
1� Identify the docking station and the charger and put it next to each other�
2� Approach the blue Chogori connector of the charger to the side of the docking station and
align the two white arrows, then push it� The blue ring will rotate to the left, keep pushing
until it snaps in, makes a click sound and flips back� When correctly done, the blue ring will
be locked and in an upright position (See pictures below)�
3� Put a battery in the docking station matching the wide side of the battery with the wide side
of the docking station, and the same for the narrow side (See pictures to the right; Narrow
side upper picture and wider side lower picture)�
4� Plug in the charger to an electrical socket� The charging process will start�
Once the charge process is finished you can take the battery from the docking station� Please
avoid to disconnect the blue Chogori connector when the charger is still in the electrical socket
and the battery is on the docking station�
ATTENTION: The docking station is not waterproof� Use it indoors only�
