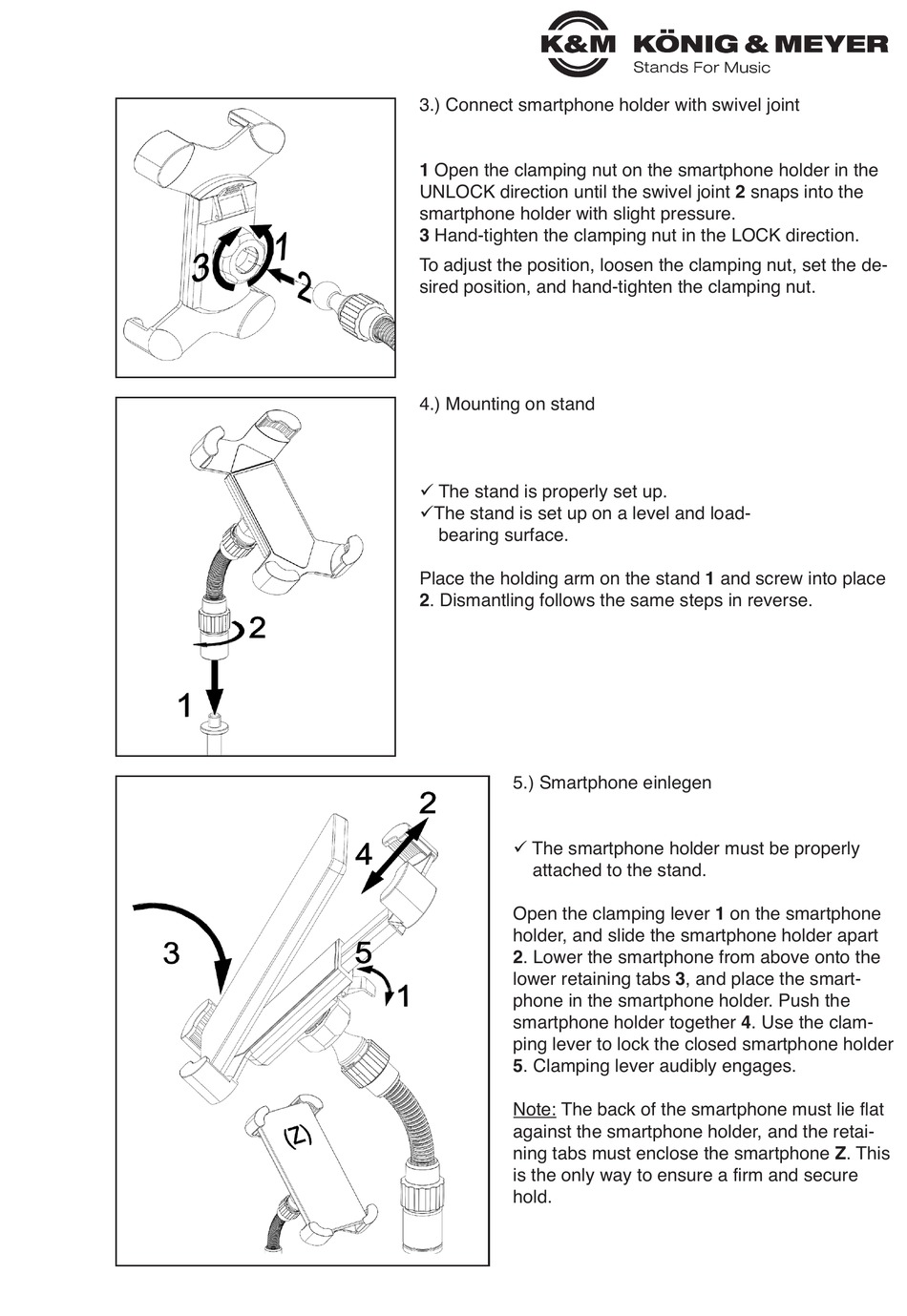

3.) Connect smartphone holder with swivel joint
1 Open the clamping nut on the smartphone holder in the
UNLOCK direction until the swivel joint 2 snaps into the
smartphone holder with slight pressure.
3 Hand-tighten the clamping nut in the LOCK direction.
To adjust the position, loosen the clamping nut, set the de-
sired position, and hand-tighten the clamping nut.
4.) Mounting on stand
 The stand is properly set up.
The stand is set up on a level and load-

bearing surface.
Place the holding arm on the stand 1 and screw into place
2. Dismantling follows the same steps in reverse.
5.) Smartphone einlegen
 The smartphone holder must be properly

attached to the stand.
Open the clamping lever 1 on the smartphone
holder, and slide the smartphone holder apart
2. Lower the smartphone from above onto the
lower retaining tabs 3, and place the smart-
phone in the smartphone holder. Push the
smartphone holder together 4. Use the clam-
ping lever to lock the closed smartphone holder
5. Clamping lever audibly engages.
Note: The back of the smartphone must lie flat
against the smartphone holder, and the retai-
ning tabs must enclose the smartphone Z. This
is the only way to ensure a firm and secure
hold.
