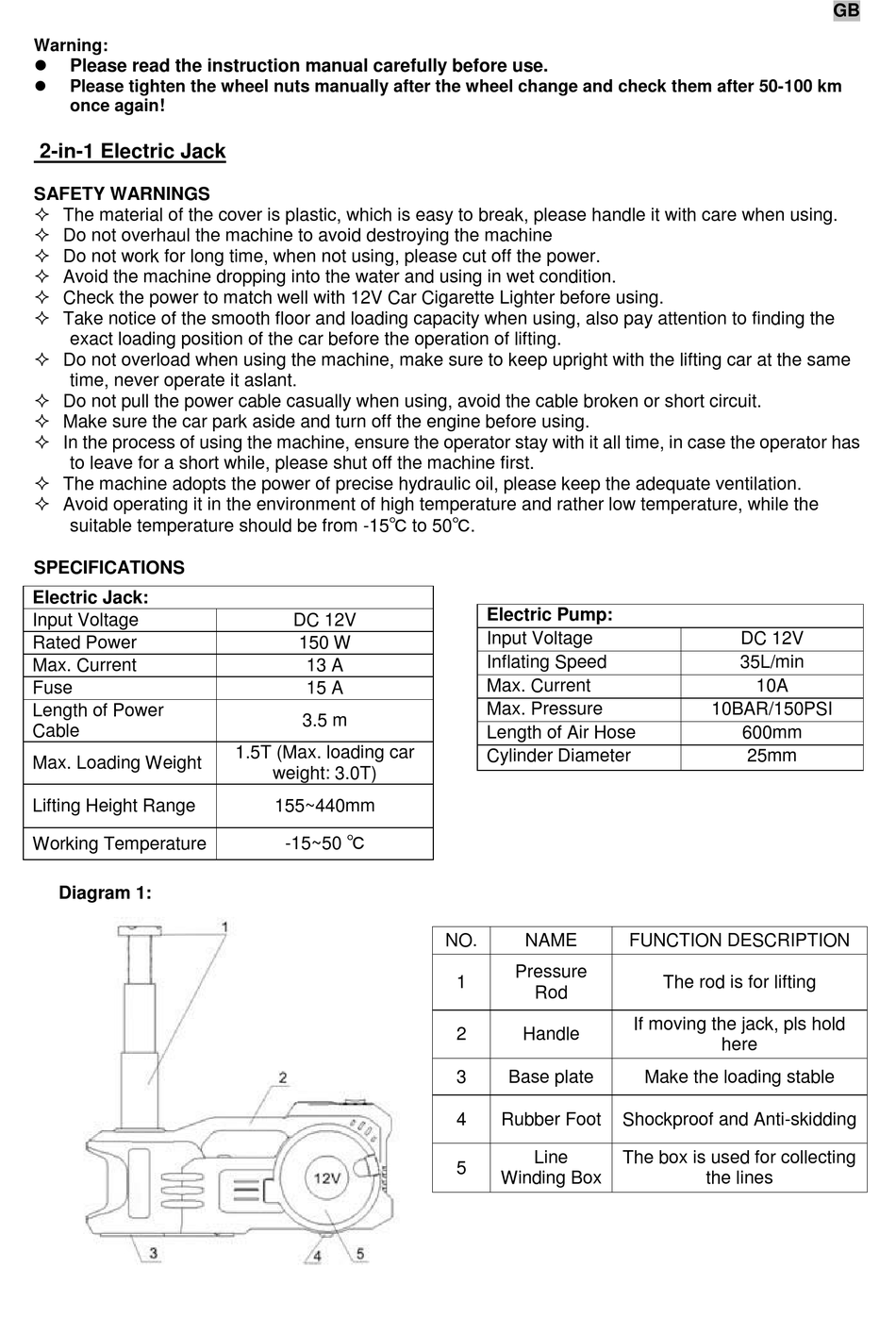

Safety Warnings; Function Description - Profi-Partner 41163 Bedienungsanleitung

Warning:

Please read the instruction manual carefully before use.

Please tighten the wheel nuts manually after the wheel change and check them after 50-100 km
once again!
2-in-1 Electric Jack

SAFETY WARNINGS

 The material of the cover is plastic, which is easy to break, please handle it with care when using.
 Do not overhaul the machine to avoid destroying the machine
 Do not work for long time, when not using, please cut off the power.
 Avoid the machine dropping into the water and using in wet condition.
 Check the power to match well with 12V Car Cigarette Lighter before using.
 Take notice of the smooth floor and loading capacity when using, also pay attention to finding the
exact loading position of the car before the operation of lifting.
 Do not overload when using the machine, make sure to keep upright with the lifting car at the same
time, never operate it aslant.
 Do not pull the power cable casually when using, avoid the cable broken or short circuit.
 Make sure the car park aside and turn off the engine before using.
 In the process of using the machine, ensure the operator stay with it all time, in case the operator has
to leave for a short while, please shut off the machine first.
 The machine adopts the power of precise hydraulic oil, please keep the adequate ventilation.
 Avoid operating it in the environment of high temperature and rather low temperature, while the
suitable temperature should be from -15℃ to 50℃.
SPECIFICATIONS
Electric Jack:
Input Voltage
Rated Power
Max. Current
Fuse
Length of Power
Cable
Max. Loading Weight
Lifting Height Range
Working Temperature
Diagram 1:
DC 12V
150 W
13 A
15 A
3.5 m
1.5T (Max. loading car
weight: 3.0T)
155~440mm
-15~50 ℃
Electric Pump:
Input Voltage
Inflating Speed
Max. Current
Max. Pressure
Length of Air Hose
Cylinder Diameter
NO. NAME
Pressure
1
Rod
2 Handle
3 Base plate
4 Rubber Foot
Line
5
Winding Box
DC 12V
35L/min
10A
10BAR/150PSI
600mm
25mm

FUNCTION DESCRIPTION

The rod is for lifting
If moving the jack, pls hold
here
Make the loading stable
Shockproof and Anti-skidding
The box is used for collecting
the lines
GB
