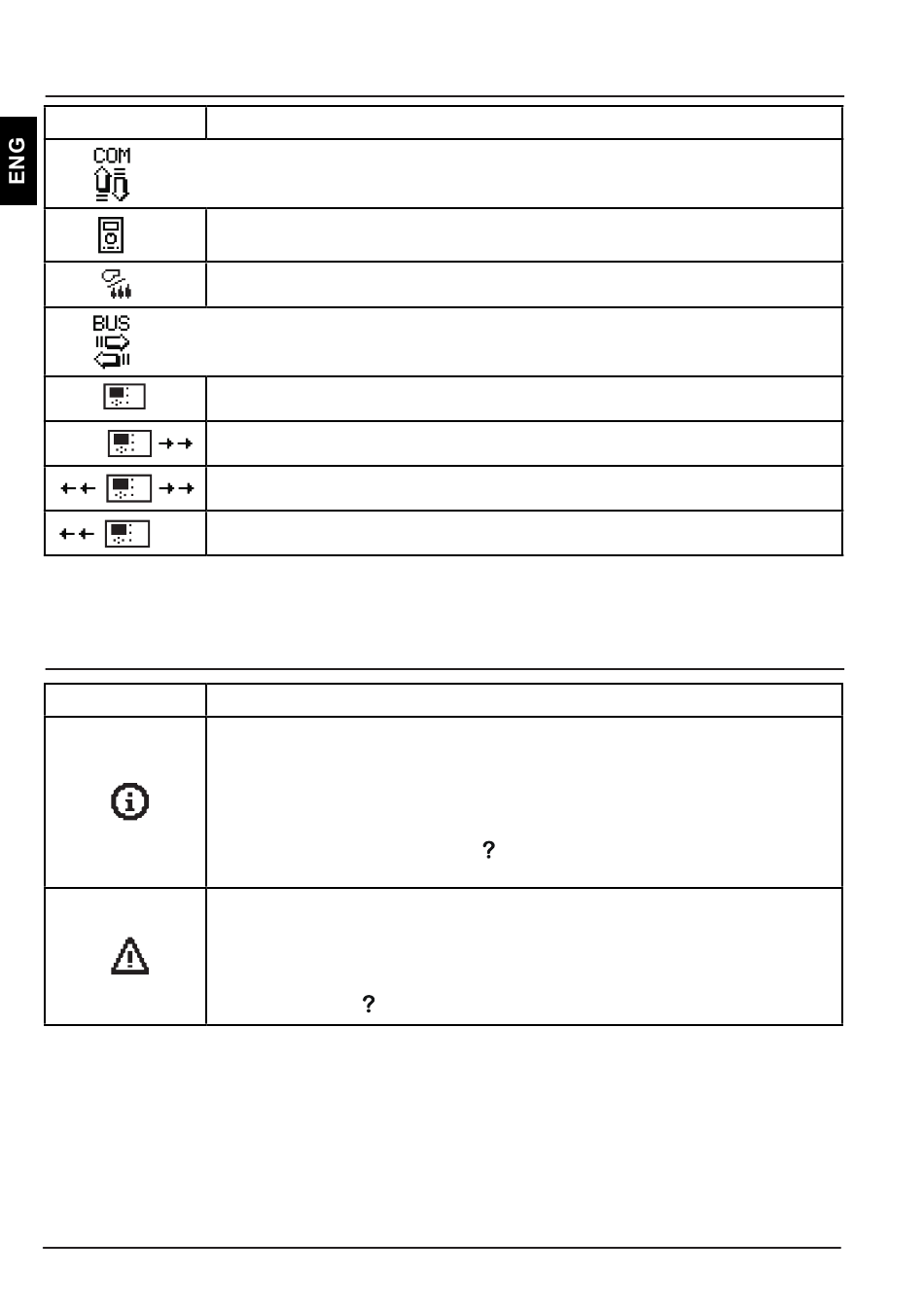

SYMBOLS FOR THE INDICATION OF COMMUNICATION BETWEEN DEVICES

Symbol
Devices connected to communication port com.
State of the controller in bus connection.

SYMBOLS FOR MESSAGES AND WARNINGS

Symbol
User manual
Description
Room unit DD2+ or RCD is connected. The number beside room unit
indicates, whether this is the first or the second room unit.
Burner interface or Junkers/Vaillant inteface is connected.
Standalone controller - not in bus network.
The first controller in bus network.
Intermediate controller in bus network.
The last controller in bus network.
Description
Message
In the event of exceeding the maximum temperature or when a
protection function is switched on, the symbol on display flashes.
When maximum temperature is no longer exceeded or when a
protection function has switched off, a turned on symbol will note the
recent event. By pressing the
retrieved.
Warning
In the event of sensor malfunction, bus network error or com connec-
tion error, the symbol on display flashes. When the error is eliminated
or is no longer present, a turned on symbol will note the recent event.
By pressing the
button, the message review screen is retrieved.
button, the message review screen is
18
