PRODUCT SETUP

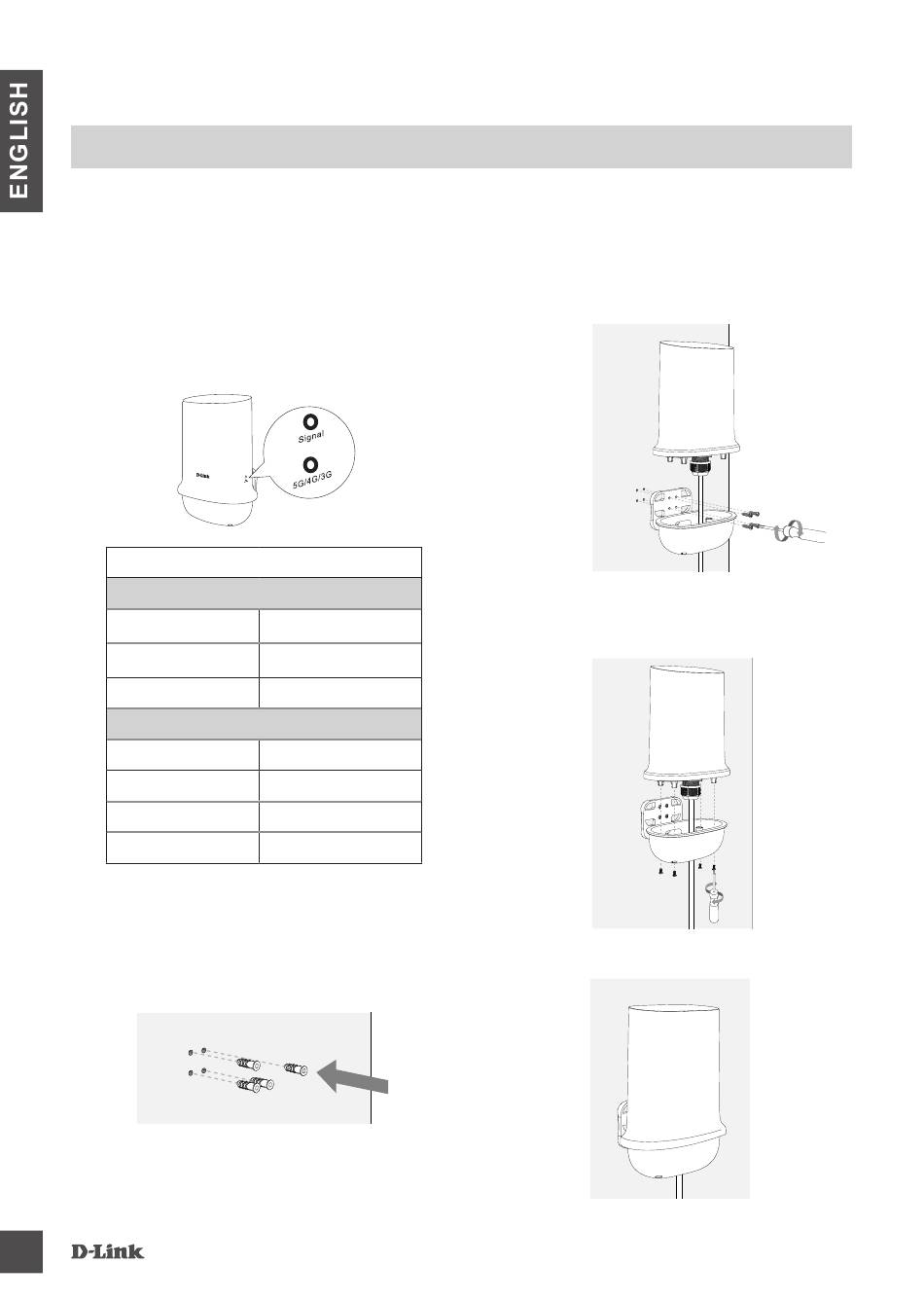

WALL-MOUNT INSTALLATION
1. Follow steps 1-7 above and power on
the DWP-1010. When the LED lights
are on, hold the DWP-1010 against
the desired location on the wall and
adjust position if necessary. When
both LED lights are steady blue, it is
in a desirable location to receive good
signal strength.
LED Indications
Connection type LED (Blue+ Green)
No Signal
2-2
LTE / 3G
5G
Signal strength LED (Red + Blue)
No Signal
Poor signal
Mid Signal
Good Signal
2. After the installation location has
been determined, use the wall-mount
plate to mark and drill the holes in
the wall. Then insert the M6 x 25mm
screw anchors (4 pcs) into the wall.
4
RESET
PoE
SIM
Off
Green Steady on
Blue Steady on
Red Flash
Red Steady on
Blue Flash
Blue Steady on
3. Secure the wall-mount plate and blue
base cover to the wall by using the
M3.5 x 16mm screws (4 pcs). Make
sure the RJ45 cable is going through
2-3
the blue base cover.
WIFI
2-4
4. Secure the DWP-1010 to the wall by
using the M3 x 4mm screws (4 pcs).
2-5
5. Installation is complete.
