Introduction

The Piper J-3 Cub is an American light aircraft that was built
between 1937 and 1947 By the Piper Aircraft Company as an
affordable trainer. The aircraft has a simple, lightweight design
which gives it good low-speed handling properties and short-
field performance. During the WWII, J-3 Cub was designated as
L-4 Grasshopper, used extensively for reconnaissance,
transporting supplies, artillery spotting duties and medical
evacuation of wounded soldiers.
Like its full-sized counterpart, the all-new FMS 1400mm J-3 V3
has excellent short takeoff and landing (STOL) and slow speed
handling characteristics. FMS has dedicated significant amount
of resources in making this aircraft as detailed as possible-
components such as the engine and landing gear, among many
others, are replicated in loving detail. Something worth noting is
that FMS has made scale floats for the Cub as a response to
popular demand from the community.
To mix things up a little, FMS has selected an attractive,
historically accurate red paint scheme for the V3 Cub. Not all
J-3's were yellow!
For pilots who are looking for an easy-to-fly, scale aircraft that
has gentle trainer characteristics, plenty of power and graceful l
ines from the golden-age of flight- the 1400mm FMS J-3 V3 is
all of that, and more.

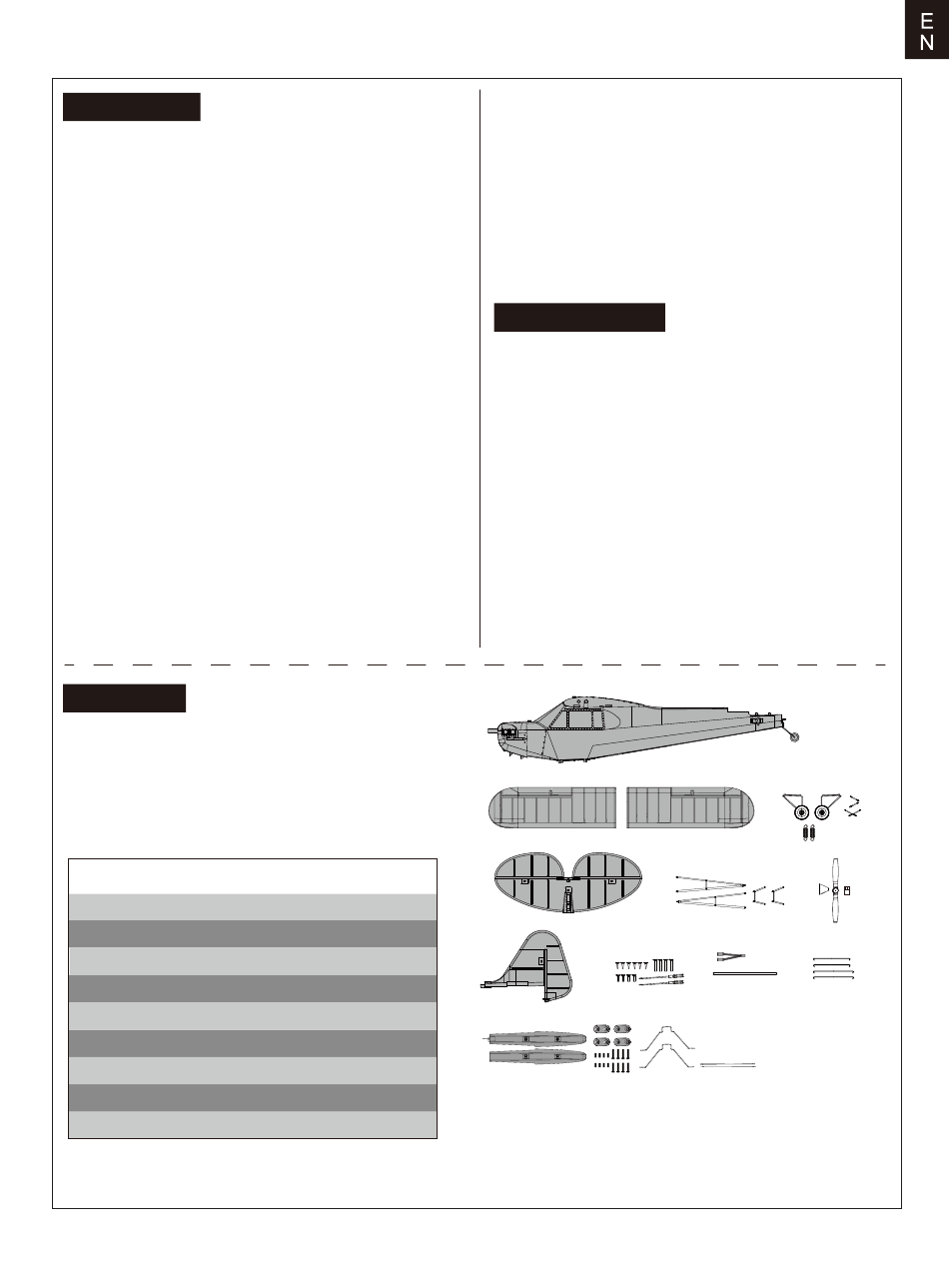

Kit contents
Before assembly, please inspect the contents of the kit. The
photo below details the contents of the kit with labels. If any
parts are missing or defective, please identify the name or
part number (refer to the spare parts list near the end of the
manual) then contact your local shop or email us: support
@fmsmodel.com.
Specifications
Wingspan: 1400mm(55.1in)
Overall length: 900mm(35.4in)
Flying weight: ~ 1320g
Motor size: 3536-KV850
Wing load: 47g/dm²(0.11oz/in²)
Wing area: 28dm²(434sq.in)
ESC: 40A
Servo: 9g Servo x 4
Recommended battery: 11.1V 2200mAh 25C
Features:
• Powerful 3536-850KV motor, Predator 40A ESC
• Highly detailed scale engine and landing gear
• Simple structure for quick assembly
• Durable EPO material
• Optional scale floats
Table of contents
Introduction ·····························································
Kit contents ····· ·························································3
Model assembly
·······················································4
Battery installation
·············································
Receiver diagram
·····
Preflight check ·················
Clevis installation ····················································11
Control horn and servo arm settings
Center of gravity(CG)
Before flying the model
Flying course
·················································· ·········12
Troubleshooting ······················································13
Spare parts list content
A.
B.
C.
D.
H.
K.
A: Fuselage
E: Main landing gear set
B: Main wing set
F: Supporting bar
G: Propeller set
C: Horizontal stabilizer
D: Vertical stabilizer
H: Linkage rods and screws
3
·········································
··································
····· ··························
··············································· 11
······································· ·······12
············································13
E.
F.
G.
J.
I.
I: Pipe and Y cable
J:Tail strut
K:Float set
3
····· ······ 9 ··
······ 9 ··
····· ·· 9
11
