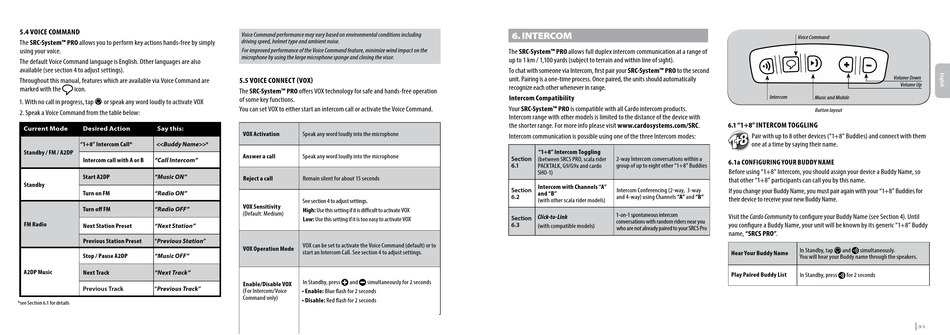

5.4 VOICE COMMAND

The SRC-System™ PRO allows you to perform key actions hands-free by simply
using your voice.
The default Voice Command language is English. Other languages are also
available (see section 4 to adjust settings).
Throughout this manual, features which are available via Voice Command are
marked with the icon.
1. With no call in progress, tap s or speak any word loudly to activate VOX
2. Speak a Voice Command from the table below:
Current Mode Desired Action Say this:
<<Buddy Name>>*
"1+8" Intercom Call*
Standby / FM / A2DP
"Call Intercom"
Intercom call with A or B
Start A2DP "Music ON"
Standby
"Radio ON"
Turn on FM
"Radio OFF"
Turn off FM
FM Radio
Next Station Preset "Next Station"
Previous Station Preset "Previous Station"
Stop / Pause A2DP "Music OFF"
A2DP Music
Next Track "Next Track"
Previous Track "Previous Track"
*see Section 6.1 for details
|
SRCS Pro
30
Voice Command performance may vary based on environmental conditions including
driving speed, helmet type and ambient noise.
For improved performance of the Voice Command feature, minimize wind impact on the
microphone by using the large microphone sponge and closing the visor.

5.5 VOICE CONNECT (VOX)

The SRC-System™ offers VOX technology for safe and hands-free operation
PRO
of some key functions.
You can set VOX to either start an intercom call or activate the Voice Command.
VOX Activation
Speak any word loudly into the microphone
Answer a call Speak any word loudly into the microphone
Reject a call Remain silent for about 15 seconds
See section 4 to adjust settings.
VOX Sensitivity
High: Use this setting if it is difficult to activate VOX
(Default: Medium)
Low: Use this setting if it is too easy to activate VOX
VOX can be set to activate the Voice Command (default) or to
VOX Operation Mode
start an Intercom Call. See section 4 to adjust settings.
+ -
In Standby, press and simultaneously for 2 seconds
Enable/Disable VOX
(For Intercom/Voice
• Enable: Blue flash for 2 seconds
Command only)
• Disable: Red flash for 2 seconds

6. INTERCOM

The SRC-System™ PRO allows full duplex intercom communication at a range of
up to 1 km / 1,100 yards (subject to terrain and within line of sight).
To chat with someone via Intercom, first pair your SRC-System™ PRO to the second
unit. Pairing is a one-time process. Once paired, the units should automatically
recognize each other whenever in range.
Intercom Compatibility
Your SRC-System™ PRO is compatible with all Cardo intercom products.
Intercom range with other models is limited to the distance of the device with
the shorter range. For more info please visit www.cardosystems.com/SRC.
Intercom communication is possible using one of the three Intercom modes:

"1+8" Intercom Toggling

Section 2-way Intercom conversations within a
(between SRCS PRO, scala rider
6.1 PACKTALK, G9/G9x and cardo group of up to eight other "1+8" Buddies
SHO-1)
Intercom with Channels "A"
Section
Intercom Conferencing (2-way, 3-way
and "B"
6.2 and 4-way) using Channels "A" and "B"
(with other scala rider models)
1-on-1 spontaneous intercom
Click-to-Link
Section
conversations with random riders near you
6.3
(with compatible models)
who are not already paired to your SRCS Pro
Voice Command
Volume Down
Volume Up
Intercom
Music and Mobile
Button layout
6.1 "1+8" INTERCOM TOGGLING
Pair with up to 8 other devices ("1+8" Buddies) and connect with them
one at a time by saying their name.
6.1a CONFIGURING YOUR BUDDY NAME
Before using "1+8" Intercom, you should assign your device a Buddy Name, so
that other "1+8" participants can call you by this name.
If you change your Buddy Name, you must pair again with your "1+8" Buddies for
their device to receive your new Buddy Name.
Visit the Cardo Community to configure your Buddy Name (see Section 4). Until
you configure a Buddy Name, your unit will be known by its generic "1+8" Buddy
name, "SRCS PRO".
s v
In Standby, tap and simultaneously.
Hear Your Buddy Name
You will hear your Buddy name through the speakers.
Play Paired Buddy List v
In Standby, press for 2 seconds
SRCS Pro
|
31
