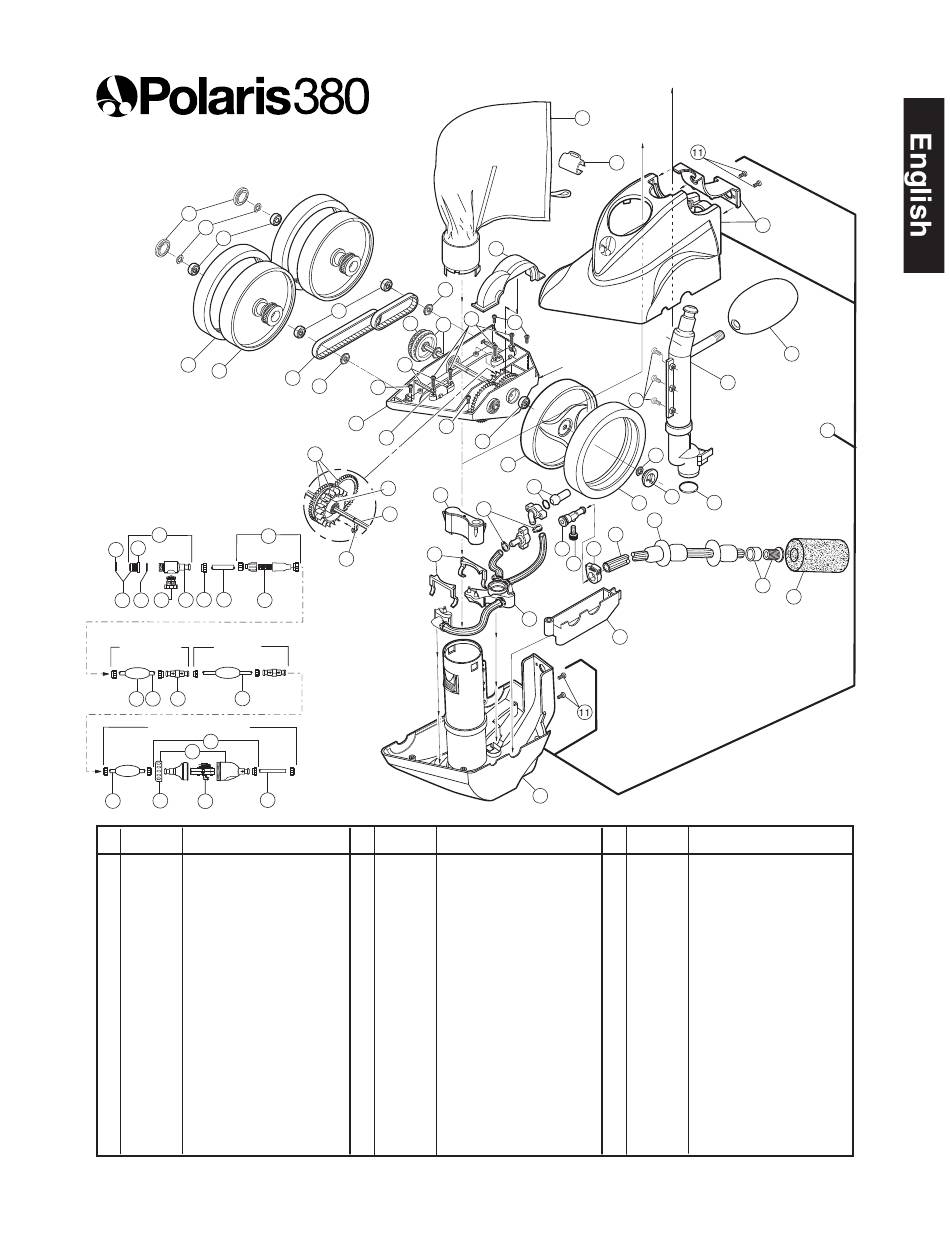

Exploded Parts Diagram
3
4
5
6
7
Shown from
opposite side.
42
49
41
40
Pool
Wall
44 45 46 47 48 50
43
10-Foot
10-Foot
Hose Hose
51 52 53 52
10-foot Leader Hose
55
56
54
54 57
58
No. Part #Description
1 9-100-1021 All-Purpose Zippered Bag*
2 9-100-1152 Housing, Turbine Upper
3 9-100-1114 Hub Cap
4 9-100-5107 E-clip, Stainless Steel
5 9-100-1108 Ball Bearing
6 C10 Tire, MaxTrax ® *
7 9-100-1008 Wheel, Double-side
8 9-100-1017 Belt Kit, Small and Large
9 9-100-7011 Shield, Bearing
10 9-100-1005 Frame
11 9-100-5125 Screw, 8-32 x 1/2" SS
12 9-100-1139 Axle Block Kit, Front & Rear
13 9-100-1010 Belt Divider, Transfer Pulley
14 B25 Orifice Tip with Tip Guard
15 9-100-1007 Trans Pulley/Drive Shaft Assy
16 9-100-5115 Screw, 8-32 x 3/4" SS
17 9-100-5130 Lock Washer, Axle Block
18 9-100-1132 Drive Train Gear Kit with
Turbine Bearing
19 9-100-1103 Turbine Wheel with Bearing
9
5
16
13
15
12
8
9
11
10
11
17
18
19
25
15
27
4
To
The
Polaris
Qty No. Part #Description
1 20 9-100-1116 Wheel, Single-side
1 21 C131 Thrust Jet Kit
3 22 9-100-7008 Sweep Hose Barb Complete
10 23 B20 Adjustment Screw, Sweep Hose 1
8 24 B15 Sweep Hose Attachment Clamp 1
3 25 9-100-9004 Base Weight
2 26 9-100-7170 Hose Clamp for WMS
1 27 9-100-7009 Jet Retainer
3 28 9-100-7010 Water Management (WMS)
1 29 9-100-1155 Housing, Turbine Lower
11 30 9-100-3105 Sweep Hose Scrubber*
1 31 9-100-5132 O-Ring, Feed Pipe
1 32 9-100-7030 Top and Base Assembly
1 33 9-100-7003 Feed Pipe/Timer Blank Assy
1 34 A20 Float, Head
4 35 B5 Sweep Hose Complete*
4 36 B10 Wear Rings*
37 9-100-1018 Bag Collar
1 38 9-100-1240 Top Housing
1 39 9-100-7026 Base Assembly
www.polarispool.com
1
37
2
11
Serial Number
11
5
4
20
21
6
26
36
35
22 24
23
28
29
39
Qty No. Part
1 40 10-112-00
1 41 6-500-00
1 42 9-100-9001 UWF Connector Assembly
43 10-108-00
44 6-505-00
1 45 9-100-9002 Pressure Relief Valve, Black
6 46 D29
2 47 D15
1 48 **
1 49 48-080
1 50 48-222
1 51 D10
1 52 D45
1 53 D20
1 54 D50
1 55 G52
8 56 G54
1 57 G57
1 58 G53
1
38
34
33
32
3
31
14
30
#Description Qty
Restrictor Disks. Red and Blue 2
Universal Wall Fitting (UWF) 1
1
UWF Restrictor Kit 1
O-Ring, UWF/QD 1
1
Quick Disconnect, UWF 1
Hose Nut 10
Adapter Hose, 8-1/2" 1
In-Line Filter Assembly 1
Screen, In-Line Filter 1
Float, Feed Hose 9
Feed Hose, 10 Ft 2
Swivel, Ball Bearing 2
Feed Hose, Leader, 10 Ft 1
Back-up Valve Kit 1
Case Kit for G52 1
Collar, Back-up Valve 1
Mechanism for G52 1
*Wear items not covered by warranty.
