Quick Installation Instructions

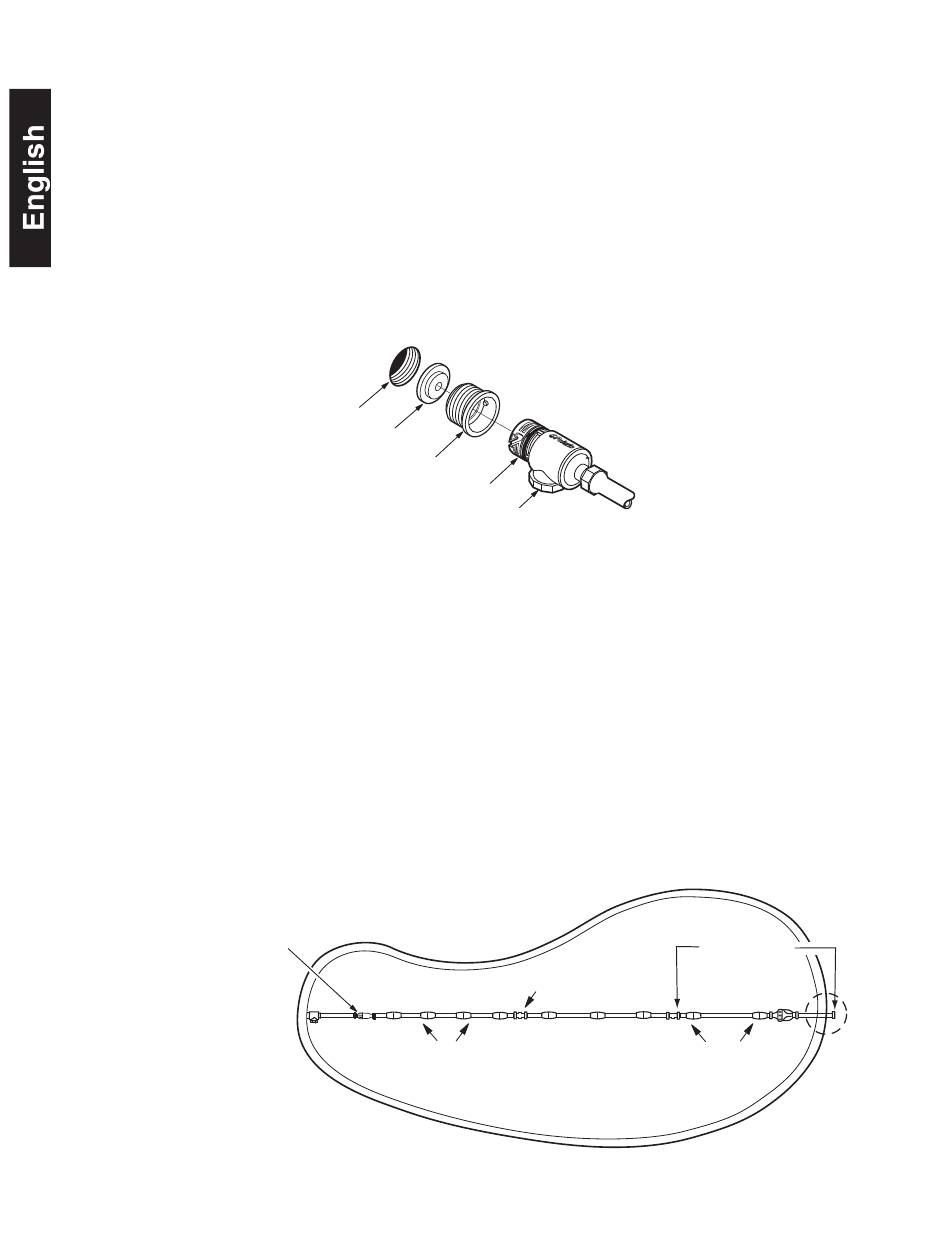

Install the Universal Wall Fitting
1
Installs in minutes on pools with a dedicated cleaner return line and a threaded 1-1/2" female pipe fitting.
1. Turn on the filtration pump and flush out the plumbing line.Turn pump off.
2. Remove the UWF from the Quick Disconnect and screw the UWF with the blue restrictor disk into the
return opening.
3. Turn the Quick Disconnect clockwise into the UWF and pull away to secure.
2
Adjust Feed Hose To Fit Pool Length
Measure the deepest part of the pool. Cut leader hose, from end that attaches to feed hose, so length is equal to
the greatest depth of the pool.
Attach leader hose to feed hose and connect hose to the pool wall at the return line. Extend hose to farthest
point of pool. The hose end must be within 6" – longer or shorter – of the farthest point. See dotted circle.
Hose too long? Separate hose at center swivel. Cut equal amounts of the overage from each 10-foot feed
hose section.
Hose too short? Buy an additional feed hose section (part #9-100-3104), one swivel (part #D20) and two
hose nuts (part #D15) from an authorized Polaris dealer.
After adjusting hose, position hose floats as shown.
In-Line
Filter
Return
Line
Return Line
Restrictor Disk
Universal Wall Fitting
Quick Disconnect
Pressure Relief Valve
Feed Hose Floats
1.5 to 3' apart
www.polarispool.com
Leader Hose
Length = Max. Depth
Center
Swivel
Leader Hose Floats
2-3' apart
