Wiring Diagram - SISER TS-ONE Gebrauchsanweisung

TS
ONE

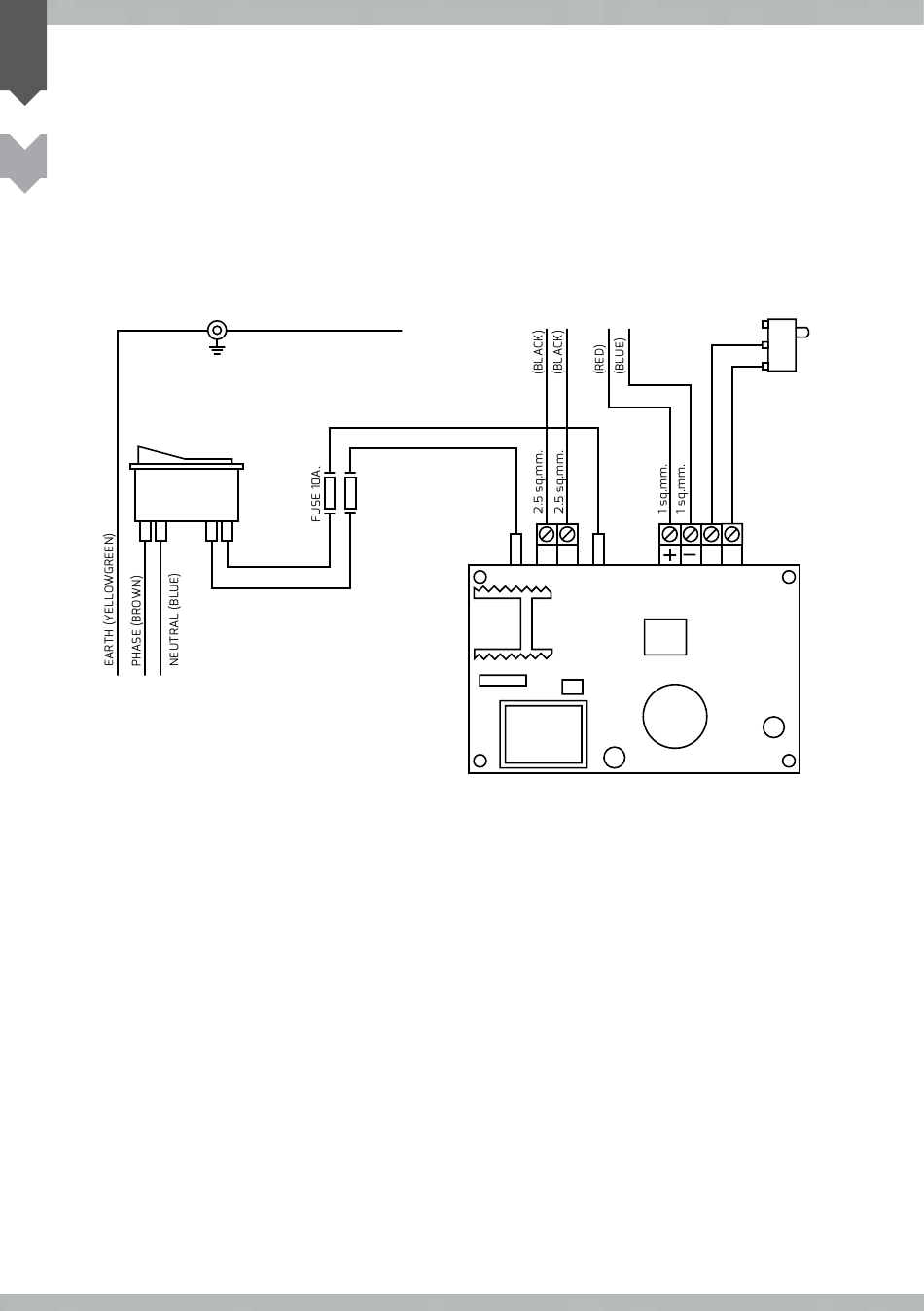

8 WIRING DIAGRAM

8
Mod. A diagram
EN
SCREW ONTO CIRCUIT BOARD
HOLDER BASE
MAIN CIRCUIT
BREAKER
POSSIBLE CAUSES OF ERROR
Error 111: onnector or thermocouple are not wired.
The plate can't heat up: resistance is not linked.
Electronic board is out of order.
44
EARTH
TO CONNECT TO COVER
AND ILME SWITCH
CROSS-SECT. 2.5 SQ.MM.
2.5 sq.mm. cross-sect.
2.5 sq.mm. cross-sect.
230 AC (BLACK)
230 AC (BLACK)
TS-One Manual for use and maintenance
This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
Mod. PRD 20/3 - Last updating 02/2018
TO ILME 6 POLE SWITCH
6 3 4 1
HEATING ELEMENT PROBE
MICROSWITCH
